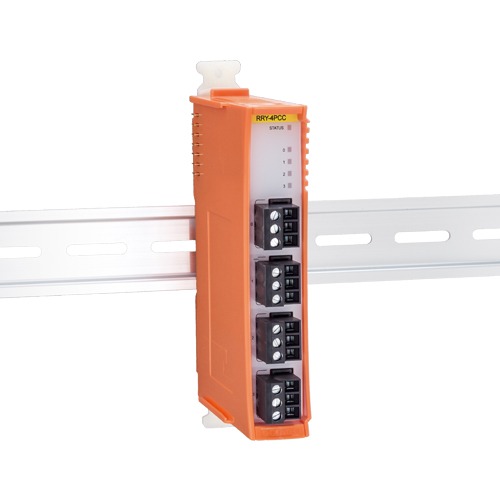

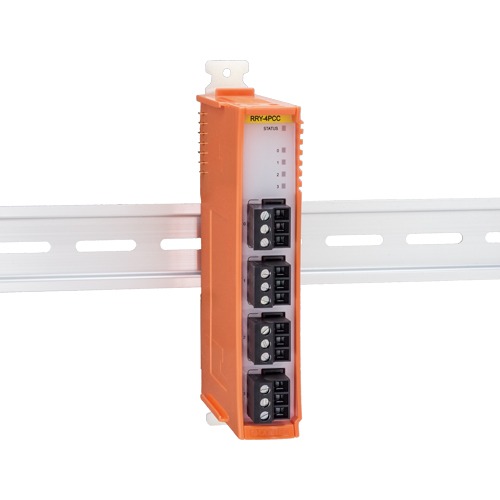

CPS-RRY-4PCC_img1CPS-RRY-4PCC_img1

CPS-RRY-4PCC

  • Relay outputs (Form C) with independent common
  • Relay isolation
  • Compact Design
  • Adaptable to a wide range of temperature between -20 and +60°C.
  • Installation easy with two pieces of terminal support and DIN rail
  • Equipped with the LED for an operation check

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPS-RRY-4PCC Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a module with a function of relay output interface to add to the configurable type of our controller. It contains four channels of relay outputs (Form C) with independent common.

    • Relay outputs (Form C) with independent common
      • This product has four channels of relay outputs (Form C) with independent common. Independent common terminal provided per channel, capable of supporting a different external power supply. High-capacity output rating is designed to be a maximum of 6A 240VAC, 5A 24VDC per channel.
    • Relay isolation
      • As bus is isolated from the output interfaces by relays, this product has excellent noise performance.
    • Compact Design
      • Compact design, 25.2 (W) x 94.7(D) x 124.8(H) mm, features flexibility in installation.
    • Adaptable to a wide range of temperature between -20 and +60°C.
      • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
    • Installation easy with two pieces of terminal support and DIN rail
      • You can remove a terminal connector without a screwdriver so that it can shorten the time of the replacement. As the product can be not only mounted on DIN rail, but also is removable along the side rails, replacing is simple and easy as well.
    • Equipped with the LED for an operation check
      • The product has the LED for an operation check, which helps you visually confirm ON/OFF of the relay outputs.

    See more details of M2M/IoT Solution CONPROSYS Series

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS I/O Module
    Bus Specification CONPROSYS stack bus
    Size CONPROSYS 1U
    Used Connector 4x 5.08mm-pitch 3-pin 2-piece terminal block
    Digital I/O
    Input Channels –
    Output Channels 4-ch
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) ON: 20msec (max.) / OFF: 20msec (max.)
    Operating Voltage (Input) –
    Operating Voltage (Output) ~ 240VAC / ~ 24VDC
    Input Circuit –
    Output Circuit Relay output (SPDT type-C contact)
    Built-in Power Supply –
    Supported OS
    Supported OS –
    • *The supported OS depends on connected controllers (CPS-MCS341, CPS-PCS341, CPS-BXC200 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPS-RRY-4PCC Relay output CONPROSYS I/O module 4ch ( – 240VAC / – 24VDC)
    • CE marking
    • FCC compliant
    • UL
    • VCCI
    Options
    Coupler module
    Item Item Name
    CPS-ECS341-1-011 CONPROSYS Remote I/O – Communication Coupler / EtherCAT Slave / 2x LAN
    Controller unit
    Item Item Name
    CPS-MCS341-DS1-111 CONPROSYS M2M Controller – Configurable Type / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MCS341-DS1-131 CONPROSYS M2M Controller – Configurable Type (FANUC MT-LINKi enabled) / OPC UA / MTConnect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MCS341G-DS1-130 CONPROSYS M2M Controller – Configurable Type / 3G WAN (Japan only) / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MGS341-DS1-131 CONPROSYS M2M Gateway – Stackable Type CPU Module / OPC UA / MT connect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MGS341G5-DS1-130 CONPROSYS M2M Gateway – Stackable Type CPU Module / 4G LTE / OPC UA / 2x LAN / 4x DI / 4x DO / 1x RS-232C
    CPS-PCS341EC-DS1-1201 CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / EtherCAT Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-PCS341MB-DS1-1201 CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / Modbus Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    Development Support Tools
    Item Item Name
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
