CPS-AI-1608ALI_img1CPS-AI-1608ALI_img1

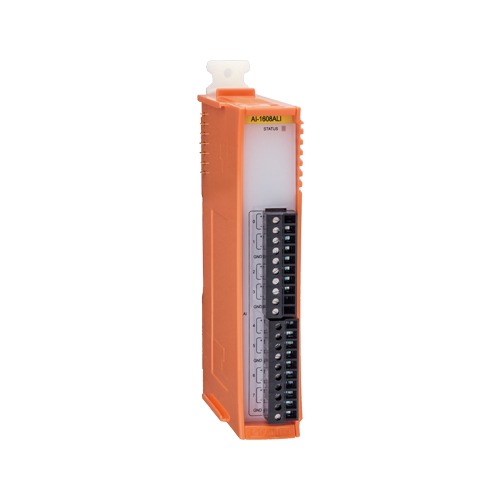

CPS-AI-1608ALI

  • Bus-isolated analog input module providing highly accurate measurement
  • Compact Design
  • Adaptable to a wide range of temperature between -20 and 60°C
  • Installation easy with two pieces of terminal support and DIN rail

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPS-AI-1608ALI Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an extension module with analog input interface and operates along with the CPU module configurable type controller of our CONPROSYS series. It has 8channels of analog input per module. This product is in compliant with the following standards: CE, FCC, UL and VCCI.

    • Bus-isolated analog input module providing highly accurate measurement
      • This product contains bus-isolated analog input (16bit, 8ch) that measures with a high degree of accuracy. It supports differential input and is capable of precise measurement of voltage with potential differences.CPS-AI-1608ALI features the function of the analog current input (16bit, 8ch).
    • Compact Design
      • Compact design, 25.2 (W) x 94.7(D) x 124.8(H) mm, features flexibility in installation.
    • Adaptable to a wide range of temperature between -20 and 60°C
      • The product is capable of operating in the temperature between -20 and 60°C. It can be installed in the various environments.

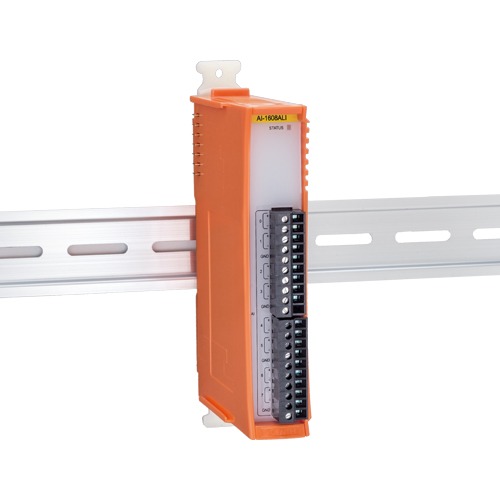

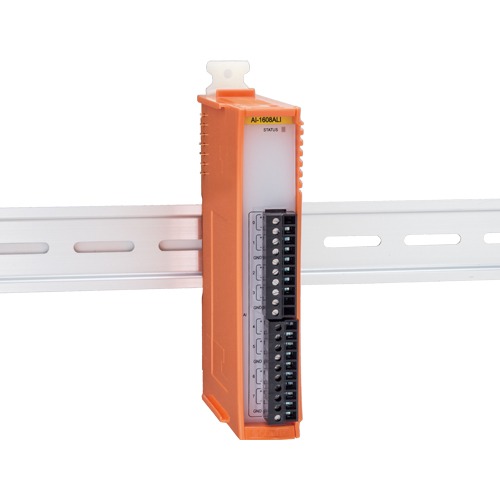

    • Installation easy with two pieces of terminal support and DIN rail
      • You can remove a terminal connector without a screwdriver so that it can shorten the time of the replacement. As the product can be not only mounted on DIN rail, but also is removable along the side rails, replacing is simple and easy as well.

    See more details of M2M/IoT Solution CONPROSYS Series

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS I/O Module
    Bus Specification CONPROSYS stack bus
    Size CONPROSYS 1U
    Used Connector 2x 3.81mm-pitch 10-pin 2-piece terminal block
    Analog I/O
    Input Channels Differential 8-ch
    Input Range 0 to 20mA
    ADC Resolution 16-bit
    Sampling Rate 20μsec/ch (max.)
    Input Buffer Memory –
    Output Channels –
    Output Range –
    DAC Resolution –
    Update rate –
    Output Buffer Memory –
    Digital I/O
    Input Channels –
    Output Channels –
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) –
    Operating Voltage (Input) –
    Operating Voltage (Output) –
    Input Circuit –
    Output Circuit –
    Built-in Power Supply –
    Supported OS
    Supported OS –
    • *The supported OS depends on connected controllers (CPS-MCS341, CPS-PCS341, CPS-BXC200 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPS-AI-1608ALI Analog Input CONPROSYS I/O Module / 8ch(16bit 50ks/s) / Bus Isolation
    • CE marking
    • FCC compliant
    • UL
    • VCCI
    Options
    Coupler module
    Item Item Name
    CPS-ECS341-1-011 CONPROSYS Remote I/O – Communication Coupler / EtherCAT Slave / 2x LAN
    Controller unit
    Item Item Name
    CPS-MCS341-DS1-111 CONPROSYS M2M Controller – Configurable Type / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MCS341-DS1-131 CONPROSYS M2M Controller – Configurable Type (FANUC MT-LINKi enabled) / OPC UA / MTConnect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MCS341G-DS1-130 CONPROSYS M2M Controller – Configurable Type / 3G WAN (Japan only) / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MGS341-DS1-131 CONPROSYS M2M Gateway – Stackable Type CPU Module / OPC UA / MT connect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MGS341G5-DS1-130 CONPROSYS M2M Gateway – Stackable Type CPU Module / 4G LTE / OPC UA / 2x LAN / 4x DI / 4x DO / 1x RS-232C
    CPS-PCS341EC-DS1-1201 CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / EtherCAT Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-PCS341MB-DS1-1201 CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / Modbus Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    Device Drivers
    Item Item Name
    API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
    Development Support Tools
    Item Item Name
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
