CPS-SSI-4P_img1CPS-SSI-4P_img1

CPS-SSI-4P

  • Platinum resistance thermometer compliant with IEC/JIS standard
  • Compact Design
  • Adaptable to a wide range of temperature between -20 and +60°C
  • Installation easy with two pieces of terminal support and DIN rail
  • Equipped with the LED for an operation check
  • No electrolytic capacitor

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPS-SSI-4P Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an extension module to collect temperature data with a platinum resistance thermometer of Pt100, and operates along with the CPU module stack type controller of our CONPROSYS series. Up to four channel temperature can be measured by one module.

    • Platinum resistance thermometer compliant with IEC/JIS standard
      • Platinum resistance thermometer compliant with IEC/JIS standard – You can use the platinum resistance thermometer (Pt100, JPt100) that is comply with IEC/JIS standard. Allowing connection with the platinum resistance thermometer through Three-wire or Four-wire
    • Compact Design
      • Compact design, 25.2 (W) x 94.7(D) x 124.8(H) mm, features flexibility in installation.
    • Adaptable to a wide range of temperature between -20 and +60°C
      • Adaptable to a wide range of temperature between -20 and +60°C – The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.

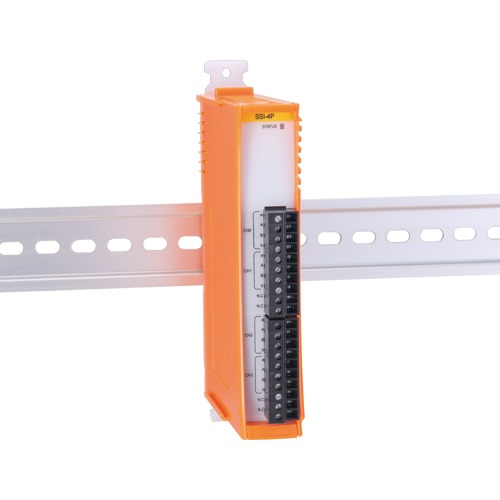

    • Installation easy with two pieces of terminal support and DIN rail
      • Installation easy with two pieces of terminal support and DIN rail – You can remove a terminal connector without a screwdriver so that it can shorten the time of the replacement. As the product can be not only mounted on DIN rail, but also be removable along the side rails. Replacing is simple and easy.
    • Equipped with the LED for an operation check
      • Equipped with the LED for an operation check – The product has the LED for an operation check, which helps you visually confirm the communication status of each interface.
    • No electrolytic capacitor
      • No electrolytic capacitor – Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.

    See more details of M2M/IoT Solution CONPROSYS Series

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS I/O Module
    Bus Specification CONPROSYS stack bus
    Size CONPROSYS 1U
    Used Connector 2x 3.81mm-pitch 10-pin 2-piece terminal block
    Sensor Input
    Type RTD
    Input Channels Differential 4-ch
    Compatible Sensor Pt100
    ADC Resolution 0.01°C
    Sampling Rate 170msec/ch
    Digital I/O
    Input Channels –
    Output Channels –
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) –
    Operating Voltage (Input) –
    Operating Voltage (Output) –
    Input Circuit –
    Output Circuit –
    Built-in Power Supply –
    Counter
    Number of Channels –
    Counting System –
    Response speed –
    Supported OS
    Supported OS –
    • *The supported OS depends on connected controllers (CPS-MCS341 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPS-SSI-4P Pt100 Temperature Sensor Input CONPROSYS I/O Module / 4ch(0.01°C 5s/s) / Bus Isolation
    • CE marking
    • FCC compliant
    • UL
    • VCCI
    Options
    Coupler module
    Item Item Name
    CPS-ECS341-1-011 CONPROSYS Remote I/O – Communication Coupler / EtherCAT Slave / 2x LAN
    Controller unit
    Item Item Name
    CPS-MCS341-DS1-111 CONPROSYS M2M Controller – Configurable Type / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MCS341-DS1-131 CONPROSYS M2M Controller – Configurable Type (FANUC MT-LINKi enabled) / OPC UA / MTConnect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MCS341G-DS1-130 CONPROSYS M2M Controller – Configurable Type / 3G WAN (Japan only) / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MGS341-DS1-131 CONPROSYS M2M Gateway – Stackable Type CPU Module / OPC UA / MT connect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MGS341G5-DS1-130 CONPROSYS M2M Gateway – Stackable Type CPU Module / 4G LTE / OPC UA / 2x LAN / 4x DI / 4x DO / 1x RS-232C
    CPS-PCS341EC-DS1-1201 CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / EtherCAT Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-PCS341MB-DS1-1201 CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / Modbus Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
