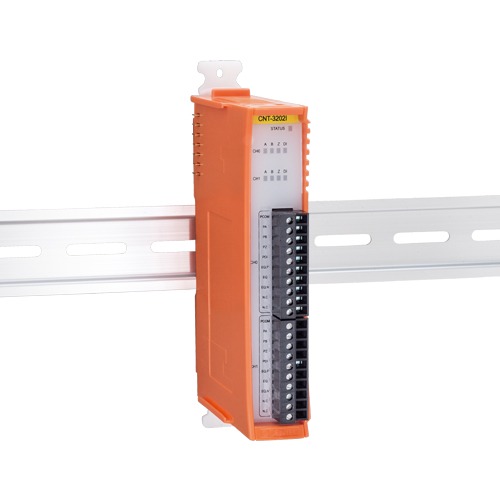

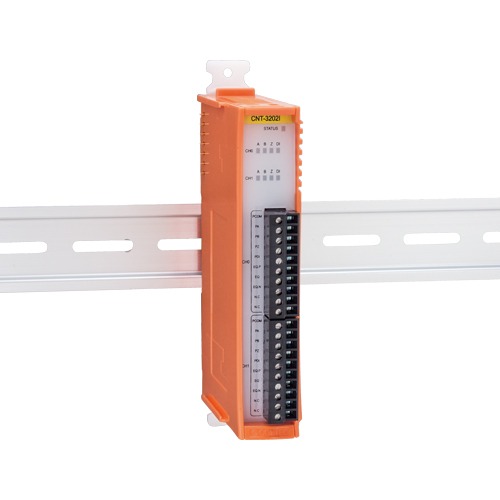

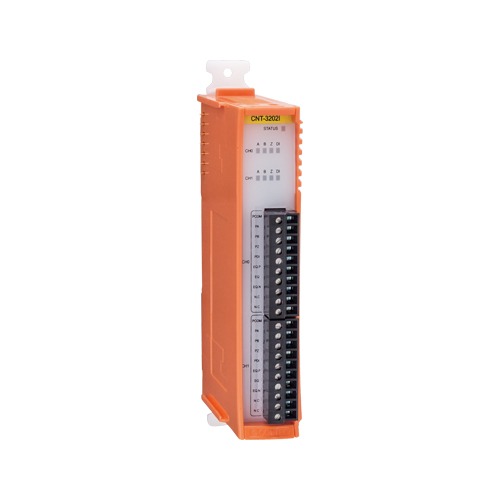

CPS-CNT-3202I

  • The product can count two-phase signals
  • It has an optocoupler isolated input whose response frequency is 500kHz.
  • Interrupt, Output signal
  • Digital filter to prevent input signals from carrying noise or a chattering.
  • Output circuits include zener diodes for surge voltage protection.
  • Equipped with the LED for an operation check

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPS-CNT-3202I Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an extension module that adds the interface, which counts input pulse signals from external devices, to the configurable controller of our CONPROSYS series. It has two channels of 32-bit up/down counters, allowing external devices such as a rotary encoder and a linear scale to be connected.

    • The product can count two-phase signals
      • It can count two-phase signals and single-phase signal, which can be outputs of some rotary encoders and linear scales. It is equipped with two channels of 32-bit up/down counters.
    • It has an optocoupler isolated input whose response frequency is 500kHz.
      • It has an optocoupler isolated input whose response frequency is 500 kHz.
    • Interrupt, Output signal
      • Each channel can generate an interrupt request signal and a one-pulse output signal when the count data matches a pre-specified value.
    • Digital filter to prevent input signals from carrying noise or a chattering.
      • It has a digital filter to prevent input signals from carrying noise or a chattering. All input terminals can be set with a digital filter by software command.
    • Output circuits include zener diodes for surge voltage protection.
      • Zener diodes are connected to the output circuits to protect against surge voltages.
    • Equipped with the LED for an operation check
      • It has the LED for an operation check, which helps you visually confirm the presence of signal inputs.

    See more details of M2M/IoT Solution CONPROSYS Series

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS I/O Module
    Bus Specification CONPROSYS stack bus
    Size CONPROSYS 1U
    Used Connector 2x 3.81mm-pitch 10-pin 2-piece terminal block
    Counter
    Number of Channels 2-ch
    Counting System 32-bit Up/Down count
    Response speed 500KHz
    Supported OS
    Supported OS –
    • *The supported OS depends on connected controllers (CPS-MCS341, CPS-PCS341, CPS-BXC200 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPS-CNT-3202I Counter CONPROSYS I/O module 2ch (32bit Up/Down count 500kHz) / Incremental encoder interface / Isolated
    • CE marking
    • FCC compliant
    • UL
    • VCCI
    Options
    Coupler module
    Item Item Name
    CPS-ECS341-1-011 CONPROSYS Remote I/O – Communication Coupler / EtherCAT Slave / 2x LAN
    Controller unit
    Item Item Name
    CPS-MCS341-DS1-111 CONPROSYS M2M Controller – Configurable Type / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MCS341-DS1-131 CONPROSYS M2M Controller – Configurable Type (FANUC MT-LINKi enabled) / OPC UA / MTConnect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MCS341G-DS1-130 CONPROSYS M2M Controller – Configurable Type / 3G WAN (Japan only) / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MGS341-DS1-131 CONPROSYS M2M Gateway – Stackable Type CPU Module / OPC UA / MT connect / CNC / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-MGS341G5-DS1-130 CONPROSYS M2M Gateway – Stackable Type CPU Module / 4G LTE / OPC UA / 2x LAN / 4x DI / 4x DO / 1x RS-232C
    CPS-PCS341EC-DS1-1201 CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / EtherCAT Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    CPS-PCS341MB-DS1-1201 CONPROSYS PAC Series – Configurable Type (IEC 61131-3 CODESYS) / Modbus Master / OPC UA / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
    Development Support Tools
    Item Item Name
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
