DAQ-EC-DIO_img1DAQ-EC-DIO_img1

DAQ-EC-DIO

  • Supports Edgecross basic software
  • Collection Function
  • Read Function
  • Write Function
Request Quote


    Email Verification Code (required)



    SKU: DAQ-EC-DIO Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

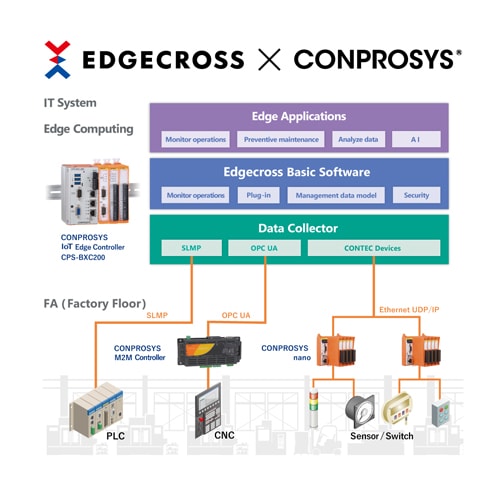

    A data collector that enables Contec digital I/O devices to be used in Edgecross basic software.By using this Data Collector, the collection function, read function, and write function can be used for compatible digital I/O devices.

    • Supports Edgecross basic software
      • Edgecross is a standard and open platform that transcends the boundaries of companies and industries that promote the IoT of manufacturing sites. The middleware “CONTEC Data Collector for Digital I/O” makes it possible to utilize our abundant digital I/O devices on the Edgecross platform.
    • Collection Function
      • Input from the specified port or bit of the device at the set time interval. *1The access unit can be selected from bit and byte.You can set the digital filter function. *2
    • Read Function
      • Input from the specified port or bit of the device at the timing requested by the Edgecross basic software.The access unit can be selected from bit and byte.You can set the digital filter function. *2
    • Write Function
      • Output the specified data to the specified port or bit of the device at the timing requested by the Edgecross basic software. *3The access unit can be selected from bit and byte.
        • *1The device must have input function.
        • *2The device must have digital filter function.
        • *3The device must have output function.

    Specifications

    Specifications
    Software Development Kit
    Type –
    Supported Development Environment
    Supported Development Environment –
    Supported OS
    Supported OS Windows 10 (64-bit)
    Supported Series
    Supported Series CONPROSYS; CONPROSYS nano
    Supported Controllers
    Model
    IoT Edge Controller
    		 CPS-BXC200 – –
    Remote I/O Communication Coupler
    		 CPSN-MCB271-S1-041 CPSN-MCB271-1-041 –
    Supported Devices (Digital I/O)
    Model
    CONPROSYS
    		 CPS-DIO-0808L CPS-DIO-0808BL CPS-DIO-0808RL
    CPS-RRY-4PCC CPS-DI-16L CPS-DI-16RL
    CPS-DO-16L CPS-DO-16RL –
    CONPROSYS nano
    		 CPSN-DI-08BL CPSN-DI-08L CPSN-DI-16BCL
    CPSN-DO-08BL CPSN-DO-08L CPSN-DO-08RL
    CPSN-DO-08BRL – –
    • *It can be used in combination with the IoT edge controller＋ CONPROSYS I/O modules, or the remote I/O communication coupler＋CONPROSYS nano I/O modules.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DAQ-EC-DIO CONTEC Data Collector for Digital I/O

      –

      • *This library / middleware does not work alone. It is necessary to install an “Edgecross basic software for Windows” in advance. (Japan Only)
      • *Please download the installer of this library / middleware from here.
      Options
      Embedded Computer
      Item Item Name
      CPS-BXC200 CONPROSYS IoT Edge Controller BXC200 – DIN Rail Mountable/ Trellix Security / Atom x7-E3950 (Apollo Lake SoC) / 3x GbE / CPS Bus / DC Power Supply
