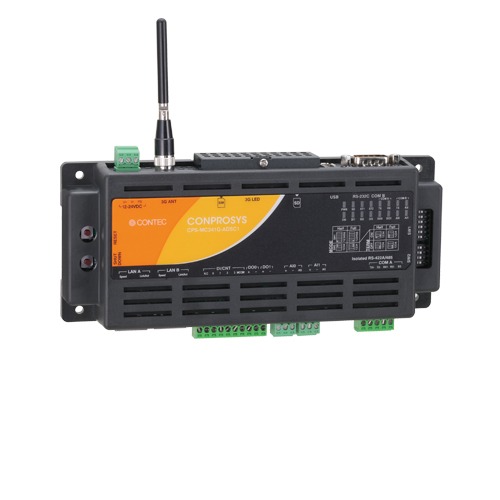

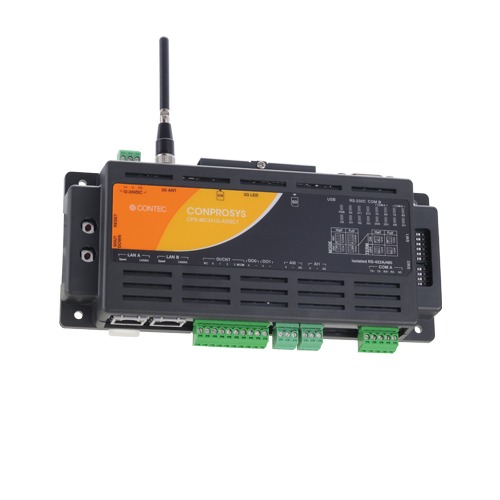

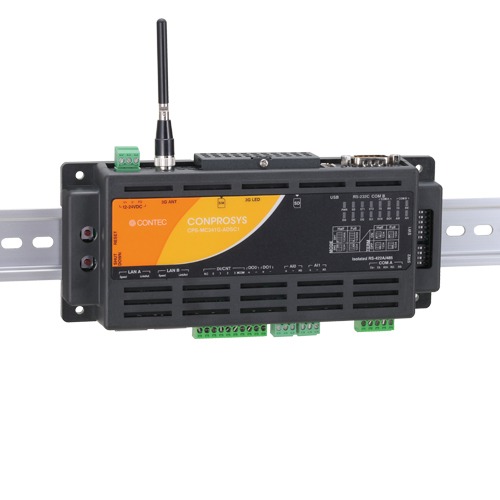

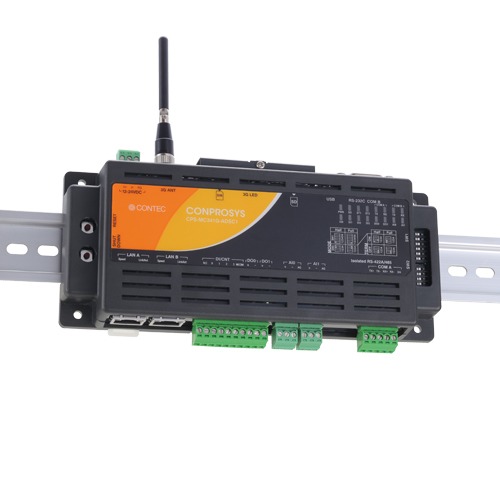

This product is a M2M controller with isolated RS-422A/485, isolated digital input/output, isolated counter input, inter-channel isolated analog input, RS-232C, LAN interface, and 3G network communication (Japan only) module. It is equipped with the ARM®Cortex®-A8 processor (600MHz) and the 512MB DDR3-SDRAM system memory. On-board NOR-FLASH is utilized for a booting device. You can perform all processes on a web browser from the development to the operation. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time.
| Series | CONPROSYS M2M Controller |
|---|---|
| Communication Ports | Ethernet (LAN); 3G Wireless (WAN) |
| Programming | CONPROSYS VTC |
| Stack bus | – |
| Function | Data transfer (https); Modbus/TCP slave |
| Input Channels | 4-ch |
|---|---|
| Output Channels | 2-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200μsec (max.) |
| Response Time (Output) | 2msec (max.) |
| Operating Voltage (Input) | – |
| Operating Voltage (Output) | – |
| Input Circuit | Opto-isolated input (for sink current output) |
| Output Circuit | Semiconductor relay output |
| Built-in Power Supply | 12VDC |
| Input Channels | Differential 2-ch |
|---|---|
| Input Range | 0 to 20mA |
| ADC Resolution | 12-bit |
| Sampling Rate | |
| Input Buffer Memory | |
| Output Channels | – |
| Output Range | – |
| DAC Resolution | – |
| Update rate | – |
| Output Buffer Memory |
| Number of Channels | 2-ch |
|---|---|
| Counting System | 24-bit Up count |
| Response speed | 1KHz |
| Number of Channels | 1x RS-232C [ASYNC]; 1x RS-232C/422A/485 [ASYNC] |
|---|---|
| Transmission Speed | 300 ~ 115,200bps |
| Isolation Property | |
| Transmission Method |
| Model | Description | Certification |
|---|---|---|
| CPS-MC341G-ADSC1-111 [Discontinued] | [End of Repair Service : 19 May, 2028] CONPROSYS M2M Controller – Integrated Type / 3G WAN (Japan Only) / 1x LAN + HUB / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485 |
|
| Item | Item Name |
|---|---|
| CONPROSYS HMI System (CHS) | Web HMI / SCADA Software |
| Item | Item Name |
|---|---|
| CPS-PWD-15AW12-01 | CONPROSYS 12VDC Power Supply Unit |
| Item | Item Name |
|---|---|
| SD-4GB-A | 4GB SD Card |
| Item | Item Name |
|---|---|
| CPS-MAG01-4 | Magnet (Four Piece Set) |
| CPS-PAV-AES1-JP | EnOcean wireless sensor for CONPROSYS controllers / Stack indicator monitoring set (Only for Japan market) |
