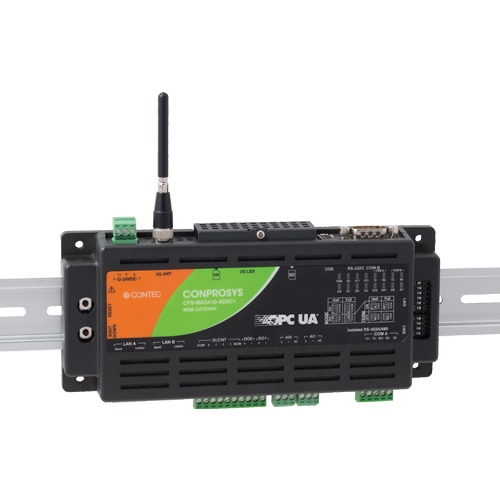

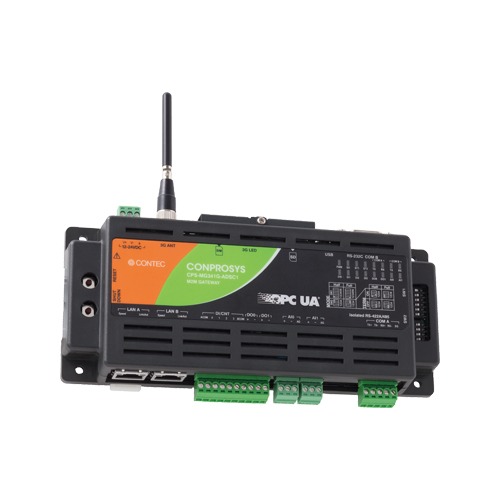

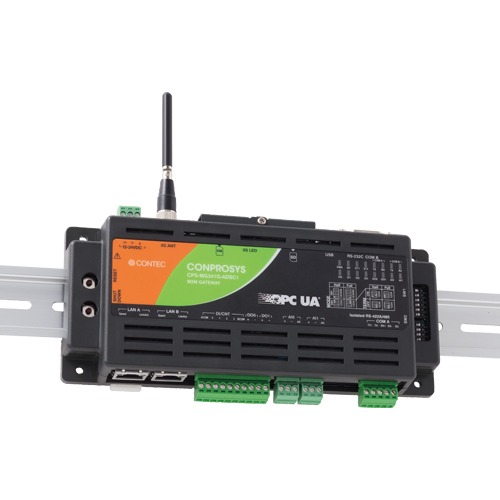

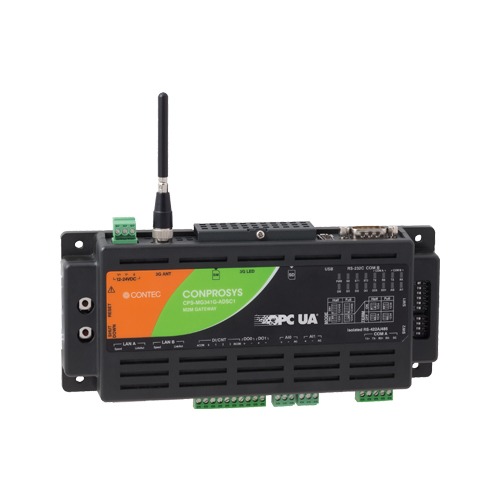

CPS-MG341G-ADSC1-930_img1CPS-MG341G-ADSC1-930_img1

CPS-MG341G-ADSC1-930

  • Built-in OPC UA Server
  • Promoting a multi-vendor system supporting a varied lineup of PLCs and Modbus devices
  • Connect up to 10 links and data collection from 256 group registers
  • BACnet Server & Client communication function
  • Web Monitoring and Web Task Script
  • Simple router function

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPS-MG341G-ADSC1-930 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    The product is a M2M controller with isolated RS-422/485, isolated digital input/output, isolated input counter, inter-channel isolated analog input, RS232C, LAN interface, Ethernet Hub and 3G network communication module.CPS-MG341G-ADSC1-930 contains OPC UA server function within. This product can communicate directly with HMI and SCADA software that support OPC UA clients from various makers.The product is the data collector “M2M Gateway” that supports respective PLCs as well as various Modbus devices. For equipment with PLC control, data will be collected by “M2M Gateway”. For the one without PLC control, data can be collected by “M2M controller” that supports sensor input. “M2M Gateway” can connect up to 10 Ethernet/calculating links with differing makers PLCs simultaneously.The CONPROSYS series enables you to collect and consolidate data from a wide range of equipment.You can perform all processes on a web browser from the development to the operation. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time.This product is in compliant with the following standards: FCC, TELEC, UL and VCCI.

    • Built-in OPC UA Server
      • OPC UA (Unified Architecture) is an advanced model of OPC specifications, which presents refined capability of transmitting and receiving semantic description data. OPC UA is a platform independent standard based on TCP.

    • Promoting a multi-vendor system supporting a varied lineup of PLCs and Modbus devices
      • The product connects and supports every PLC and each Modbus device simultaneously. *please visit our website regarding the details of supportive information.
    • Connect up to 10 links and data collection from 256 group registers
      • Up to 10 Ethernet/calculating links can be connected. Data collection from 128 PLCs and 256 group registers can be carried out. Up to 10000 data mapping for Modbus is possible.
    • BACnet Server & Client communication function
      • It supports both the server function that converts PLC and sensor information into BACnet communication protocol and sends it, and the client function that can monitor and control BACnet compatible devices such as air conditioners and lighting. By using the function, it is possible to pass the information from facilities and sensors that do not support BACnet to building management systems. In addition, by collecting the information from building equipment, building a simple control system and sending information on building equipment to the cloud via CONPROSYS, you can remotely monitor equipment at multiple sites.
    • Web Monitoring and Web Task Script
      • The product contains a Web server (Java applet). Even with your PC located remotely, you can monitor and update I/O information through a Web browser. On the monitoring screen, you can freely lay out the standard GUI parts (graphic, slider, button, etc.). All operations including monitoring layout, making relations with I/O information, can be achieved via the Web browser.By combining icons such as arithmetic operations, conditional branching, data outputting, you can set up the executions or its processes like drawing them in the flowchart. All operation can be completed on the Web browser.
    • Simple router function
      • Equipped with a simple routing function. It is possible to use a DHCP server, static routing, port routing and IP routing.

    See more details of M2M/IoT Solution CONPROSYS Series

    Specifications

    Specifications
    Controller Unit
    Series CONPROSYS M2M Controller
    Communication Ports Ethernet (LAN); 3G Wireless (WAN)
    Programming CONPROSYS VTC
    Stack bus
    Function Data transfer (https); CNC link; Modbus master; Modbus/TCP slave; MTConnect Adapter/Agent; OPC UA server; PLC link; BACnet server; BACnet client
    Digital I/O
    Input Channels 4-ch
    Output Channels 2-ch
    Bi-directional I/O Channels
    Response Time (Input) 200μsec (max.)
    Response Time (Output) 2msec (max.)
    Operating Voltage (Input) 12 to 24VDC; –
    Operating Voltage (Output)
    Input Circuit Opto-isolated input (for both current sink and source output)
    Output Circuit Semiconductor relay output
    Built-in Power Supply 12VDC
    Analog I/O
    Input Channels Differential 2-ch
    Input Range 0 to 20mA
    ADC Resolution 12-bit
    Sampling Rate
    Input Buffer Memory
    Output Channels
    Output Range
    DAC Resolution
    Update rate
    Output Buffer Memory
    Counter
    Number of Channels 2-ch
    Counting System 24-bit Up count
    Response speed 1KHz
    Serial Comm.
    Number of Channels 1x RS-232C [ASYNC]; 1x RS-422A/485 [ASYNC]
    Transmission Speed 300 ~ 115,200bps
    Isolation Property Isolated & Surge protection; –
    Transmission Method RS-232C [Asynchronous]; RS-422A/485 [Asynchronous]

    Ordering Informations

    Replacement Product
    Model Definition
    CONPROSYS M2M Gateway – Integrated Type / OPC UA / MTConnect / CNC / 4G LTE / 2x LAN / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485
    CPS-MG341G5-ADSC1-931
    For details, please see datasheets and manuals.
    Ordering Information
    Model Description Certification
    CPS-MG341G-ADSC1-930 [Limited Stock] [End of Repair Service : 31 March, 2026] CONPROSYS M2M Gateway – Integrated Type / OPC UA / MTConnect / CNC / 3G WAN / 2x LAN / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485
    • FCC compliant
    • TELEC
    • UL
    • VCCI
    Options
    SCADA Software
    Item Item Name
    CONPROSYS HMI System (CHS) Web HMI / SCADA Software
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-15AW12-01 CONPROSYS 12VDC Power Supply Unit
    Storage
    Item Item Name
    SD-4GB-A 4GB SD Card
    Other Accessories
    Item Item Name
    CPS-MAG01-4 Magnet (Four Piece Set)
    CPS-PAV-AES1-JP EnOcean wireless sensor for CONPROSYS controllers / Stack indicator monitoring set (Only for Japan market)
