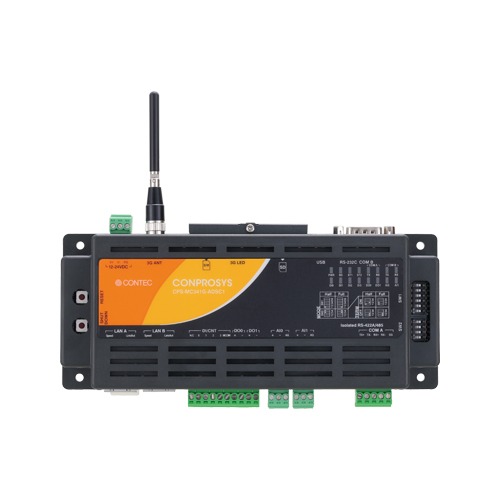

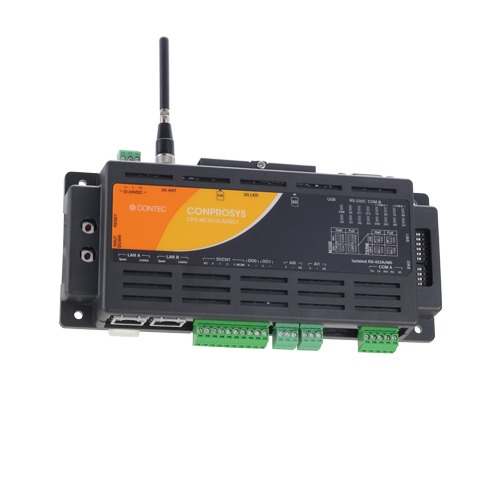

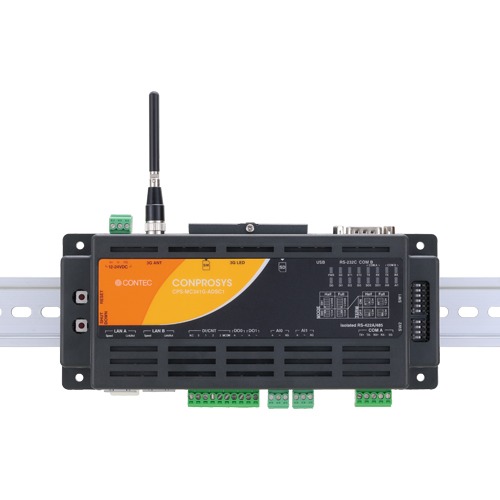

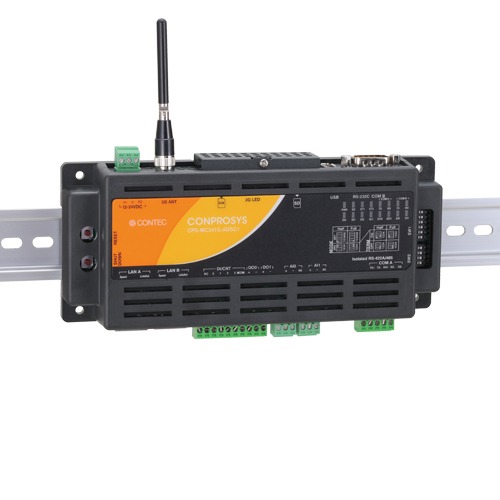

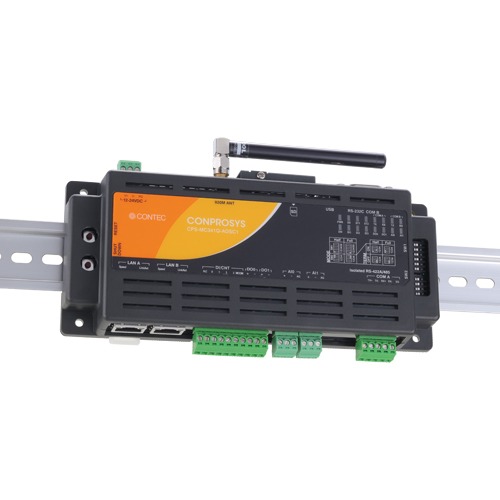

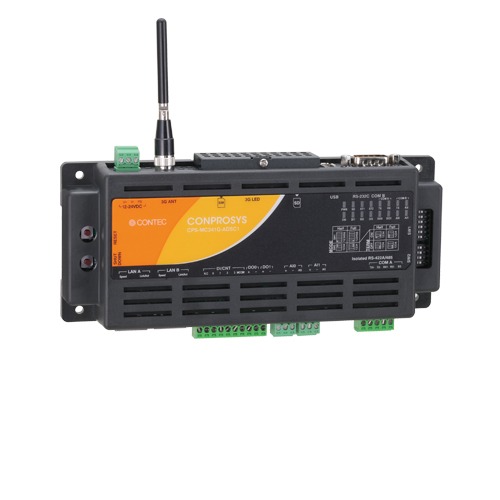

CPS-MC341G-ADSC1-110_img1CPS-MC341G-ADSC1-110_img1

CPS-MC341G-ADSC1-110

  • Measurement and Upload
  • Simple Router Function
  • Web Monitoring and Web Task Script
  • Message Communication Function
  • Compact Design
  • Adaptable to a temperature range between -20 and 60°C

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPS-MC341G-ADSC1-110 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a M2M controller with isolated RS-422A/485, isolated digital input/output, isolated counter input, inter-channel isolated analog input, RS-232C, LAN interface, and 3G network communication module.It is equipped with the ARM®Cortex®-A8 processor (600MHz) and the 512MB DDR3-SDRAM system memory. On-board NOR-FLASH is utilized for a booting device.You can perform all processes on a web browser from the development to the operation. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time.This product is in compliant with the following standards: CE, FCC, TELEC, UL and VCCI.

    • Measurement and Upload
      • The product measures data with an external sensor and uploads them to the Cloud server.
    • Simple Router Function
      • Equipped with a simple routing function. It is possible to use a DHCP server, static routing, port routing and IP routing.
    • Web Monitoring and Web Task Script
      • The product contains a Web server (Java applet). Even with your PC located remotely, you can monitor and update I/O information through a Web browser. On the monitoring screen, you can freely lay out the standard GUI parts (graphic, slider, button, etc.). All operations including monitoring layout, making relations with I/O information, can be achieved via the Web browser.By combining icons such as arithmetic operations, conditional branching, data outputting, you can set up the executions or its processes like drawing them in the flowchart. All operation can be completed on the Web browser.
    • Message Communication Function
      • With the RS232C, the RS-422A/RS-485 or the Ethernet device (TCP/UDP), up to 10 links can be set to send or receive messages. Message communication can be accomplished from Web task script.
    • Compact Design
      • Compact design, 188.0(W) × 78.0(D) × 30.5(H)mm, features flexibility in installation.
    • Adaptable to a temperature range between -20 and 60°C
      • The product is capable of operating in the temperature between -20 and 60°C. It can be installed in the various environments.

    See more details of M2M/IoT Solution CONPROSYS Series

    Specifications

    Specifications
    Controller Unit
    Series CONPROSYS M2M Controller
    Communication Ports Ethernet (LAN); 3G Wireless (WAN)
    Programming CONPROSYS VTC
    Stack bus –
    Function Data transfer (https); Modbus/TCP slave
    Digital I/O
    Input Channels 4-ch
    Output Channels 2-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200μsec (max.)
    Response Time (Output) 2msec (max.)
    Operating Voltage (Input) –
    Operating Voltage (Output) –
    Input Circuit Opto-isolated input (for sink current output)
    Output Circuit Semiconductor relay output
    Built-in Power Supply 12VDC
    Analog I/O
    Input Channels Differential 2-ch
    Input Range 0 to 20mA
    ADC Resolution 12-bit
    Sampling Rate –
    Input Buffer Memory –
    Output Channels –
    Output Range –
    DAC Resolution –
    Update rate –
    Output Buffer Memory
    Counter
    Number of Channels 2-ch
    Counting System 24-bit Up count
    Response speed 1KHz
    Serial Comm.
    Number of Channels 1x RS-232C [ASYNC]; 1x RS-232C/422A/485 [ASYNC]
    Transmission Speed 300 ~ 115,200bps
    Isolation Property –
    Transmission Method RS-232C/422A/485 [Asynchronous]

    Ordering Informations

    Replacement Product
    Model Definition
    CONPROSYS M2M Gateway – Integrated Type / OPC UA / MTConnect / CNC / 4G LTE / 2x LAN / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485
    CPS-MG341G5-ADSC1-931    		 For details, please see datasheets and manuals.
    Ordering Information
    Model Description Certification
    CPS-MC341G-ADSC1-110 [Limited Stock] [End of Repair Service : 31 March, 2026] CONPROSYS M2M Controller – Integrated Type / 3G WAN / 1x LAN + HUB / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485
    • CE marking
    • FCC compliant
    • TELEC
    • UL
    • VCCI
    Options
    SCADA Software
    Item Item Name
    CONPROSYS HMI System (CHS) Web HMI / SCADA Software
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-15AW12-01 CONPROSYS 12VDC Power Supply Unit
    Storage
    Item Item Name
    SD-4GB-A 4GB SD Card
    Other Accessories
    Item Item Name
    CPS-MAG01-4 Magnet (Four Piece Set)
    CPS-PAV-AES1-JP EnOcean wireless sensor for CONPROSYS controllers / Stack indicator monitoring set (Only for Japan market)
