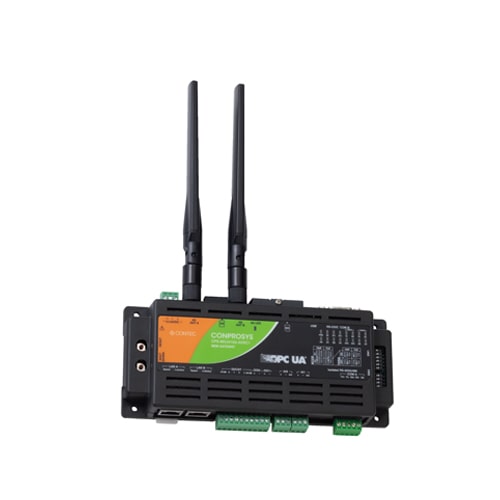

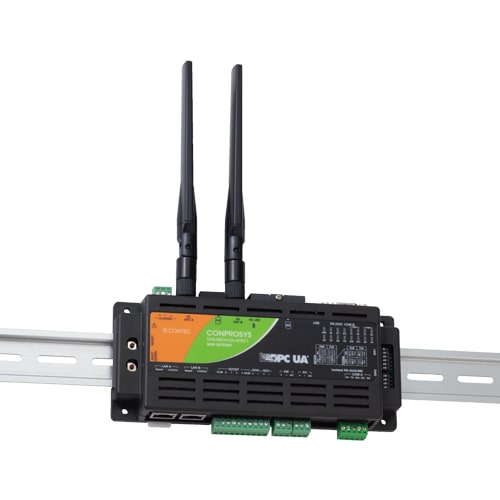

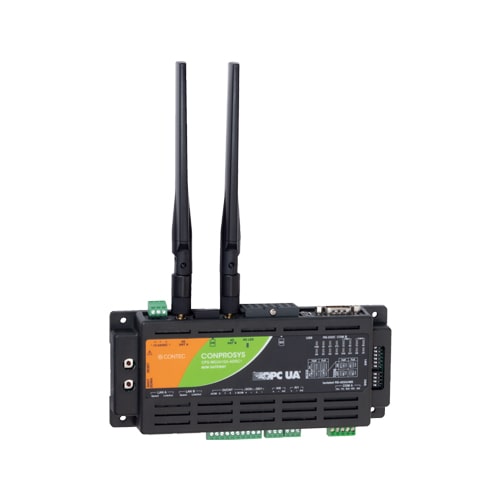

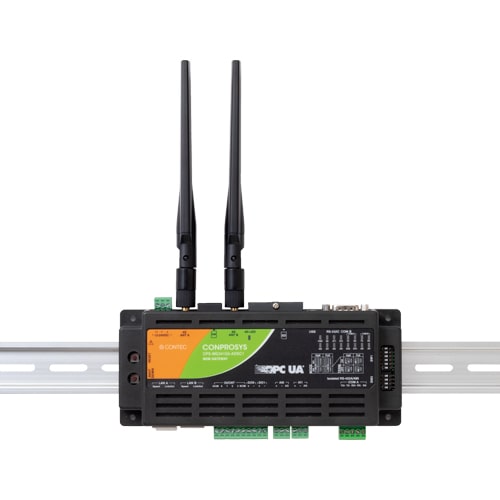

The product is a M2M controller with isolated RS-422/485, isolated digital input/output, isolated input counter, inter-channel isolated analog input, RS232C, LAN interface, Ethernet Hub and 4G LTE network communication module.CPS-MG341G5-ADSC1-931 contains OPC UA server function within. This product can communicate directly with HMI and SCADA software that support OPC UA clients from various makers.The product is the data collector “M2M Gateway” that supports respective PLCs as well as various Modbus devices. For equipment with PLC control, data will be collected by “M2M Gateway”. For the one without PLC control, data can be collected by “M2M controller” that supports sensor input. “M2M Gateway” can connect up to 10 Ethernet/computer links with differing makers’ PLCs simultaneously.The CONPROSYS series enables you to collect and consolidate data from a wide range of equipment.You can perform all processes on a web browser from the development to the operation. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time.
Series | CONPROSYS M2M Controller |
---|---|
Communication Ports | Ethernet (LAN); 4G LTE Wireless (WAN) |
Programming | CONPROSYS VTC |
Stack bus | – |
Function | Data transfer (https); CNC link; FacilityView data transmission; Modbus master; Modbus/TCP slave; MTConnect Adapter/Agent; OPC UA server; PLC link; BACnet server; BACnet client |
Input Channels | 4-ch |
---|---|
Output Channels | 2-ch |
Bi-directional I/O Channels | – |
Response Time (Input) | 200μsec (max.) |
Response Time (Output) | 2msec (max.) |
Operating Voltage (Input) | 12 to 24VDC; – |
Operating Voltage (Output) | – |
Input Circuit | Opto-isolated input (for both current sink and source output) |
Output Circuit | Semiconductor relay output |
Built-in Power Supply | 12VDC |
Input Channels | Differential 2-ch |
---|---|
Input Range | 0 to 20mA |
ADC Resolution | 12-bit |
Sampling Rate | |
Input Buffer Memory | |
Output Channels | – |
Output Range | – |
DAC Resolution | – |
Update rate | – |
Output Buffer Memory |
Number of Channels | 2-ch |
---|---|
Counting System | 24-bit Up count |
Response speed | 1KHz |
Number of Channels | 1x RS-232C [ASYNC]; 1x RS-422A/485 [ASYNC] |
---|---|
Transmission Speed | 300 ~ 115,200bps |
Isolation Property | Isolated & Surge protection; – |
Transmission Method | RS-232C [Asynchronous]; RS-422A/485 [Asynchronous] |
Model | Description | Certification |
---|---|---|
CPS-MG341G5-ADSC1-931 | CONPROSYS M2M Gateway – Integrated Type / OPC UA / MTConnect / CNC / 4G LTE / 2x LAN / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485 |
|
Item | Item Name |
---|---|
CPS-CAB-S01 | Cables to connect the FANUC CNC and the CONPROSYS series CNC communication support controller(s). |
CPS-CAB-S02 | Cable to connect the MITSUBISHI CNC and the CONPROSYS series CNC communication support controller. |
Item | Item Name |
---|---|
CPS-PWD-15AW12-01 | CONPROSYS 12VDC Power Supply Unit |
Item | Item Name |
---|---|
CPS-ANT-R5-01 | External 4G LTE Antenna for CONPROSYS series (Japan only) |
Item | Item Name |
---|---|
SD-4GB-A | 4GB SD Card |
Item | Item Name |
---|---|
CPS-MAG01-4 | Magnet (Four Piece Set) |
CPS-PAV-AES1-JP | EnOcean wireless sensor for CONPROSYS controllers / Stack indicator monitoring set (Only for Japan market) |
