PAC（Programmable Automation Controller）Series

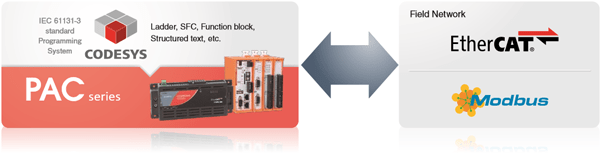

IEC 61131-3 standard CODESYS programming.
Rich functionality to build an open system in an industrial application.

Integrated Development Environment

An integrated development environment for developing applications can be downloaded free of charge.This makes it possible to seamlessly perform development such as control logic and field bus I/O.

Supported Integrated Development Environment:

V3.5 SP7 Patch 2 or later.

Supported Languages:

LD / SFC / FBD / ST / IL / CFC

• IEC 61131-3 compliant Up to 6 programming languages are supported.
• Up to 11 types of fieldbus protocols are available.^*
• Supports OPC UA that is adopted by Industrie 4.0 standard.

* The CONPROSYS PAC series supports EtherCAT and Modbus. Contact Contec for information on supporting other fieldbus protocols.

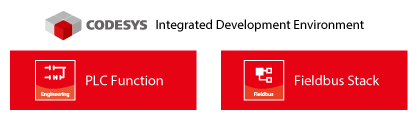

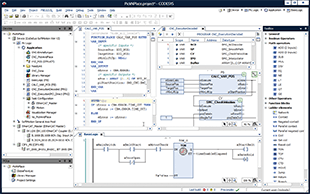

CODESYS Integrated Development Environment

A CODESYS development environment, that has been integrated PLC programming, fieldbus settings, etc. is provided free of charge. It overwhelmingly reduces the man-hour of developing an automation system in the production site.

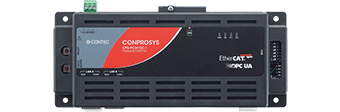

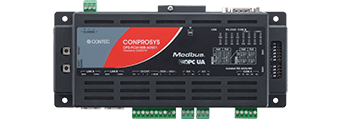

The integrated type offers a wide range of models with a variety of I/O interfaces and communication protocols.

*Key features are the same as the integrated type M2M controller seroes.
*Check the datasheets of each model for its interface specification from Contec Web site.

Software Features

Hardware Features

• DIN rail or fixed mounting options available
• Embedded CPU
• Operating temperature range: -20 – 60°C (-4 – 140°F)
• Durable hardware reduces maintenance costs
• Daisy-chain connections do not required a HUB
• Physical dimensions: 188.0(W)×78.0(D)×30.5(H) mm (7.40″×3.07″×1.20″) (does not include protrusions and antenna)
• Power supply voltage: 12 – 24 VDC

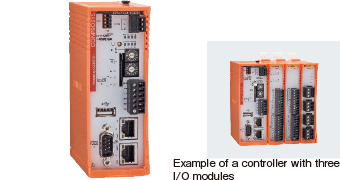

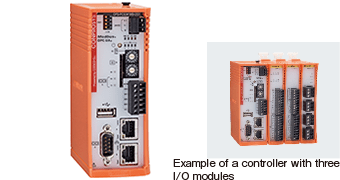

The configurable type allows users to add a variety of I/O modules to a CPU controller providing ultimate flexibility.

*Key features are the same as the configurable type M2M controllers.

Software Features

Hardware Features

• Expandable design
• Capable of supporting up to 16 I/O modules on a single controller
• DIN rail mountable
• Embedded CPU
• Operating temperature range: -20 – 60°C (-4 – 140°F)
• Durable hardware reduces maintenance costs
• Daisy-chain connections do not required a HUB
• Physical dimensions: 44.7(W)×94.7(D)×124.8(H) mm (1.76″×3.83″×4.91″) (does not include protrusions and antenna)
• Power supply voltage: 24 VDC

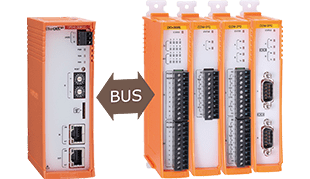

EtherCAT SubDevice Controller

CPS-ECS341-1-011

The EtherCAT SubDevice is used to monitor or control equipment in Ethernet-based EtherCAT networks. An EtherCAT network connects an EtherCAT MainDevice controller to SubDevice(s) by LAN cable(s) (RJ-45). Users can attach CONPROSYS I/O modules to EtherCAT SubDevice units to suit a variety of applications including semiconductor and FPD manufacturing equipment, machine tools, test benches, and transportation systems.

>h6>EtherCAT SubDevice

EtherCAT features allow the I/O modules to be controlled from a distance. Up to 16 I/O modules can be stacked to one SubDevice.

Work with CONPROSYS PAC Series Controllers

Together with the PAC series EtherCAT master controller, an all Contec devices EtherCAT system is available.

Modular Device Profile (MDP)

The EtherCAT SubDevice complies with the EtherCAT Modular Device Profile (MDP) standard (ETG.5001.1). An MDP standard supported master will recognize and register the I/O modules automatically.

Daisy Chain Connection

Each SubDevice unit is equipped with an input port and an output port. Up to 65,535 SubDevices can be connected to one MainDevice.

* Common features are same as configurable type M2M controller series.
