CPS-PCS341MB-DS1-1201

Collaborate with the CODESYS
Along with Modbus TCP Master
Together with OPC UA Server
Opto-coupler isolated input (Current sink output compliant), Opto-coupler isolated open collector output (Current sink type)
Compact Design
Adaptable to a wide range of temperature between -20 and 60°C

*For details about an extended warranty, please contact us.

Request Quote

SKU: CPS-PCS341MB-DS1-1201 Categories: DAQ & Control, IoT/M2M Tag: Equvera-Contec Brand: Contec

Description

Specifications

Ordering Informations

Overview / Features

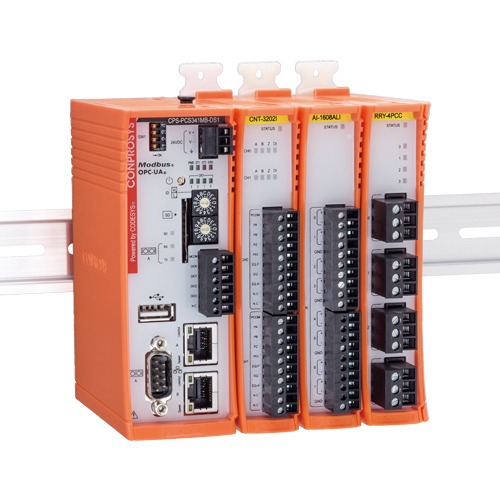

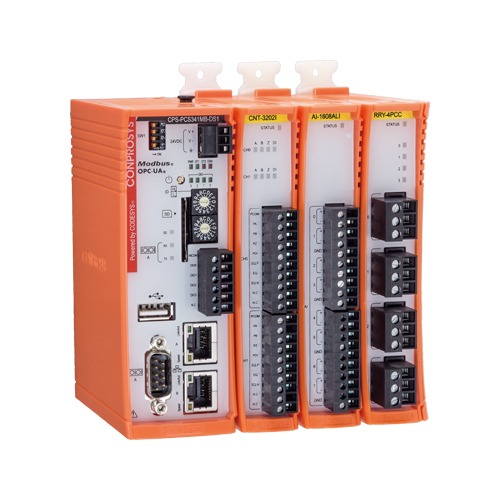

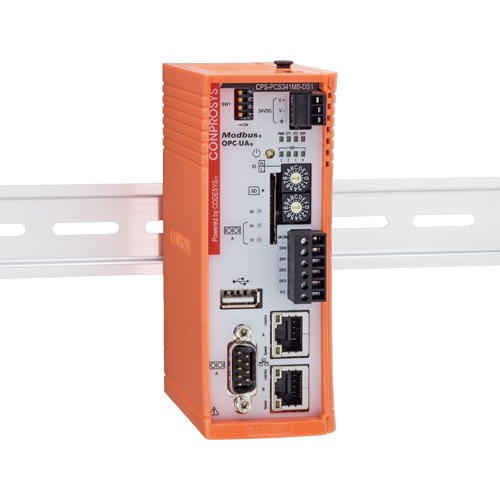

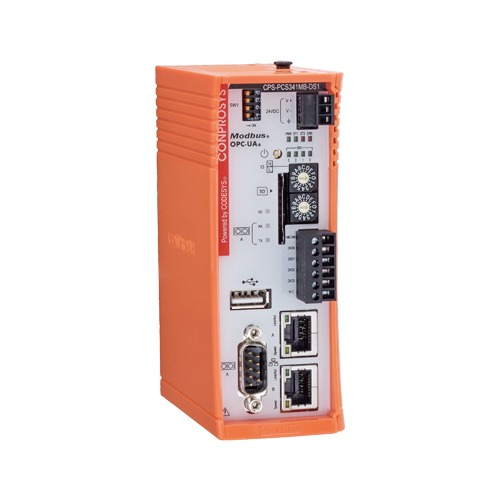

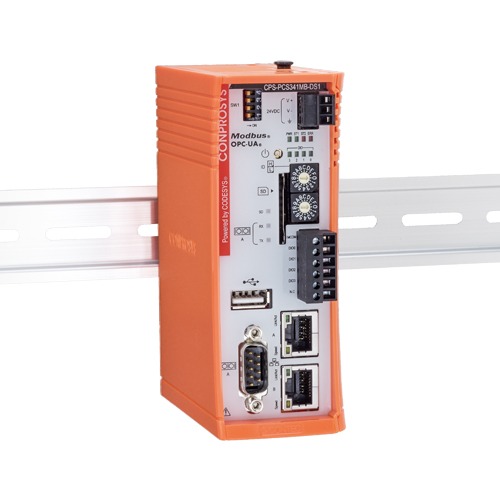

This product is a Modbus Master controller with isolated digital input and output (Input: 4ch, Output: 4ch), RS-232C, and LAN interface. You can affix the stacking devices of our CONPROSYS series as you desire. (up to 16 devices). This product is in compliant with the following standards: CE, FCC, UL and VCCI.

This product contains the CODESYS* Soft PLC. You can create your own PLC program and run with the CODESYS software.

* CODESYS is a device-independent PLC-programming system that is complied with the IEC 61131-3 standard and supports all standard programming languages such as ST or LD.

Collaborate with the CODESYS
- This product features the CODESYS Soft PLC. CODESYS is a device-independent-PLC-programming system that is complied with the IEC 61131-3 standard and supports all standard programming languages such as ST and LD.
Along with Modbus TCP Master
- Modbus is a communication protocol widely applied in the industrial field. Data collecting and controlling can be carried out with Modbus TCP Slave compliant devices.
Together with OPC UA Server
- OPC UA (Unified Architecture) is an advanced model of OPC specifications, which features refined capability of transmitting and receiving semantic description data. OPC UA is a platform independent standard based on TCP. The product can be operated with HMI and SCADA software that are provided from differing makers and applicable to OPC UA client.
Opto-coupler isolated input (Current sink output compliant), Opto-coupler isolated open collector output (Current sink type)
- With response speed 200μ sec, the product has 4 channels of opto-coupler isolated input (Current sink output compliant), and opto-coupler isolated open collector output (Current sink type) respectively.
Compact Design
- Compact design, 44.7 (W) ×94.7 (D) ×124.8 (H) mm, features flexibility in installation.
Adaptable to a wide range of temperature between -20 and 60°C
- The product is capable of operating in the temperature between -20 and 60°C. It can be installed in the various environments.

See more details of M2M/IoT Solution CONPROSYS Series

Specifications

Controller Unit

Series	CONPROSYS PAC
Communication Ports	Ethernet (LAN)
Programming	CODESYS (IEC61131-3)
Stack bus	CONPROSYS stack
Function	Modbus master; Modbus/TCP slave; OPC UA server

Digital I/O

Input Channels	4-ch
Output Channels	4-ch *Share with inputs
Bi-directional I/O Channels	–
Response Time (Input)	200μsec (max.)
Response Time (Output)	2msec (max.)
Operating Voltage (Input)	–
Operating Voltage (Output)	–
Input Circuit	Opto-isolated input (for sink current output)
Output Circuit	Semiconductor relay output
Built-in Power Supply	12VDC

Analog I/O

Input Channels	–
Input Range	–
ADC Resolution	–
Sampling Rate	–
Input Buffer Memory
Output Channels	–
Output Range	–
DAC Resolution	–
Update rate	–
Output Buffer Memory

Counter

Number of Channels	–
Counting System	–
Response speed	–

Serial Comm.

Number of Channels	1x RS-232C [ASYNC]
Transmission Speed	300 ~ 115,200bps
Isolation Property
Transmission Method
