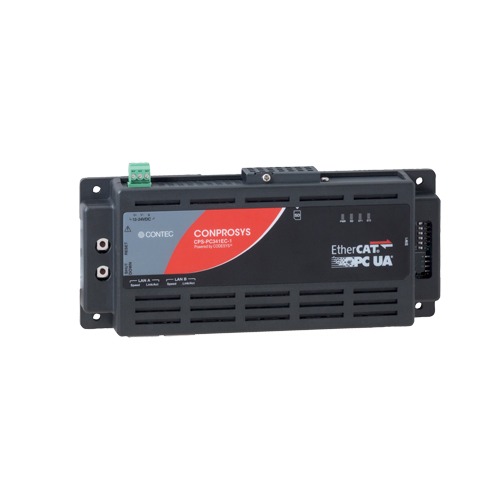

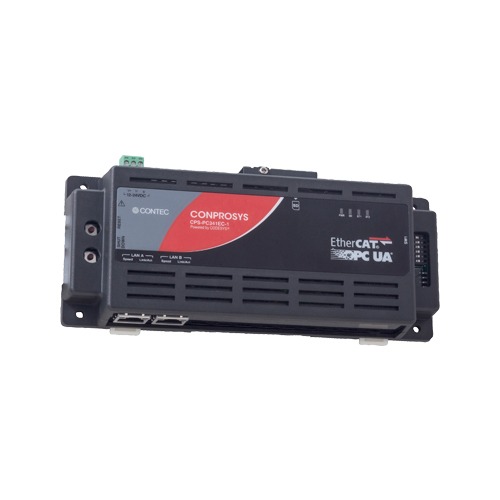

cps-pc341ec-1-9201cps-pc341ec-1-9201

CPS-PC341EC-1-9201

  • Collaborate with the CODESYS
  • Harmonize with EtherCAT Master
  • Together with OPC UA Server
  • Compact Design
  • Adaptable to a temperature range between -20 to 60°C
  • Capable of adapting a wide-range power (12 to 24VDC)

*For details about an extended warranty, please contact us.

Data Sheet PDF

SKU: CPS-PC341EC-1-9201 Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is an EtherCAT Master controller equipped with ARM Cortex-A8 processor (600MHz) and 512MB DDR3-SDRAM. On-board NOR-FLASH is utilized for a booting device. This product contains the CODESYS. You can create your own PLC program and run with the CODESYS software. CODESYS is a device- independent-PLC-programming system that is compliant with the IEC 61131-3 standard and supports all standard programming languages such as ST or LD. This product is in compliant with the following standards: CE, FCC, UL and VCCI.

  • Collaborate with the CODESYS

    • CODESYS is a device-independent-PLC-programming system that is compliant with the IEC 61131-3 standard and supports all standard programming languages such as ST or LD.

  • Harmonize with EtherCAT Master

    • EtherCAT is a strong, efficient real-time Ethernet field bus system with an open protocol.

  • Together with OPC UA Server

    • OPC UA (Unified Architecture) is an advanced model of OPC specifications, which presents refined capability of transmitting and receiving semantic description data. OPC UA is a platform independent standard based on TCP.

  • Compact Design

    • Compact design of 188.0(W) x 78.0(D) x 30.5(H), features flexibility in installation.

  • Adaptable to a temperature range between -20 to 60°C

    • The product is capable of operating in the temperature between -20 to 60°C. It can be installed in the various environments.

  • Capable of adapting a wide-range power (12 to 24VDC)

    • The product is capable of dealing with a wide range of power in the differing environments. Power connector also has a FG terminal.

See more details of M2M/IoT Solution CONPROSYS Series

Specifications

Specifications
Controller Unit
Series CONPROSYS PAC
Communication Ports Ethernet (LAN)
Programming CODESYS (IEC61131-3)
Stack bus –
Function EtherCAT master; Modbus/TCP slave; OPC UA server
Digital I/O
Input Channels –
Output Channels –
Bi-directional I/O Channels –
Response Time (Input) –
Response Time (Output) –
Operating Voltage (Input) –
Operating Voltage (Output) –
Input Circuit –
Output Circuit –
Built-in Power Supply –
Analog I/O
Input Channels –
Input Range –
ADC Resolution –
Sampling Rate –
Input Buffer Memory
Output Channels –
Output Range –
DAC Resolution –
Update rate –
Output Buffer Memory
Counter
Number of Channels –
Counting System –
Response speed –
Serial Comm.
Number of Channels –
Transmission Speed –
Isolation Property
Transmission Method

Ordering Informations

Ordering Information
Model Description Certification
CPS-PC341EC-1-9201 CONPROSYS PAC Series – Integrated Type (IEC 61131-3 CODESYS) / EtherCAT Master / OPC UA
  • CE marking
  • FCC compliant
  • UL
  • VCCI
Options
Power Supply / AC Adapter
Item Item Name
CPS-PWD-15AW12-01 CONPROSYS 12VDC Power Supply Unit
Storage
Item Item Name
SD-4GB-A 4GB SD Card
Other Accessories
Item Item Name
CPS-MAG01-4 Magnet (Four Piece Set)
