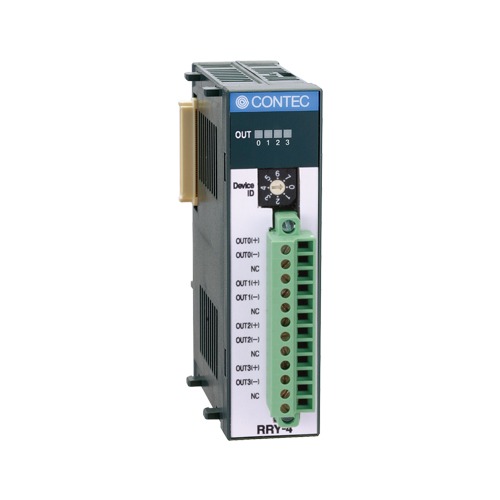

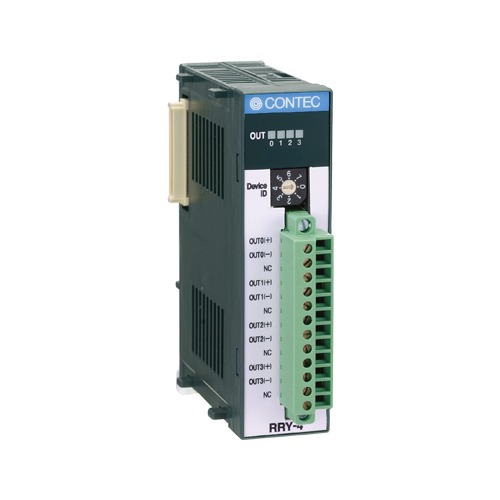

This product is the module for expansion (device module) which expands a reed relay junction output interface for various controllers. It is used connecting for I/O controller module CPU-CAxx(FIT)GY of F&eIT series, and microcontroller unit CPU-SBxx(FIT)GY. The relay output of a maximum of four points can be performed by one module.
| Series | F&eIT |
|---|---|
| Bus Specification | F&eIT stack bus |
| Size | F&eIT 1U |
| Used Connector | – |
| Input Channels | – |
|---|---|
| Output Channels | 4-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | – |
| Response Time (Output) | 7msec (max.) |
| Operating Voltage (Input) | – |
| Operating Voltage (Output) | to 125VAC / to 30VDC |
| Input Circuit | – |
| Output Circuit | Reed relay contact output |
| Built-in Power Supply | – |
| Supported OS | – |
|---|
| Model | Definition |
|---|---|
| Reed relay contact output CONPROSYS nano Series I/O module 4ch (Contacts A isolated up to 125VAC or up to 30VDC) CPSN-RRY-4PCA |
For details, please see datasheets and manuals. |
| Model | Description | Certification |
|---|---|---|
| RRY-4(FIT)GY [Limited Stock] | [End of Repair Service : December 15, 2031] Reed relay contact output F&eIT I/O module 4ch (isolated – 125VAC – 30VDC) |
|
