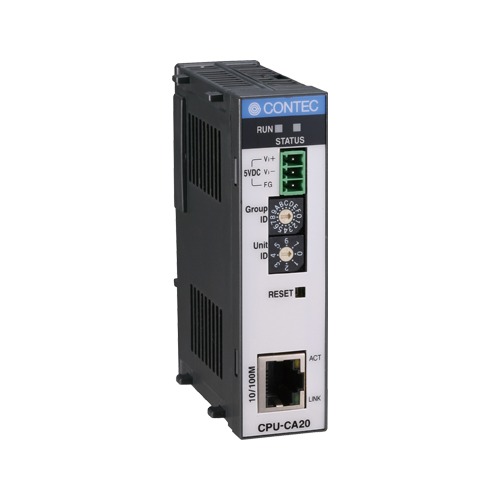

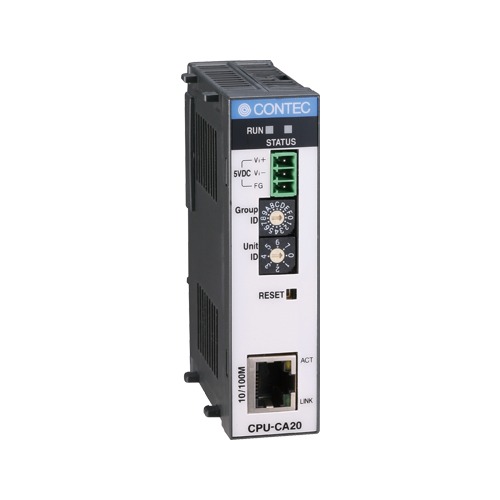

CPU-CA20(FIT)GY_img1CPU-CA20(FIT)GY_img1

CPU-CA20(FIT)GY

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPU-CA20(FIT)GY Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

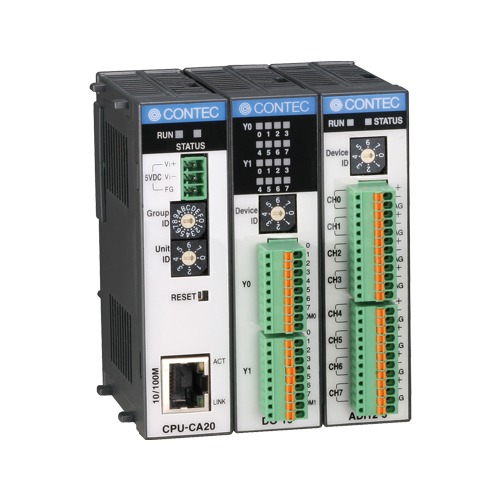

    CPU-CA20(FIT)GY is the controller module which delivers input-and-output information by network connection (10BASE-T/100BASE-TX) with Host PC, connects the device module of F&eIT series, and can perform input-and-output processing of a signal. It is connectable, combining freely device modules (a maximum of eight sets), such as digital input and output, analog input and output, and a counter input.

      • Power saving and the low generation of heat CPU are adopted, and fan-less is realized. Moreover, it is the compact design which does not choose an installation place.
      • Device modules, such as digital input and output to connect, are controlled, and Host PC, various server units, and surveillance / control information are transmitted and received through Ethernet.
      • It can be used as a subsystem of a Web system which cooperated with I/O assistant server unit [SVR-IOAx(FIT)GY] *1 or monitoring control server unit [SVR-MMFx(FIT)GY] *1. ??*1 [x] within form expresses unsigned or the number of one character, and products differ.
      • If an attached driver library is used, surveillance and control of external equipment can be easily performed from the host PC on a network. Moreover, if a general-purpose socket function is used, a UNIX machine etc. is controllable also by OS’s other than Windows.

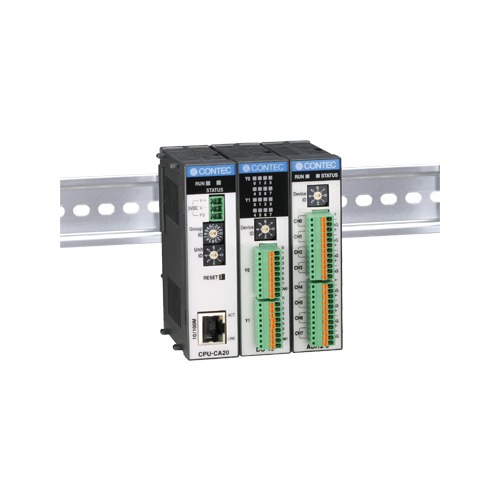

      • Like other F&eIT series products, the module has a 35mm DIN rail mounting mechanism as standard. A connection to a controller module can be effected on a lateral, stack basis in a unique configuration, which permits a simple, smart system configuration without the need for a backplane board.

    Specifications

    Specifications
    Coupler module
    Series F&eIT
    Communication Protocol F&eIT
    Stack bus F&eIT stack bus
    Number of Connecting Modules 8-modules
    Number of Ports –

    Ordering Informations

    Replacement Product
    Model Definition
    CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 2x LAN
    CPSN-MCB271-1-041
    CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus slave / 8x Slot / 2x LAN
    CPSN-MCB271-1-081
    CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 1x LAN / 1x RS-232C
    CPSN-MCB271-S1-041

    		 For details, please see datasheets and manuals.
    Ordering Information
    Model Description Certification
    CPU-CA20(FIT)GY [Limited Stock] [End of Repair Service : December 15, 2031] F&eIT Remote I/O – Communication Coupler / 1x LAN
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Analog I/O
    Item Item Name
    ADI12-8(FIT)GY Analog Input F&eIT I/O Module / 8ch(12bit 33.3ks/s) / Bus Isolation
    ADI16-4(FIT)GY Analog Input F&eIT I/O Module / 4ch(16bit 33.3ks/s) / Bus Isolation
    DAI12-4(FIT)GY Analog Output F&eIT I/O Module / 4ch(12bit 100ks/s) / Bus Isolation
    DAI16-4(FIT)GY Analog Output F&eIT I/O Module / 4ch(16bit 100ks/s) / Bus Isolation
    PTI-4(FIT)GY Pt100 Temperature Sensor Input F&eIT I/O Module / 4ch(0.01°C 200s/s) / Bus Isolation
    Digital I/O
    Item Item Name
    DI-16(FIT)GY Digital input F&eIT I/O module 16ch (isolated 12 – 24VDC)
    DI-32(FIT)GY Digital input F&eIT I/O module 32ch(isolated 12 – 24VDC)
    DI-8(FIT)GY Digital input F&eIT I/O module 8ch (isolated 12 – 24VDC)
    DIO-16/16(FIT)GY Digital I/O F&eIT I/O module 16ch/16ch (isolated 12 – 24VDC)
    DIO-4/4(FIT)GY Digital I/O F&eIT I/O module 4ch/4ch (isolated 12 – 24VDC / 12 – 48VDC)
    DIO-8/8(FIT)GY Digital I/O F&eIT I/O module 8ch/8ch (isolated 12 – 24VDC)
    DIO-8D(FIT)GY Digital I/O F&eIT I/O module bi-directional 8ch (non-isolated 5VDC-TTL)
    DO-16(FIT)GY Digital output F&eIT I/O module 16ch (isolated 12 – 48VDC)
    DO-32(FIT)GY Digital output F&eIT I/O module 32ch (isolated 12 – 48VDC)
    RRY-4(FIT)GY Reed relay contact output F&eIT I/O module 4ch (isolated – 125VAC – 30VDC)
    Counter
    Item Item Name
    CNT16-8(FIT)GY Counter F&eIT I/O module 8ch (16bit Up count 5kHz) / Isolated
    CNT24-2(FIT)GY Counter F&eIT I/O module 2ch (24bit Up/Down count 500kHz) / Incremental encoder interface / Isolated
    Device Drivers
    Item Item Name
    API-CAP(LNX) LINUX Driver Library for F&eIT I/O Controller modules
    API-CAP(W32) Windows version Driver Library for F&eIT I/O module
    Power Supply / AC Adapter
    Item Item Name
    POW-AD13GY F&eIT series AC-DC Power Supply Unit Input 85-132VAC, Output 5VDC 3A
    POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
    POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A
    PWD-25AWD5 F&eIT series AC-DC Power Supply Unit Input 85 to 264 VAC, Output 5 VDC 5A
    Extended Warranty Service
    Item Item Name
    ESP-F5 Extended warranty service package (5 years service course) (Japan only)
    ESP-S1 Extended warranty service package (Extension one year) (Japan only)
