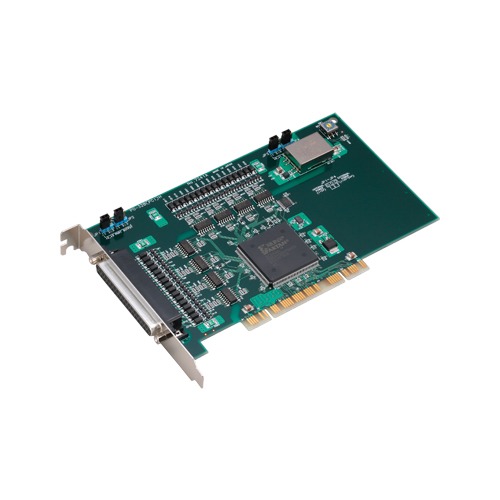

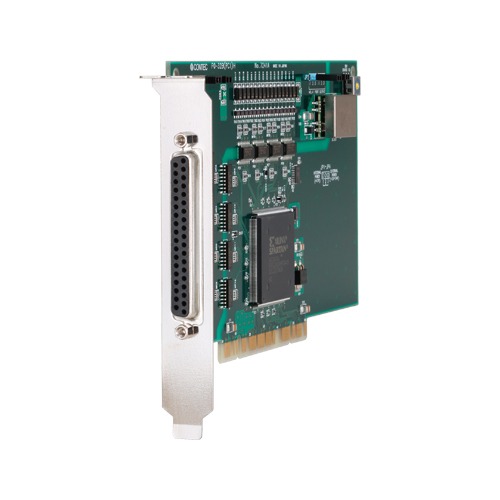

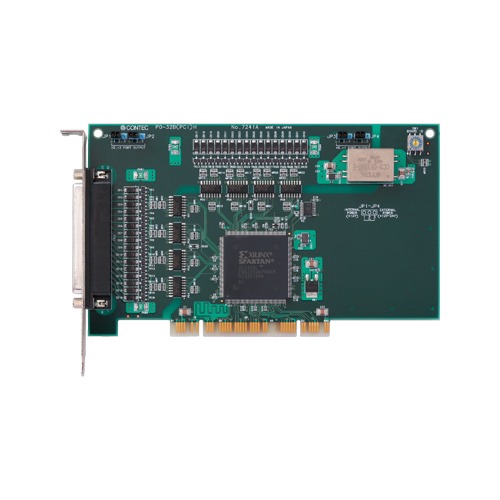

PO-32B(PCI)H

  • A different external power supply can be used for each common pin as it is shared by 16 channels.
  • Opto-coupler bus isolation
  • Windows/Linux support device driver
  • Zener diode connected to output transistors for protection from surge voltage

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: PO-32B(PCI)H Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a PCI bus-compliant interface board for output of digital signals. This product can output digital signals at 12 – 24VDC. PO-32B(PCI)H features 32 opto-coupler isolated open-collector outputs. In addition, this product is equipped with a power supply for driving opto-couplers (12 VDC) and output transistorprotection circuit (surge voltage protection and overcurrent protection).Windows/Linux device driver is supported with this product.

    • A different external power supply can be used for each common pin as it is shared by 16 channels.
      • Because of the common composition of a 16-point unit, each common line can respond to a different external power supply.
    • Opto-coupler bus isolation
      • As the PCI bus (PC) is isolated from the input and output interfaces by opto-couplers, this product has excellent noise performance.
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
    • Zener diode connected to output transistors for protection from surge voltage
      • Zener diodes are connected to the output circuits to protect against surge voltages. In addition, the output circuit, it attaches the overcurrent protection circuit at the output 8-channel unit. The output rating is max. 35VDC, 100mA per channel.

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI
    Size Short Size
    Used Connector D-SUB 37-pin (Female)
    Digital I/O
    Input Channels –
    Output Channels 32-ch
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) 200μsec (max.)
    Operating Voltage (Input) –
    Operating Voltage (Output) 12 to 24VDC
    Input Circuit –
    Output Circuit Opto-isolated open-collector output (current sink type)
    Built-in Power Supply 12VDC
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    PO-32B(PCI)H Digital output PCI card 32ch (12VDC on-board power supply isolated 12 – 24VDC)
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(98/PC) Windows version Digital I/O Driver
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    API-TIMER(W32) Timer Driver
    API-TIMER(WDM) Windows Driver for Timer Driver
    IO-LIB(WDM) Windows General-purpose I/O Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    VI-DAQ VI Library of data acquisition for LabVIEW
    Expansion Accessory Module
    Item Item Name
    CM-32L Signal monitor Accessory for Digital I/O
    Cable
    Item Item Name
    PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
    PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
    PCB37P 37pin D-type(M) at Each End, Flat Cable
    PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
    Terminal
    Item Item Name
    DTP-3C General Purpose Terminal
    DTP-4C Screw Terminal
    EPD-37 Screw Terminal (M3.5 x 37)
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
