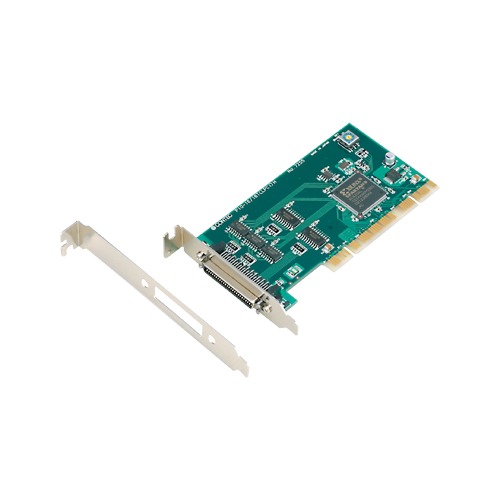

PIO-1616T(LPCI)H_img1PIO-1616T(LPCI)H_img1

PIO-16/16T(LPCI)H

  • TTL-level input/output enabling fast response
  • Capable of receiving 16-channel TTL digital signals
  • Capable of sending 16-channel open-collector digitals
  • You can use all of the input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal
  • The board has a digital filter feature to prevent noise or chatter from causing erroneous inputs
  • Up to 30VDC, 40mA per signal, max. output

Data Sheet PDF

SKU: PIO-16/16T(LPCI)H Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This board is a Low Profile PCI-compliant interface board for input/output of digital signals. The board can input/output TTL-level digital signals. PIO-16/16T(LPCI)H can input and output up to 16 channels. With the Windows version, the Linux version driver (API-PAC(W32)). Bracket appending for standard PCI slots.

  • TTL-level input/output enabling fast response
  • Capable of receiving 16-channel TTL digital signals
  • Capable of sending 16-channel open-collector digitals
  • You can use all of the input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal
  • The board has a digital filter feature to prevent noise or chatter from causing erroneous inputs
  • Up to 30VDC, 40mA per signal, max. output

Specifications

Specifications
Add-on Module
Series
Bus Specification PCI
Size Low Profile
Used Connector Miniature ribbon 50-pin
Digital I/O
Input Channels 16-ch
Output Channels 16-ch
Bi-directional I/O Channels –
Response Time (Input) 200nsec (max.)
Response Time (Output) 200nsec (max.)
Operating Voltage (Input) 5VDC-TTL
Operating Voltage (Output) 5VDC-TTL
Input Circuit Non-isolated TTL level input (Negative logic)
Output Circuit Non-isolated TTL open-collector output (Negative logic)
Built-in Power Supply –
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
PIO-16/16T(LPCI)H Digital I/O Low Profile PCI card 16ch/16ch (non-isolated 5VDC-TTL)
  • CE marking
  • VCCI
Options
Device Drivers
Item Item Name
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver
Development Support Tools
Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW
Expansion Accessory Module
Item Item Name
CM-32L Signal monitor Accessory for Digital I/O
Cable
Item Item Name
PCA50PS-P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type)
PCB50PS-P Both sides with connector shield cable for 50pin miniature ribbon connectors
PCE50/37PS-0.5P 50 pin miniature ribbon –> 37 pin D-SUB conversion shield cables(Mold type, 0.5m)
Terminal
Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
EPD-50A Screw Terminal (M3 x 50)
Extended Warranty Service
Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
