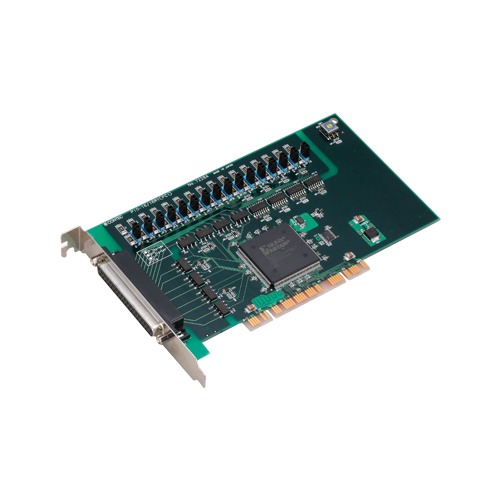

PIO-1616RY(PCI)_img1PIO-1616RY(PCI)_img1

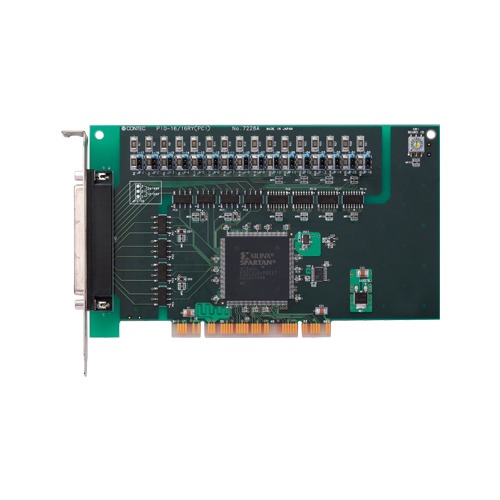

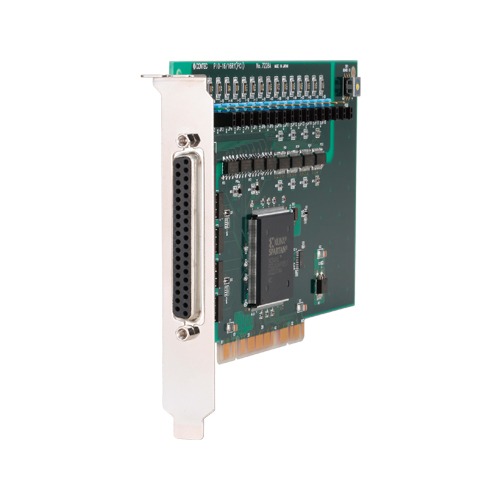

PIO-16/16RY(PCI)

  • It corresponds also to digital output apparatus with a maximum of 1mA leak current.
  • All input 16 points are interrupted and use is possible as an input.
  • Digital filter functional equipment which prevents an incorrect input.
  • A 16-point output of the digital signal to 120VAC/DC is possible.
  • A drive of the load of a maximum of 100mA per point is possible.

Data Sheet PDF

SKU: PIO-16/16RY(PCI) Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is the interface board of the PCI bus conformity which outputs and inputs a digital signal. The Opto-isolated input of 16 points and the semiconductor relay output of 16 points can be performed. The Windows version, the Linux version driver (API-PAC(W32)) appending.

  • It corresponds also to digital output apparatus with a maximum of 1mA leak current.
  • All input 16 points are interrupted and use is possible as an input.
  • Digital filter functional equipment which prevents an incorrect input.
  • A 16-point output of the digital signal to 120VAC/DC is possible.
  • A drive of the load of a maximum of 100mA per point is possible.

Specifications

Specifications
Add-on Module
Series
Bus Specification PCI
Size Short Size
Used Connector D-SUB 37-pin (Female)
Digital I/O
Input Channels 16-ch
Output Channels 16-ch
Bi-directional I/O Channels –
Response Time (Input) 200μsec (max.)
Response Time (Output) 1msec (max.)
Operating Voltage (Input) 24 to 48VDC; 12 to 24VDC
Operating Voltage (Output) to 120VAC / VDC
Input Circuit Opto-isolated input (for both current sink and source output)
Output Circuit Semiconductor relay output
Built-in Power Supply –
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
PIO-16/16RY(PCI) Digital I/O PCI card 16ch/16ch (semiconductor relay – 120VAC / VDCisolated 12 – 24VDC；24 – 48VDC)
  • CE marking
  • VCCI
Options
Device Drivers
Item Item Name
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB General I/O Driver
IO-LIB(WDM) Windows General-purpose I/O Driver
Development Support Tools
Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW
Expansion Accessory Module
Item Item Name
CM-32L Signal monitor Accessory for Digital I/O
Cable
Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
Terminal
Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
Extended Warranty Service
Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
