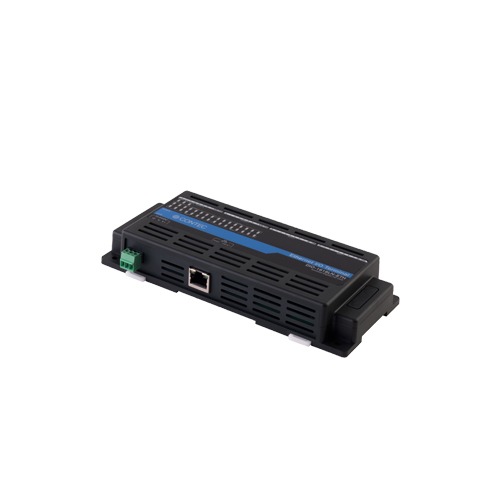

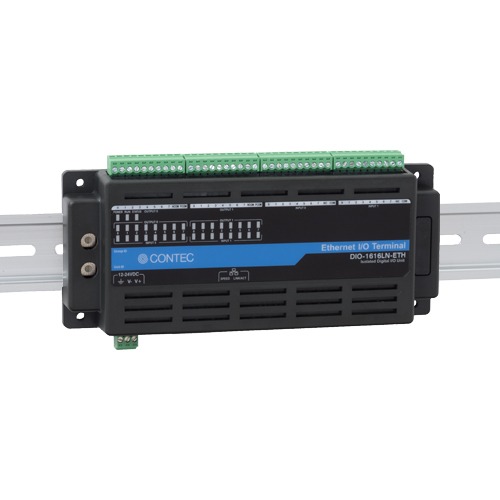

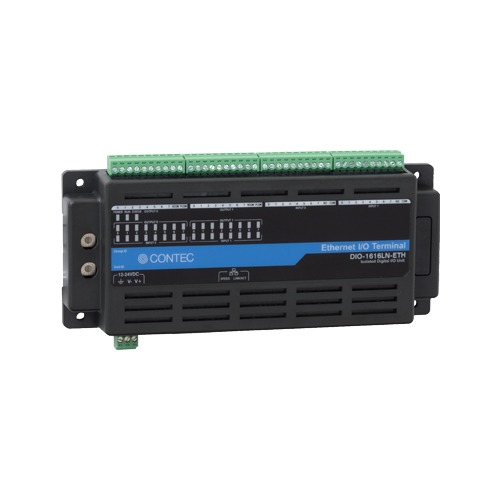

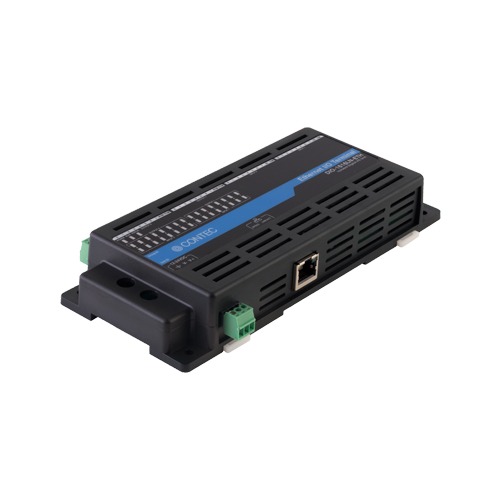

This product is an Ethernet-compliant digital I/O Unit used to provide a digital signal I/O function from PC LAN port.Digital signals can be input and output at 12 – 24VDC.16 channels of Optocoupler isolated inputs (compatible with both current sink and current source outputs) and 16 channels of Optocoupler isolated open-collector outputs (compatible with current sink type) are equipped. Up to eight channels are used as an interrupt. Also, including a digital filter function which prevents wrong recognition of input signals, output transistor protection circuit (surge voltage protection and over current protection), and the fail-safe function which changes outputting to the specified pattern when communication errors occur.Compact design, (188.0(W)×78.0(D)×30.5(H)mm), features flexibility in installation. The product can be set on the floor, wall, and inside the console or equipment with the DIN rail.Windows/Linux device driver is supported with this product.
| Series | USB N(Compact) |
|---|---|
| Bus Specification | Ethernet |
| Size | N Type |
| Used Connector | 4x 3.5mm-pitch 10-pin 2-piece terminal block |
| Input Channels | 16-ch |
|---|---|
| Output Channels | 16-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 200μsec (max.) |
| Response Time (Output) | 200μsec (max.) |
| Operating Voltage (Input) | 12 to 24VDC |
| Operating Voltage (Output) | 12 to 24VDC |
| Input Circuit | Opto-isolated input (for sink current output); Opto-isolated input (for source current output) |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Built-in Power Supply | – |
| Supported OS | Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Linux |
|---|
| Model | Description | Certification |
|---|---|---|
| DIO-1616HN-ETH | N Series for Ethernet Isolated Digital I/O Unit 16ch DI, 16ch DO, (12 – 24VDC) |
|
| Item | Item Name |
|---|---|
| API-CAP(W32) | Windows version Driver Library for F&eIT I/O module |
| API-DIO(LNX) | Linux version Digital I/O Driver |
| API-DIO(WDM) | Windows Driver for Digital I/O Driver |
| Item | Item Name |
|---|---|
| ACX-PAC(W32) | ActiveX components sets for measurement system development |
| DAQ-DNC-FE | A collection of .NET components for DAQfast measurement system development. |
| DAQ-LV-WIN | LabVIEW Data Acquisition Library |
| VI-DAQ | VI Library of data acquisition for LabVIEW |
| Item | Item Name |
|---|---|
| CPS-PWD-15AW12-01 | CONPROSYS 12VDC Power Supply Unit |
| CPS-PWD-30AW24-01 | CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit |
| CPS-PWD-90AW24-01 | CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit |
| POA201-10-2 | AC adaptor (12V,1A) |
| Item | Item Name |
|---|---|
| CPS-MAG01-4 | Magnet (Four Piece Set) |
