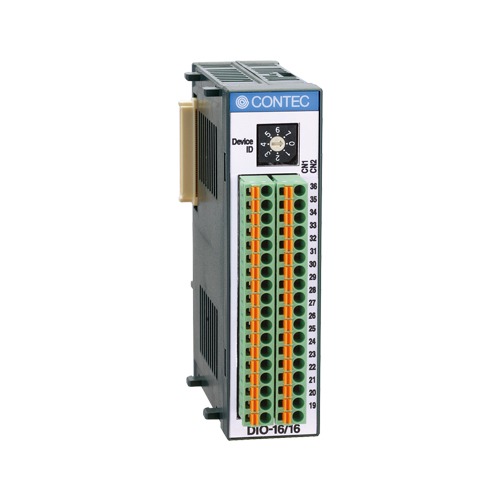

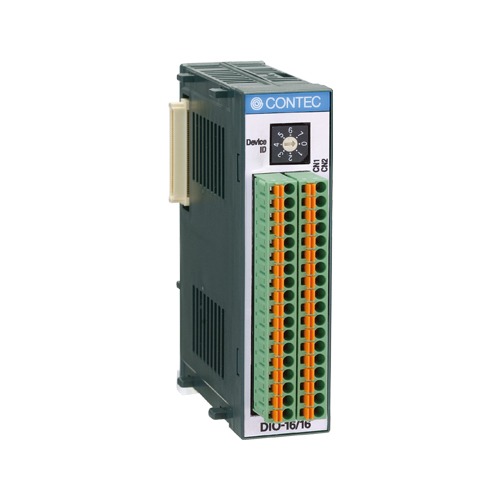

This product is an expansion module (device module) that adds digital signal I/O interfaces to one of various types of controllers. The product is used in combination with the I/O controller module < CPU-CAxx(FIT)GY > (*1) or BOX-PC < BX-300-DC5xxx > (*1) or microcontroller unit < CPU-SBxx(FIT)GY > (*1) in the F&eIT Series. This product can perform a maximum of 16 points of opto-isolated input and 16 points of opto-isolated output per module. (Input: 12 – 24 VDC specified, output: 12 – 48 VDC specified)
| Series | F&eIT |
|---|---|
| Bus Specification | F&eIT stack bus |
| Size | F&eIT 1U |
| Used Connector | – |
| Input Channels | 16-ch |
|---|---|
| Output Channels | 16-ch |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 1msec (max.) |
| Response Time (Output) | 1msec (max.) |
| Operating Voltage (Input) | 12 to 24VDC |
| Operating Voltage (Output) | 12 to 48VDC |
| Input Circuit | Opto-isolated input (for both current sink and source output) |
| Output Circuit | Opto-isolated open-collector output (current sink type) |
| Built-in Power Supply | – |
| Supported OS | – |
|---|
| Model | Description | Certification |
|---|---|---|
| DIO-16/16(FIT)GY [Limited Stock] | [End of Repair Service : December 15, 2031] Digital I/O F&eIT I/O module 16ch/16ch (isolated 12 – 24VDC) |
|
