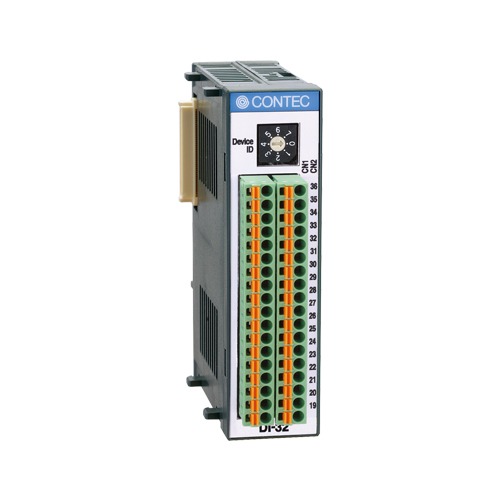

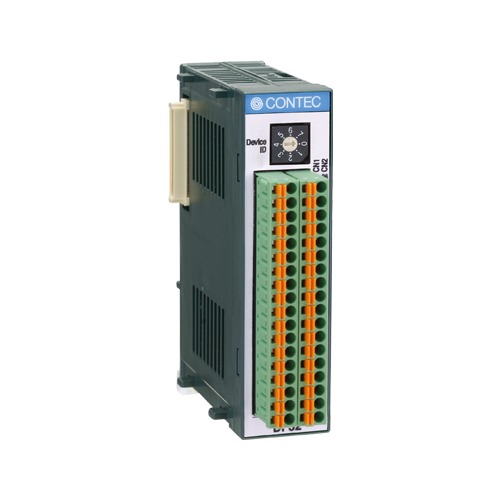

This product is an expansion module (device module) that adds digital signal I/O interfaces to one of various types of controllers. The product is used in combination with the I/O controller module < CPU-CAxx(FIT)GY > (*1) or BOX-PC < BX-300-DC5xxx > (*1) or microcontroller unit < CPU-SBxx(FIT)GY > (*1) in the F&eIT Series.This product can perform a maximum of 32 points of opto-isolated input per module. (Input: 12 – 24 VDC specified)
| Series | F&eIT |
|---|---|
| Bus Specification | F&eIT stack bus |
| Size | F&eIT 1U |
| Used Connector | – |
| Input Channels | 32-ch |
|---|---|
| Output Channels | – |
| Bi-directional I/O Channels | – |
| Response Time (Input) | 1msec (max.) |
| Response Time (Output) | – |
| Operating Voltage (Input) | 12 to 24VDC |
| Operating Voltage (Output) | – |
| Input Circuit | Opto-isolated input (for both current sink and source output) |
| Output Circuit | – |
| Built-in Power Supply | – |
| Supported OS | – |
|---|
| Model | Definition |
|---|---|
| Digital input CONPROSYS nano Series I/O module 8ch (isolated 12 to 24VDC) CPSN-DI-08L Digital input CONPROSYS nano Series I/O module 16ch (12VDC on-board power supply isolated 12 to 24VDC) CPSN-DI-16BCL |
For details, please see datasheets and manuals. |
| Model | Description | Certification |
|---|---|---|
| DI-32(FIT)GY [Limited Stock] | [End of Repair Service : December 15, 2031] Digital input F&eIT I/O module 32ch (isolated 12 – 24VDC) |
|
