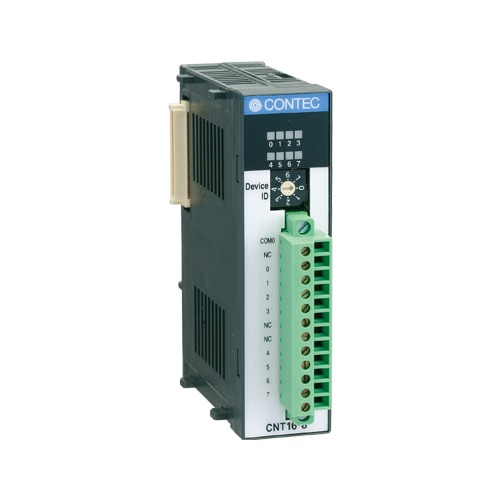

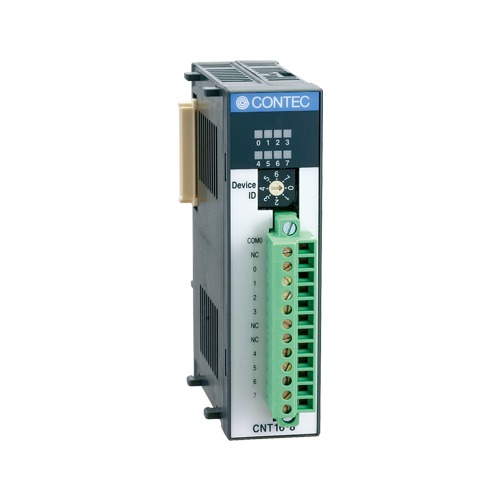

CNT16-8(FIT)GY_img1CNT16-8(FIT)GY_img1

CNT16-8(FIT)GY

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CNT16-8(FIT)GY Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    CNT16-8(FIT)GY is the module for expansion (device module) which inputs the pulse signal from external equipment and carries out a rise count. It is used for I/O controller module CPU-CAxx(FIT)GY of F&eIT series, and microcontroller unit CPU-SBxx(FIT)GY, connecting. The pulse signal by Opto-isolated of a maximum of eight points is countable by one module. An external supply power supply can be used in the range of 12 to 24VDC.

      • The 16-bit rise count for eight channels can be performed.
      • Noise-protection nature is improving by Opto-isolated input and output.
      • The digital filter is carried in order to prevent the incorrect count by the chattering of an input pulse.
      • Device ID can be set up with a rotary switch and apparatus number management can be performed easily.
      • This module is equipped with 35mmDIN rail attachment mechanism as standard like other F&eIT series products. Moreover, the connection with a controller module can constitute a system simply and smartly without using connection apparatus, such as a backplane board, since it has unique composition which carries out a stack connection on the side.

    Specifications

    Specifications
    Add-on Module
    Series F&eIT
    Bus Specification F&eIT stack bus
    Size F&eIT 1U
    Used Connector –
    Counter
    Number of Channels 8-ch
    Counting System 16-bit Up count
    Response speed 5KHz
    Supported OS
    Supported OS –
    • *The supported OS depends on connected controllers (CPU-CA20, BX-320 etc.).

    Ordering Informations

    Replacement Product
    Model Definition
    Counter CONPROSYS nano Series I/O module 1ch (32bit Up/Down count 500kHz) / rotary encoder and linear scale interface / Isolated
    CPSN-CNT-3201I    		 For details, please see datasheets and manuals.
    Ordering Information
    Model Description Certification
    CNT16-8(FIT)GY [Limited Stock] [End of Repair Service : December 15, 2031] Counter F&eIT I/O module 8ch (16bit Up count 5kHz) / Isolated
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Coupler module
    Item Item Name
    CPU-CA20(FIT)GY F&eIT Remote I/O – Communication Coupler / 1x LAN
    Embedded Computer
    Item Item Name
    BX-320 Box Computer BX-300 – Fanless Embedded PC / DIN Rail Mountable / F&eIT Bus / PCIe Bus / Atom E3845 (BayTrail SoC) / DC Power Supply
    Extended Warranty Service
    Item Item Name
    ESP-F5 Extended warranty service package (5 years service course) (Japan only)
    ESP-S1 Extended warranty service package (Extension one year) (Japan only)
