CNT24-2(FIT)GY_img1CNT24-2(FIT)GY_img1

CNT24-2(FIT)GY

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CNT24-2(FIT)GY Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

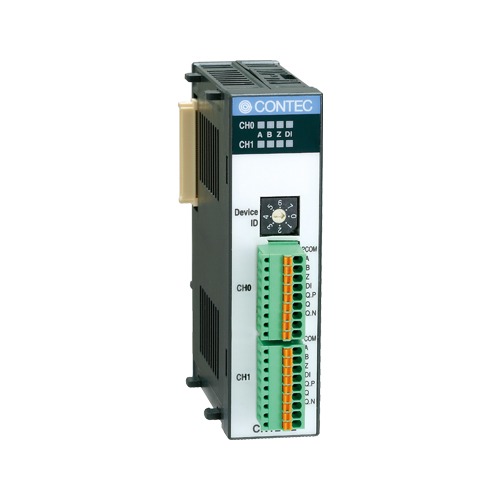

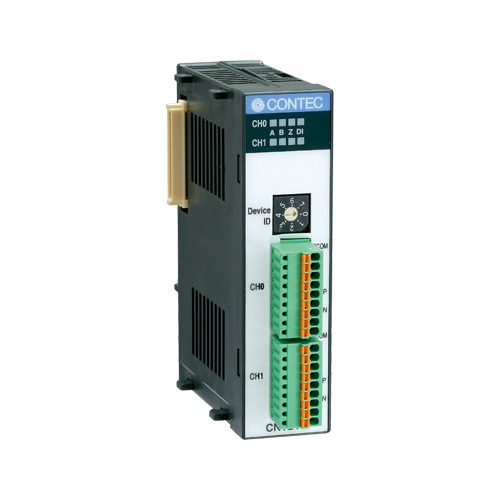

    This product is applicable to positioning control combining the count of a high-speed pulse signal, and an encoder. It connects with the controller module of F&eIT series, and a system can be built, or it can connect with CNT24-2(USB) GY, and an input channel can be added. Moreover, since CPU which controls an external signal and a module has isolated with the digital isolator, it does not have electric influence of external on a host computer as it is.

      • The 24-bit up/down count for two channels can be performed.
      • 2 phase pulse signals, such as a rotary encoder or a linear gauge, are countable.
      • It has equipped the general-purpose I/O signal each one channel.
      • Since Device ID can be set up with a rotary switch, management of apparatus number can be performed easily.
      • A special tool was not needed but wiring has adopted the easy screw-less connector plug.
      • The module main part is equipped with 35mmDIN rail attachment mechanism as standard like other F&eIT series products. Moreover, since the connection to a controller unit has unique composition with a stack connection on the side, it does not use connection apparatus, such as a back plain board, can constitute a system simply and smartly.

    Specifications

    Specifications
    Add-on Module
    Series F&eIT
    Bus Specification F&eIT stack bus
    Size F&eIT 1U
    Used Connector –
    Counter
    Number of Channels 2-ch
    Counting System 24-bit Up/Down count
    Response speed 500KHz
    Supported OS
    Supported OS –
    • *The supported OS depends on connected controllers (CPU-CA20, BX-320 etc.).

    Ordering Informations

    Replacement Product
    Model Definition
    Counter CONPROSYS nano Series I/O module 1ch (32bit Up/Down count 500kHz) / rotary encoder and linear scale interface / Isolated
    CPSN-CNT-3201I    		 For details, please see datasheets and manuals.
    Ordering Information
    Model Description Certification
    CNT24-2(FIT)GY [Limited Stock] [End of Repair Service : December 15, 2031] Counter F&eIT I/O module 2ch (24bit Up/Down count 500kHz) / Incremental encoder interface / Isolated
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Coupler module
    Item Item Name
    CPU-CA20(FIT)GY F&eIT Remote I/O – Communication Coupler / 1x LAN
    Embedded Computer
    Item Item Name
    BX-320 Box Computer BX-300 – Fanless Embedded PC / DIN Rail Mountable / F&eIT Bus / PCIe Bus / Atom E3845 (BayTrail SoC) / DC Power Supply
    Extended Warranty Service
    Item Item Name
    ESP-F5 Extended warranty service package (5 years service course) (Japan only)
    ESP-S1 Extended warranty service package (Extension one year) (Japan only)
