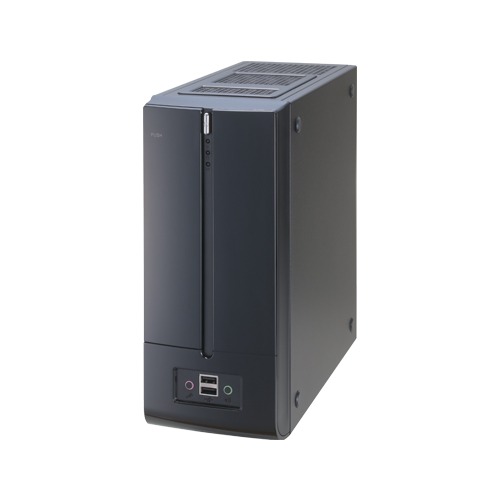

This product is a high-performance industrial computer equipped with the 6th-generation Intel ® Core ™ processor. It has extension interfaces such as DVI-I, HDMI, DisplayPort, 1000BASE-T, USB 3.0, serial and Audio. These Units are ideal for a wide range of embedded applications, such as control devices and information terminals based on general-purpose PC OSes. Embedded-type chipset and CPU have been adopted. The use of readily available parts ensures the ease of the use of the product.
| Mounting | Desktop |
|---|
| Supported OS | Windows 10 IoT Enterprise 2019 LTSC 64-bit; Windows 10 IoT Enterprise 2019 LTSC 64-bit with Microsoft Edge (Chromium); Windows 10 IoT Enterprise LTSB 2016 64-bit; Windows 7 Professional (FES) 64-bit; Windows 7 Professional (FES) 32-bit |
|---|
| CPU Generation (Development code) | 6th Gen. (Skylake-S) |
|---|---|
| Processor | Core i7-6700TE; Core i5-6500TE; Celeron G3900TE |
| CPU socket | LGA1151 |
| Memory | 16GB; 8GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0 |

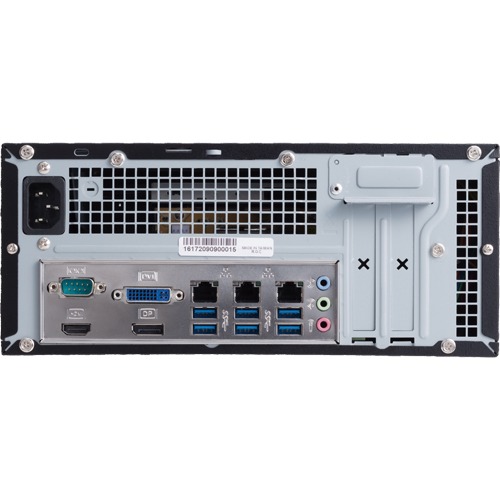

| Video | 1x DisplayPort; 1x HDMI; 1x DVI-I |
|---|---|
| LAN | 3x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Line in; 1x Mic-in |
| I/O | 6x USB3.2 Gen1 (USB3.0); 2x USB2.0; 1x RS-232C/422A/485 |
| Memory card | – |
| Expansion bus | 1x PCI Express(x16) |
|---|---|

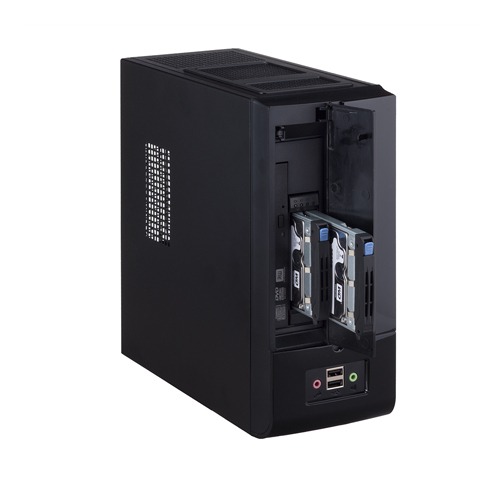

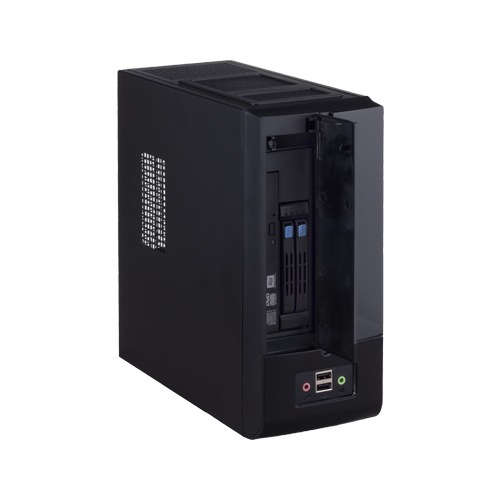

| Drive bay | 2x 2.5-inch bay (SATA) |
| Input voltage | 100 to 240VAC |
|---|
| Operating temperature | 5 to 40°C (41 to 104°F) |
|---|---|
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Standards & Certifications | CCC; CE; FCC Class A; UKCA; VCCI Class A |
| Model | Definition |
|---|---|
| Industrial Computer VPC-720 – Ultra Small / 13th Gen. Intel® Core™ Processor (Raptor Lake) VPC-720 |
For details, please see datasheets and manuals. |
| Model | Description | Certification |
|---|---|---|
| VPC-700 [Limited Stock] | [End of Repair Service : July 24, 2031] Industrial Computer VPC-700 – Ultra Small / 6th Gen. Intel Core (Skylake) / 1x Low Profile PCIe(x16) |
|
| VPC-700 (CCC Cetificated Model) [Limited Stock] | [End of Repair Service : July 24, 2031] Industrial Computer VPC-700 – Ultra Small / 6th Gen. Intel Core (Skylake) / 1x Low Profile PCIe(x16) |
|
This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation.
CCC Cetificated Model :If bold components are selected, CCC certificated model will be provided.
| CPU |
|
|---|---|
| Memory |
|
| Storage |
|
| OS |
|
| Extension COM Port Option |
|

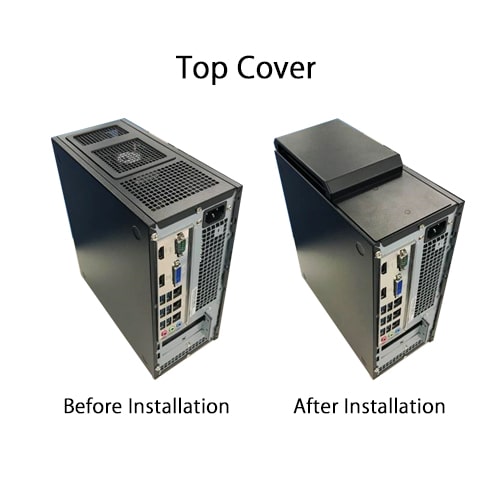

| Top Cover |
|
| CCC Certification |
|
※ There are combinations that cannot be configured. Please inquire in detail.
※ In case of above CCC model, if HDD is selected Linux Ubuntu will be pre-installed for system check (not supported) and if SSD the OS will be Windows 10. ※ In case of above CCC model, in addition to 125V AC cable, 250V AC cable in compliant with CCC will be also included.
※ Upon customers’ requirement, any other CCC certificated model can be provided. For more details, please ask.
