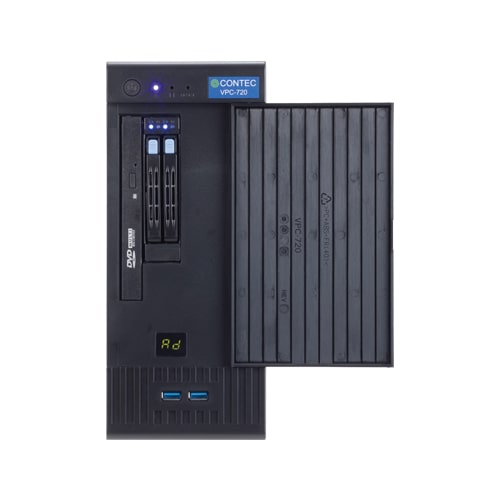

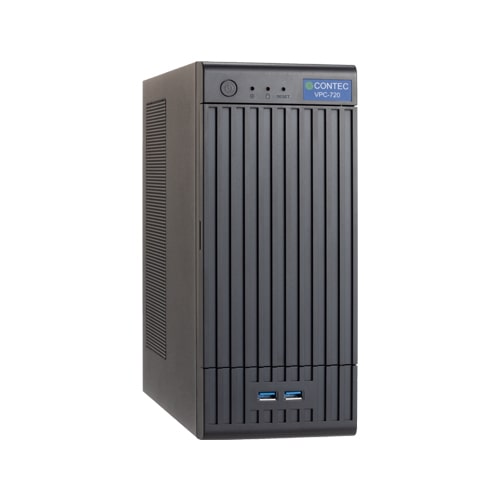

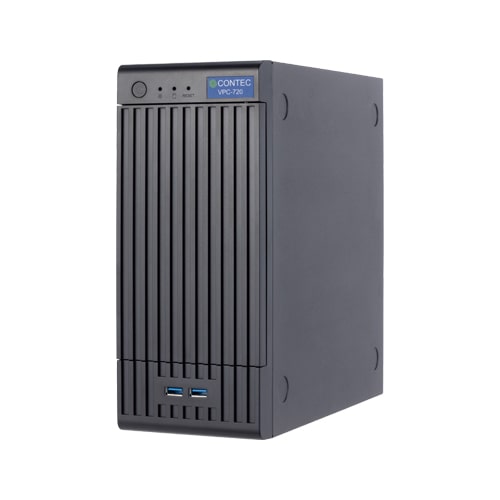

This product is a high-performance embedded-type personal computer equipped with the 13th-generation Intel® Core™ processor. It has extension interfaces such as HDMI, DisplayPort, 2.5GBASE-T, 1.0GBASE-T, USB 3.2 Gen1 (USB 3.0), serial and Audio. These Units are ideal for a wide range of embedded applications, such as control devices and information terminals based on general-purpose PC OSes. Embedded-type chipset and CPU have been adopted. The use of readily available parts ensures the ease of the use of the product.

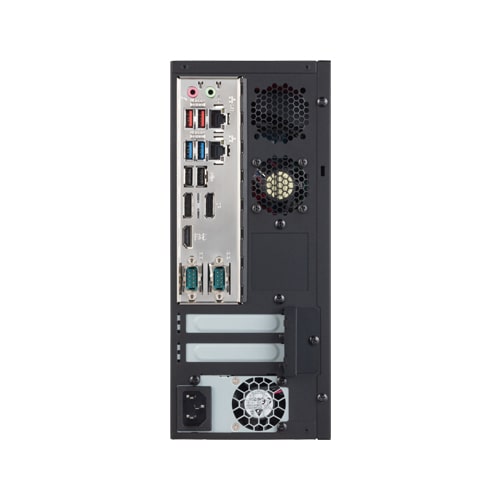

It has a variety of extended interface such as PCI Express (×16) x 1slot, HDMI x 1, DisplayPort x 2, 2.5GBASE-T x 1, 1.0GBASE-T x 1, USB 3.2 Gen1 (USB 3.0) x 6, USB 2.0 x 2, serial (RS-232C/RS-422A/RS-485) x 2, Audio. Selectable configuration lets you choose from 2.5GBASE-T × 1 or serial RS-232C × 2 interfaces.

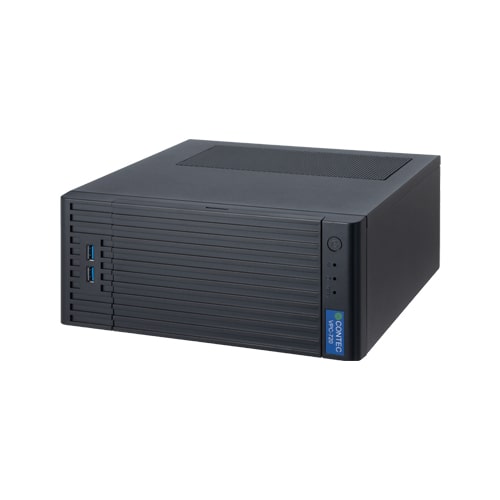

| Mounting | Desktop |
|---|
| Supported OS | Windows 11 IoT Enterprise LTSC 2024; Windows 10 IoT Enterprise 2021 LTSC 64-bit |
|---|
| CPU Generation (Development code) | 13th Gen. (Raptor Lake-S); 12th Gen. (Alder Lake-S) |
|---|---|
| Processor | Core i7-13700TE; Core i5-13500TE; Core i3-13100TE; Celeron G6900TE |
| CPU socket | – |
| Memory | up to 32GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0 |
| Video | 2x DisplayPort; 1x HDMI |
|---|---|
| LAN | 1x 2500BASE-T/1000BASE-T/100BASE-TX/10BASE-T; 1x 1000BASE-T/100BASE-TX/10BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Mic-in |
| I/O | 6x USB3.2 Gen1 (USB3.0); 2x USB2.0; 2x RS-232C/422A/485 |
| Memory card | – |
| Expansion bus | 1x PCI Express(x16) |
|---|---|

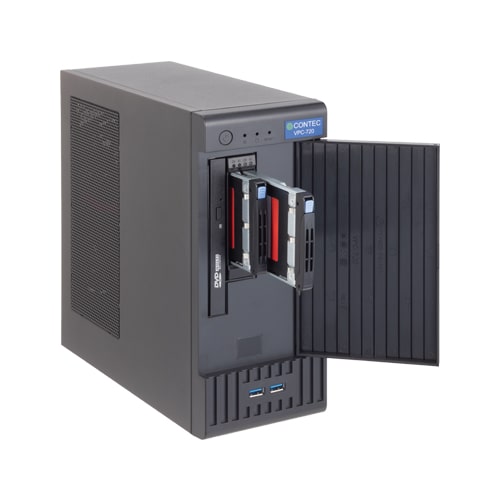

| Drive bay | 2x 2.5-inch bay (SATA) |
| Input voltage | 100 to 240VAC |
|---|
| Operating temperature | 5 to 40°C (41 to 104°F) |
|---|---|
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Standards & Certifications | CCC; CE; FCC Class A; UKCA; UL/cUL; VCCI Class A |
| Model | Description | Certification |
|---|---|---|
| VPC-720 | Industrial Computer VPC-720 – Ultra Small / 13th Gen. Core Processor (Raptor Lake) |
|
This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation.
| CPU |
|
|---|---|
| Memory |
|
| Storage 1 (2.5 inch Removable-Bay, Upper section) |
|
| Storage 2 (2.5 inch Removable-Bay, Lower section) |
|
DVD Super Multi Drive |
|
| RAID |
|
| OS |
|
| Extension Port Option |
|
| Safety Regulation *2 |
|
