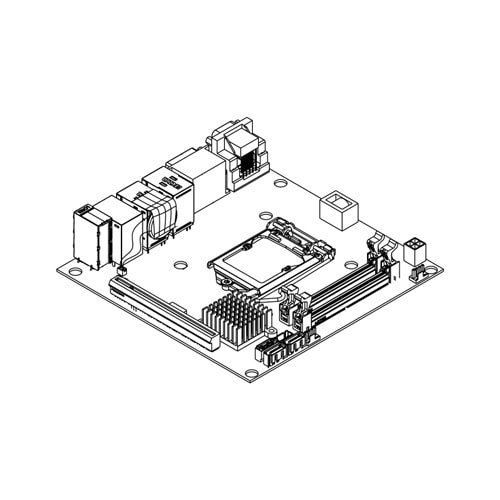

SMB-IQ1710-3LVA_img1SMB-IQ1710-3LVA_img1

SMB-IQ1710-3LVA

  • Uses processors from the sixth and seventh generations of the Intel® Core™ processor family
  • Supports three-screen output
  • A wide range of power supplies (10.8 to 26.4VDC) supported
  • Rich variety of interfaces for freely expandable peripherals
  • Supports Windwos 10 and Windows 7 (Windows 7 is supported only when equipped with a processor from the sixth generation of the Intel® Core™ processor family)

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: SMB-IQ1710-3LVA Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

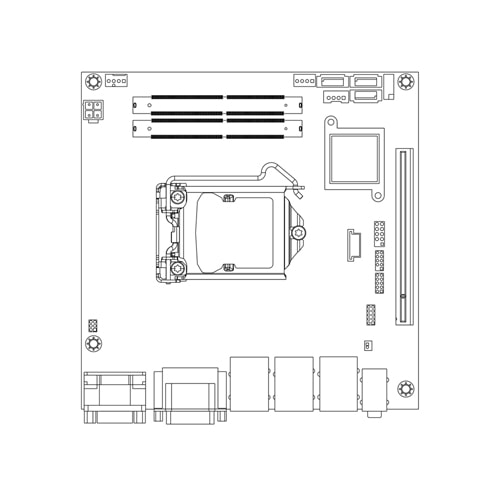

    This product is a high-performance Mini-ITX motherboard equipped with an Intel® Q170 PCH.It can be equipped with processors from the sixth and seventh generations of the Intel® Core™ processor family.It can be equipped with a maximum of 32GB worth of DDR4 SDRAM memory and is equipped with various interfaces such as DVI-I, HDMI, DisplayPort, LAN, USB 3.0, and RS-232C.Because it supports embedded CPUs, this product can be supplied in a stable manner. In addition, the use of Contec-customized BIOS allows support to be provided at the BIOS level.

    • Uses processors from the sixth and seventh generations of the Intel® Core™ processor family
      • By supporting processors from the sixth and seventh generations of the Intel® Core™ processor family, this product can supply the high performance of four-core CPUs.
    • Supports three-screen output
      • Equipped with DVI-I, HDMI, and DisplayPort interfaces, this product supports three-screen output.
    • A wide range of power supplies (10.8 to 26.4VDC) supported
      • As the product supports a wide range of power (10.8 to 26.4VDC), it can be used in a variety of power environments.
    • Rich variety of interfaces for freely expandable peripherals
      • This product is equipped with expansion interfaces including DVI-I x 1, DisplayPort x 1, HDMI x 1, 1000BASE-T x 3, USB 3.0 x 4, USB 2.0 x 2, serial x 1, and a PCI Express (x16) slot.
    • Supports Windwos 10 and Windows 7 (Windows 7 is supported only when equipped with a processor from the sixth generation of the Intel® Core™ processor family)

    Specifications

    Specifications
    Form Factor
    Type Mini-ITX
    Software Support
    Supported OS Windows 10; Windows 7
    Core System
    CPU Generation (Development code) 7th Gen. (Kaby Lake-S); 6th Gen. (Skylake-S)
    Processor Core i7-7700; Core i7-7700T; Core i7-6700; Core i7-6700TE; Core i5-7500; Core i5-7500T; Core i5-6500; Core i5-6500TE; Core i3-7101E; Core i3-7101TE; Core i3-6100; Pentium G4400; Pentium G4400TE; Celeron G3930E; Celeron G3930TE; Celeron G3900; Celeron G3900TE
    CPU socket LGA1151
    Memory up to 32GB
    RAS Hardware monitor (Temperature / Voltage); Remote power-on; Watchdog timer
    GPU –
    AI Performance –
    Security –
    Interface

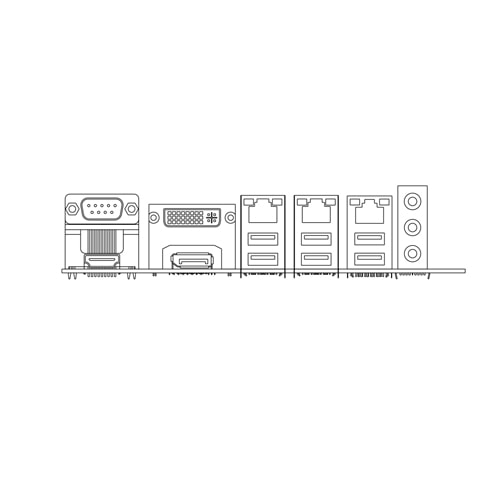

    Video 1x DisplayPort; 1x HDMI; 1x DVI-I
    LAN 3x 1000BASE-T
    Wireless –
    Audio 1x Line out; 1x Line in; 1x Mic-in
    I/O 4x USB3.2 Gen1 (USB3.0); 2x USB2.0; 1x RS-232C
    Memory card –
    Internal Interface
    Video –
    LAN –
    Audio 1x Front audio (1xpin header connector)
    I/O 4x USB2.0; 1x RS-232C
    Power connector 1x SATA power
    Expansion Slot
    Expansion bus 1x PCI Express(x16)
    Drive bay –
    Power
    Input voltage 12 to 24VDC
    Environment
    Operating temperature 0 to 60°C (32 to 140°F) w/ 0.7m/s airflow
    Storage temperature -10 to 60°C (14 to 140°F)
    Standards & Certifications

    Ordering Informations

    Replacement Product
    Model Definition
    Industrial Motherboard / Mini-ITX / Intel 10th Gen. Xeon W-1290E (Comet Lake-S + W480E) / 1x PCIe(x16) Expansion Slot
    GMB-IW48000    		 For details, please see datasheets and manuals.
    Ordering Information
    Model Description Certification
    SMB-IQ1710-3LVA [Limited Stock] [End of Repair Service : September 4, 2028] Industrial Motherboard / Mini-ITX / Intel 6th/7th Gen. Core (Skylake/Kaby Lake + Q170) / DC Power Supply
    • CE marking
    • FCC compliant
    • VCCI
