GMB-IW48000_img1GMB-IW48000_img1

GMB-IW48000

  • Better performance and protection
  • Media & Display Features for Premium 4K Content Support
  • Software RAID available
  • Expansion Slot & Extend Peripherals Rich Interface
  • Manageability at the edge

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: GMB-IW48000 Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    GMB-IW48000 MB supports up to 64GB DDR4-2666 SO-DIMM with ECC available to detect and repair errors that cause data corruption and system crashes. Moreover, software RAID (Redundant Array of Independence Disks) function is supported to ensure data security and backup requirements.The Product up to 10 cores and 20 threads for improved throughput, LGA 1200 socket scalability, embedded use conditions, and long-term product availability, 10th Gen Intel Core processors provide a solid foundation for IoT platforms.

    • Better performance and protection
      • GMB-IW4800 design base on Comet Lake-S platform features up to 10 cores, hyper threading on all models, single-core turbo boost up to 5.3GHz which is 300MHz higher, all-core turbo boost up to 4.9 GHz, DDR4-2933 memory support for the i7 and i9, and DDR4-2666 for i3, and also 10th Gen Intel® Core™ i3 and Intel Xeon W-1200E Series processors include error-correcting code (ECC) capabilities
        ECC memory supported
        Intel Xeon® W-1290E/W-1290TE
        Intel Xeon® W-1270E/W-1270TE
        Intel Xeon® W-1250E/W-1250TE
        Intel® Core™ i3-10100E/10100TE
        Non-ECC memory supported
        Intel® Core™ i9-10900E/10900TE
        Intel® Core™ i7-10700E/10700TE
        Intel® Core™ i5-10500E/10500TE
    • Media & Display Features for Premium 4K Content Support
      • Support for three simultaneous, independent displays Edge devices with a 10th Gen Intel Core processor inside have three external device driver interface (DDI) ports, allowing you to connect to up to three different 4K displays. Each DDI port includes built-in high-bandwidth digital content protection to help you defend data in transit against breaches.
    • Software RAID available
      • GMB-IW48000 build-in 4 SATA connector support RAID 0, 1 ,5,10 level function. When connecting 2 to 4 HDD or SSD storage device allows customers to expand the capacity and do storage devices maintenance easily. Moreover, the RAID function can guarantee data security and fulfill backup requirement.
    • Expansion Slot & Extend Peripherals Rich Interface

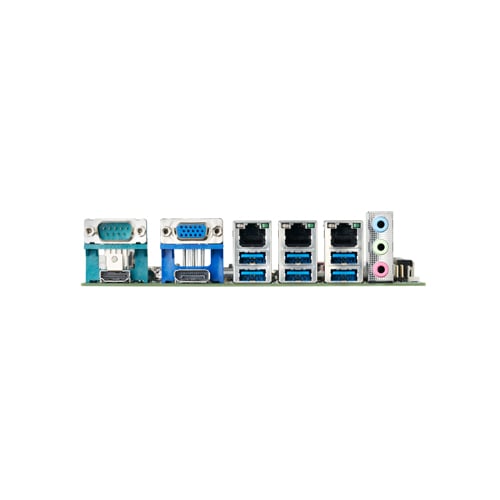

      • This product has 3 kinds expansion slots, M.2 key M 2242 and full-sized PCIe x16, as well as interfaces includes VGA, DisplayPort, HDMI, 1000BASE-T × 3, USB3.2 Gen 2 × 6, USB2.0 × 4, serial (RS-232C) × 3, serial (RS-232C/422/485) × 1.
    • Manageability at the edge
      • GMB-IW48000 with Intel® Active Management Technology (Intel® AMT), a feature of the Intel vPro® platform, enables IT to access, maintain, and manage edge devices that are off-site or difficult to physically access—even when the device, hardware, or operating system are powered off or malfunctioning.

    Specifications

    Specifications
    Form Factor
    Type Mini-ITX
    Software Support
    Supported OS Windows 10 IoT Enterprise 2019 LTSC 64-bit
    Core System
    CPU Generation (Development code) 10th Gen. (Comet Lake-S)
    Processor Xeon-1290E; Xeon-1290TE; Xeon-1270E; Xeon-1270TE; Xeon-1250E; Xeon-1250TE; Core i9-10900E; Core i9-10900TE; Core i7-10700E; Core i7-10700TE; Core i5-10500E; Core i5-10500TE; Core i3-10100E; Core i3-10100TE
    CPU socket LGA1200
    Memory up to 64GB
    RAS Hardware monitor (Temperature / Voltage); Watchdog timer
    GPU
    AI Performance
    Security TCG TPM 2.0
    Interface
    Video 1x DisplayPort (v1.4); 1x HDMI; 1x Analog RGB
    LAN 3x 1000BASE-T
    Wireless
    Audio
    I/O 6x USB3.2 Gen2 (USB3.0)
    Memory card
    Internal Interface
    Video
    LAN
    Audio 1x Line out; 1x Line in; 1x Mic-in
    I/O 4x USB2.0; 3x RS-232C; 1x RS-232C/422A/485
    Power connector 1x 24-pin ATX; 1x 8-pin ATX 12V
    Expansion Slot
    Expansion bus 1x M.2 Key E (2230); 1x M.2 Key M (2280); 1x PCI Express(x16)
    Drive bay
    Power
    Input voltage 3.3VDC; 5VDC; 5VDC (stand by); 12VDC
    Environment
    Operating temperature 0 to 60°C (32 to 140°F)
    Storage temperature -40 to 80°C (-40 to 176°F)
    Standards & Certifications CE; FCC Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    GMB-IW48000 Mini-ITX, Intel® 10th Gen., W480E Express, (LGA1200) Supported ECC or Non-ECC, DDR4 SO-DIMM
    • CE marking
    • FCC compliant
    Option Accessory
    Cables
    • COM Port Cable
    • SATA Cable
    • USB Cable
