csm_EHTHC1_0a63d4b4e2csm_EHTHC1_0a63d4b4e2

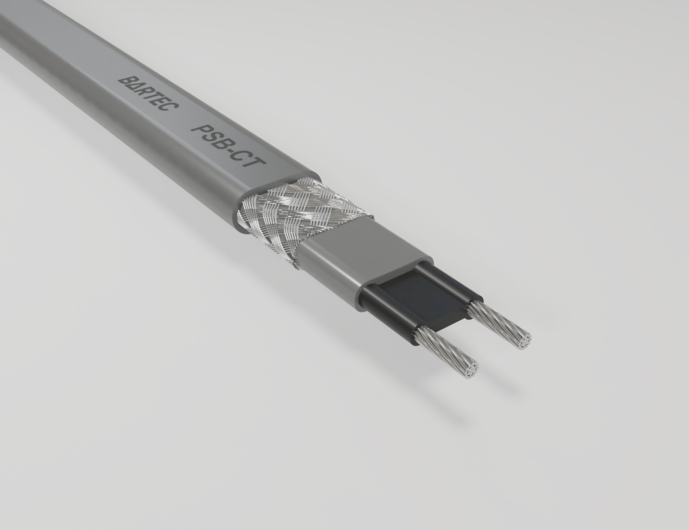

Self-regulating heating cable PSB

Low temperature, self-regulating parallel heating cable
07-5853-….
  • Self-regulating
  • Can be cut at random length thanks to its parallel current supply
  • Corrosion-proof and resistant to effects of chemicals thanks to its protective jacket
  • Electrically and mechanically protected by a tinned copper braid
  • Simple installation thanks to its high flexibility and favourable dimension
Request Quote


    Email Verification Code (required)



    Description
    Technical Data
    Manuals/Operating Instructions/Guides
    Data Sheets

    The self-regulating heating cable PSB is suitable for frost protection and temperature maintenance on pipes and vessels at low process temperatures in industry and hazardous areas.The power output of the PSB varies depending on the ambient temperature. If the ambient temperature increases, the heating output will be reduced.While the polyolefin protective jacket is for aqueous, inorganic chemicals, the fluoropolymer protective jacket is suitable for organic chemicals.

    Marking

    ATEX:II 2G Ex 60079-30-1 IIC T6, T5 GbII 2D Ex 60079-30-1 IIIC T80 °C, T95 °C Db

    IECEx:Ex 60079-30-1 IIC T6, T5 GbEx 60079-30-1 IIIC T80 °C, T95 °C Db

    CSA:Class I, Div. 2, Groups A, B, C, DClass II, Div. 2, Groups E, F, GClass III

    Ambient Temperature

    Max. continuous operating temperature, energized +65°CMax. continuous exposure temperature, de-energized +85°C

    Certification
    • Cable Certificate ATEX: EN
    • Cable Certificate IECEx: EN
    • Cable Certificate UKEX: EN
    • Attestation of Conformity: EN
    • System Certificate ATEX: EN
    • System Certificate IECEx: EN
    • System Certificate CSA: EN
    • Declaration of Conformity: EN
    • Cable Certificate CCC: CN

    Technical Data

    Nominal voltage AC 208 V to 277 V
    AC 110 to 120 V
    Max. continuous operating temperature, energized +65 °C
    +150°F
    Max. continuous exposure temperature, de-energized +85 °C
    +185°F
    Min. installation temperature -55 °C
    -67°F
    Min. start-up temperature -55 °C
    -67°F
    Temperature class T6: 3PSB2, 5PSB2
    T5: 8PSB2, 10PSB2
    Max. braid resistance 18,2 Ω/km
    Dimensions with braiding and jacket 11.8 x 5.8 mm with polyolefin protective jacket
    11.6 x 5.6 mm with fluoropolymer protective
    jacket
    0.46 in x 0.22 in with polyolefin protective jacket
    0.46 in x 0.23 in with fluoropolymer
    protective jacket
    Min. bending radius 25 mm
    0.98 in

    Manuals/Operating Instructions/Guides

      Installation Instructions PSB, MSB, HSB, HSB+, HTSB – ATEX / IECEx
      Design Guide PSB, MSB System – ATEX / IECEx
      Design Guide PSB, MSB, HSB System – CSA

    Data Sheets

      Data Sheet PSB – ATEX / IECEx
      Data Sheet PSB – CSA
