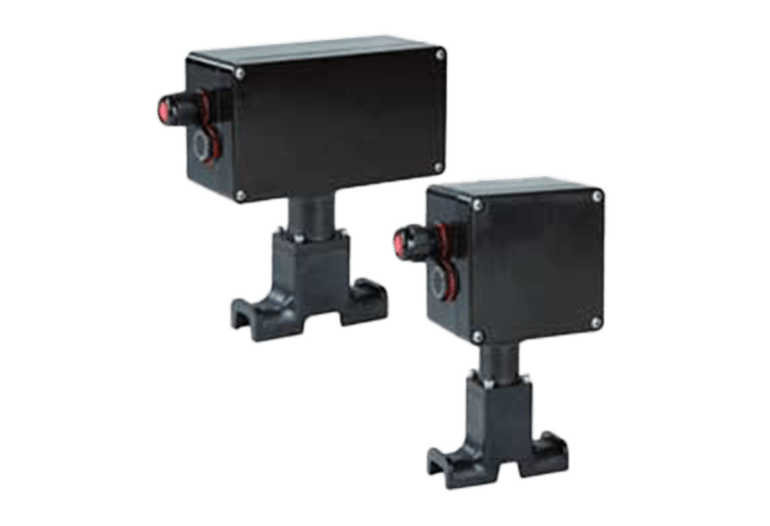

The PBS Single Entry Power junction box is designed to connect one BARTEC parallel heating cable to power or to form a splice or powered splice.The PBM Multiple Entry Power junction box is designed to connect up to three BARTEC parallel heating cables to power or splice up to three trace heaters.Depending on the type, one, two or three CAK or HSK connection and termination kits are included in every PBS and PBM kit.ON Pipe StandPipe mountable power junction box kit, integrating the functions of an insulation entry and power connection kit within a polyester enclosure.OFF Pipe StandOff-pipe mountable power junctionbox for remote mount of power kit with a galvanized steel bracket and mounting plate and a Type 4X certified polyester enclosure. IEK Insulation Entry Kits must be ordered separately.
ATEX:
II 2G Ex eb 60079-30-1 IIC T6…110°C (T4) GbII 2D Ex tb 60079-30-1 IIIC TL80…TL110°C Db
IECEX:
Ex eb 60079-30-1 IIC T6…110°C (T4) GbEx tb 60079-30-1 IIIC TL80…TL110°C Db
-55°C up to +55°C
| Rated Voltage | 277V |
|---|---|
| Protection class | ATEX & IECEx types: IP 66 North America: Type 4X |
| Max. Pipe temperature | On Pipe Version: +240°C Off Pipe Version: +250°C |
| Max. breaker rating | ATEX & IECEx types: 32A, C-Characteristic North America: 40A |
| Terminals | Ex e, Spring Type, 6 mm² / 14 AWG optionally 10 mm² / 12 AWG |
| Materials | Enclosure: Polyester, glass fibre reinforced Stand: PPS, glass fibre reinforced Mounting bracket and plate: galvanized Steel |
