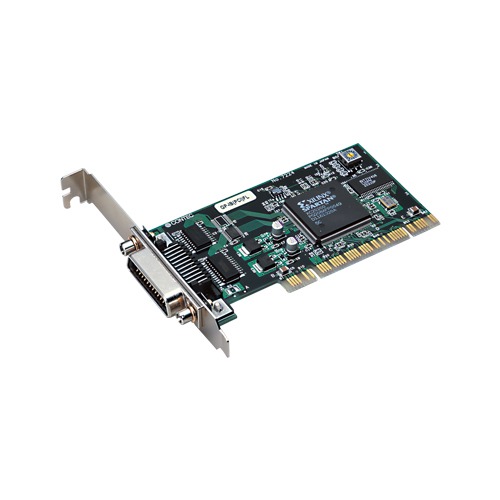

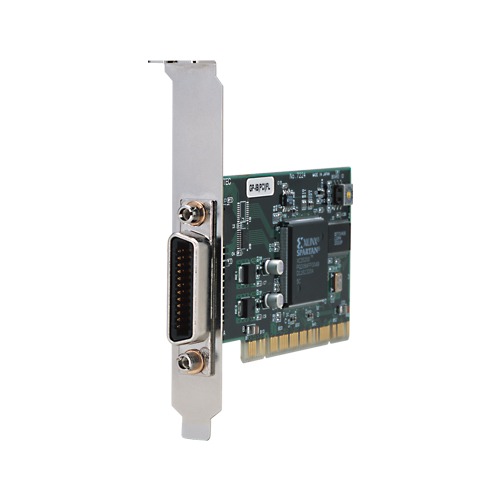

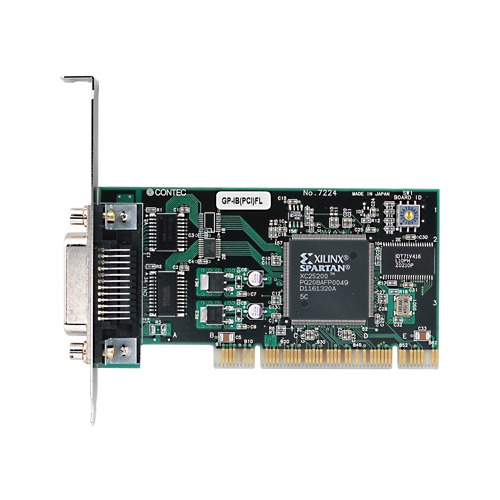

GP-IB(PCI)FL_img1GP-IB(PCI)FL_img1

GP-IB(PCI)FL

  • Capable to communicate with GPIB communication which is compatible to IEEE-488.1/488.2 standards at 1.5 M byte/sec maximum
  • Supports bus master operation
  • Internal 2Kbyte FIFO buffers for send and receive
  • Employs a high speed GPIB controller developed by CONTEC and provides steady-supply
  • Built-in SPAS event function (when slaving)
  • Windows/LabVIEW compatible support software is offered.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: GP-IB(PCI)FL Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a PCI Express bus-compatible interface board with support for bus master operation and which complies with IEEE-488.1 and IEEE-488.2. This product can be used in a PC to control communications with devices that support the GPIB interface and read GPIB bus line data.Windows/LabVIEW device driver is supported with this product.

    • Capable to communicate with GPIB communication which is compatible to IEEE-488.1/488.2 standards at 1.5 M byte/sec maximum
      • Capable to communicate with any equipment which is compatible to IEEE-488.1/488.2 standards with transfer rate at 1.5 Mbyte/sec maximum. Capable to set this product to whether a master (controller) or a slave.
    • Supports bus master operation
      • The bus master data transfer function enables large quantities of data to be transferred between the board and PC without loading the CPU.
    • Internal 2Kbyte FIFO buffers for send and receive
      • The board has separate 2Kbyte FIFO buffers for sending and receiving data, allowing both small and large volumes of data to be transferred at high speed. Interface messages also use a FIFO to enable high-speed transmission.
    • Employs a high speed GPIB controller developed by CONTEC and provides steady-supply
      • This product employs CONTEC’s self-developed high speed GPIB controller (μPD7210 register-compatible), which provides users steady-supply with peace of mind.
    • Built-in SPAS event function (when slaving)
      • In addition to the functions of the earlier GPIB controller (μPD7210), the product also supports the SPAS event generated when a serial poll occurs. This gives users a high level of flexibility in constructing the system.
    • Windows/LabVIEW compatible support software is offered.
      • The support software offered on the CONTEC website makes it possible to create applications of Windows/LabVIEW. In addition, supplies a diagnostic program to confirm hardware operation and to perform a basic communication test with connected equipment.

    Specifications

    Specifications
    Add-on Module
    Series GP-IB F(High-functionality/High speed)
    Bus Specification PCI
    Size Short Size
    Used Connector GPIB
    GPIB Comm.
    Number of Channels 1-ch
    Transmission Speed ~ 1.5MB/sec
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    GP-IB(PCI)FL Low Price & High-speed IEEE-488.2 GPIB Interface Board for PCI
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-GPIB(98/PC) Windows version GPIB Communication Driver
    API-GPIB(LNX) Linux Driver for GPIB
    API-GPLV(W32) Windows version LabVIEW GPIB Communication Driver
    API-TIMER(W32) Timer Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    Cable
    Item Item Name
    PCN-T02 GPIB Cable (2m)
    PCN-T04 GPIB Cable (4m)
    Other Accessories
    Item Item Name
    CN-GP/C GPIB Counter Adapter
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
