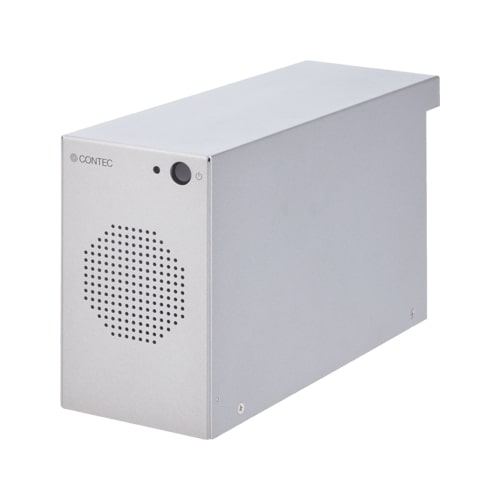

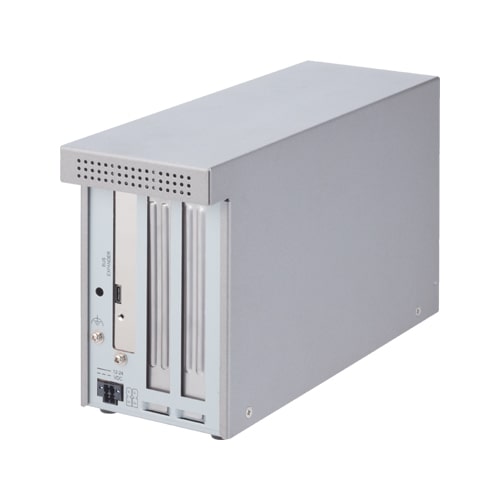

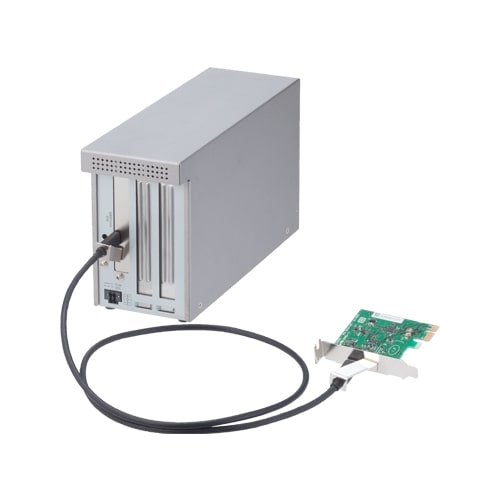

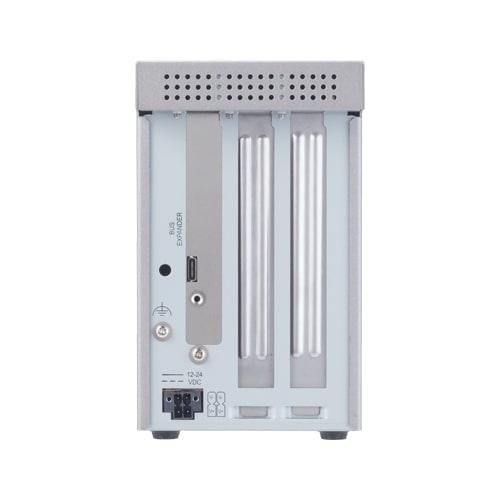

This product is an expansion chassis that adds expansion slots to a PC. Connecting an optional expansion adaptor (EAD-DE-LPE) can add PCI bus slots onto the PC.As your PC is turned ON or OFF, the expansion chassis can also be turned ON or OFF, accordingly.
| Method | PCI Express Cable (Type DE) |
|---|---|
| Number of User Slots | 2-slots |
| Board Size | Short Size |
| Input Power | 12 to 24VDC |
| Model | Description | Certification |
|---|---|---|
| ECH-PE-DE2-H2B | PCI Express cable type PCI Express bus expansion chassis (Short x 2) |
|
| Item | Item Name |
|---|---|
| EAD-DE-LPE | Expansion Adapter for PCI Express Slot |
| Item | Item Name |
|---|---|
| PWA-160AWD2 | Switching AC adapter(24VDC 6.6A) |
