EAD-DE-LPE_img1EAD-DE-LPE_img1

EAD-DE-LPE

  • PCI bus (5V / 32bit 33MHz) or PCI Express (x1) bus slot can be added from a PCI Express bus slot of a PC
  • It is possible to select expansion chassis according to the application
  • Power of the expansion chassis can be turned on/off in conjunction with the computer where this board mounted
  • Support for both of Low Profile and standard size slots (interchangeable with a bundled bracket)

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: EAD-DE-LPE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

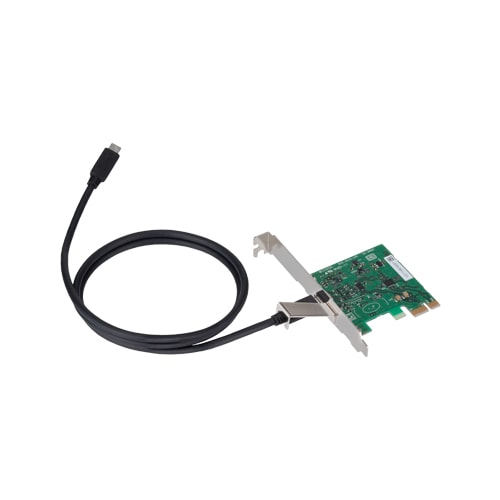

    This product is a PCI Express bus compatible expansion adapter (1m connection cable included) for connecting the PCI Express bus slot of a personal computer to the expansion chassis (PCI bus or PCI Express bus).It is possible to select the expansion chassis according to the application of the bus you want to expand.It corresponds to the Low Profile size slot, and it also supports the standard size slot by replacing the bracket that is included with this product.

    • PCI bus (5V / 32bit 33MHz) or PCI Express (x1) bus slot can be added from a PCI Express bus slot of a PC
      • By connecting to an expansion chassis (sold separately), you can add PCI bus (5V / 32bit 33MHz) or PCI Express (x1) bus expansion slots to your computer through its PCI Express bus slot. There is an included connection cable (1m) that connects the PCI Express bus board to the expansion chassis.
    • It is possible to select expansion chassis according to the application
      • You can select the expansion chassis that suits your application according to the type of bus you need (PCI or PCI Express (x1)), the number of slots, and the board size you want to mount.
    • Power of the expansion chassis can be turned on/off in conjunction with the computer where this board mounted
      • The power ON / OFF of the expansion chassis can be automatically switched in conjunction with the power ON / OFF of the personal computer.
    • Support for both of Low Profile and standard size slots (interchangeable with a bundled bracket)

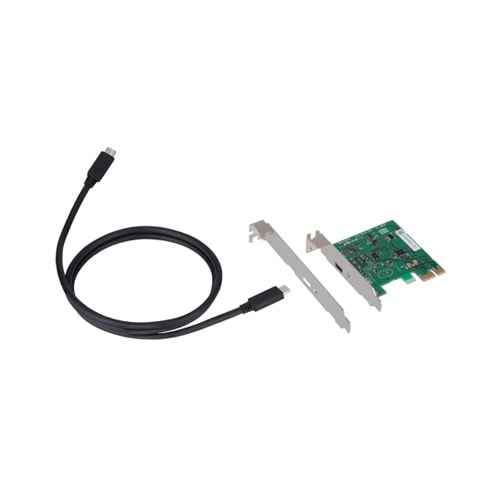

      • This adapter card is equipped with a bracket corresponding to Low Profile size slot. For the standard size slot, you need to replace the bracket corresponding to the standard size slot that is included.

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI Express
    Size Low Profile
    Used Connector
    Bus Bridge
    Method PCI Express Cable (Type DE)
    Function PCI Express-to-PCI Express; PCI Express-to-PCI

    Ordering Informations

    Ordering Information
    Model Description Certification
    EAD-DE-LPE Expansion Adapter for PCI Express Slot
    • FCC compliant
    • VCCI
    Options
    Expansion box
    Item Item Name
    ECH-PCI-DE-F2B Bus extension type PCI bus expansion chassis (long x 2)
    ECH-PCI-DE-F4B Bus extension type PCI bus expansion chassis (long x 4)
    ECH-PCI-DE-H13A Bus extension type PCI bus expansion chassis (short x 13, power supply built-in)
    ECH-PCI-DE-H2B Bus extension type PCI bus expansion chassis (short x 2)
    ECH-PCI-DE-H2C Bus extension type PCI bus expansion chassis (short x 2)
    ECH-PCI-DE-H4B Bus extension type PCI bus expansion chassis (short x 4)
    ECH-PCI-DE-H4D Cable type PCI Express bus expansion chassis (short x 4)
    ECH-PE-DE-H2B PCI Express bus expansion chassis (short x 2)
    Cable
    Item Item Name
    CB-DE Cable for PCI Express
    Extended Warranty Service
    Item Item Name
    ESP-F5 Extended warranty service package (5 years service course) (Japan only)
    ESP-S1 Extended warranty service package (Extension one year) (Japan only)
