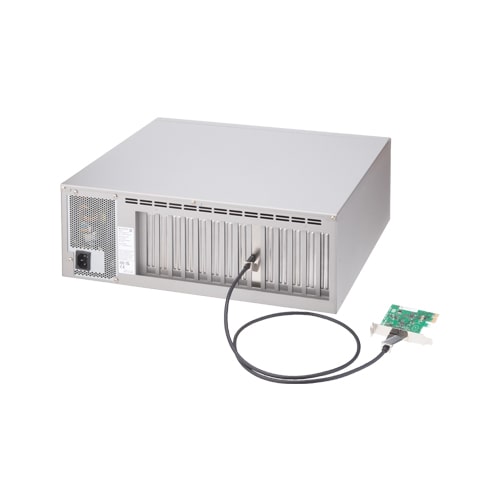

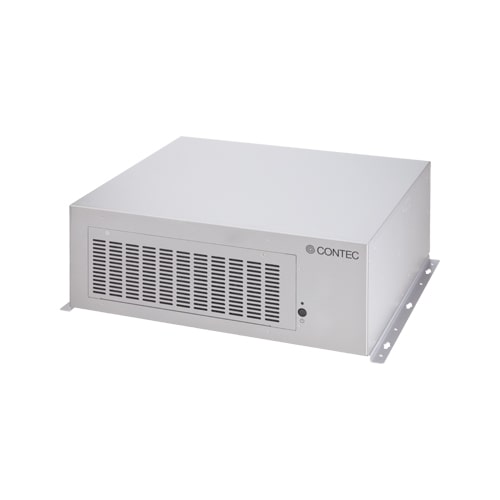

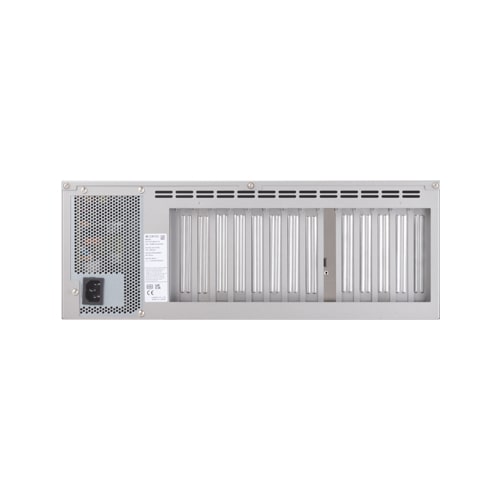

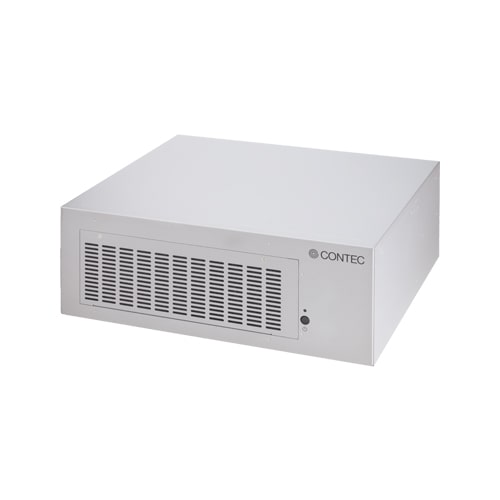

This product is an expansion chassis that adds PCI bus slots to a PC. Connecting an optional expansion adaptor (EAD-DE-LPE) can add PCI bus slots onto the PC.The installable card types are long-type [313.8 (L) x 107 (H) mm] PCI bus cards.As your PC is turned ON or OFF, the expansion chassis can also be turned ON or OFF, accordingly.
| Method | PCI Express Cable (Type DE) |
|---|---|
| Number of User Slots | 13-slots |
| Board Size | Long Size |
| Input Power | 100 to 240VAC |
| Model | Description | Certification |
|---|---|---|
| ECH-PCI-DE2-F13A | PCI Express Extension-type PCI Bus Expansion Chassis (long x 13, power supply built-in) |
|
| Item | Item Name |
|---|---|
| EAD-DE-LPE | Expansion Adapter for PCI Express Slot |
| Item | Item Name |
|---|---|
| ECH-WM-FIX-F | Fixing bracket for expansion chassis (long) |
