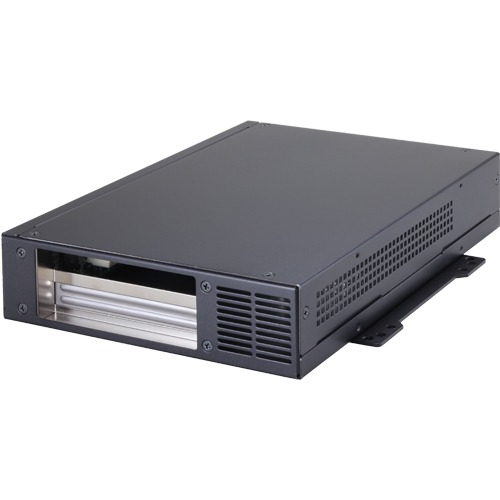

ECH-PCI-DE-H2C_img1ECH-PCI-DE-H2C_img1

ECH-PCI-DE-H2C

  • PCI bus (5V/32bit 33MHz) slots can be added to your PC.
  • Short-type PCI bus cards can be connected.
  • A wide range of power supplies (10.8 to 31.2VDC) supported
  • The cooler fan can be installed according to the usage.

Data Sheet PDF

SKU: ECH-PCI-DE-H2C Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

ECH-PCI-DE-H2C is an expansion chassis that adds PCI bus slots to a PC. It can add PCI bus slots by connecting an optional expansion adapter (EAD-DE-LPE). ECH-PCI-DE-H2C that can be mounted is short-type [176.5 (L) x 107 (H) mm] PCI cards.

  • PCI bus (5V/32bit 33MHz) slots can be added to your PC.
    • Two PCI bus (5V/32bit 33MHz) slots can be added. ECH-PCI-DE-H2C adds two PCI bus slots. This expansion chassis is connected to a PC using an optional expansion adapter.
  • Short-type PCI bus cards can be connected.
    • ECH-PCI-CE-H2C can be connected two short-type [176.5 (L) x 107 (H) mm] PCI cards.
  • A wide range of power supplies (10.8 to 31.2VDC) supported
    • As the product supports a wide range of power (10.8 to 31.2VDC), it can be used in a variety of power environments.
  • The cooler fan can be installed according to the usage.

Specifications

Specifications
Bus Expansion Chassis
Method PCI Express Cable (Type DE)
Number of User Slots 2-slots
Board Size Short Size
Input Power 12 to 24VDC

Ordering Informations

Ordering Information
Model Description Certification
ECH-PCI-DE-H2C Bus extension type PCI bus expansion chassis (short x 2)
  • CE marking
  • FCC compliant
  • VCCI
Options
Bus adapter
Item Item Name
EAD-DE-LPE Expansion Adapter for PCI Express Slot
Power Supply / AC Adapter
Item Item Name
IPC-ACAP12-04A AC Adapter (Input:100-240VAC, Output:12VDC 4A)
PWA-65AWD1 AC Adapter(12VDC)
Other Accessories
Item Item Name
FAN0412 Cooling fan (for ECH-PCI-CE-H2C and ECH-PCI-DE-H2C)
