ECH-PCI-DE-H4D_img1ECH-PCI-DE-H4D_img1

ECH-PCI-DE-H4D

  • Adds PCI bus (5V/32bit 33MHz) slots to a computer
  • Supports short size PCI bus cards
  • The product can install within the panel or the device
  • Steel chassis with cooling fan
  • A wide range of power supplies (10.8 to 31.2VDC) supported

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: ECH-PCI-DE-H4D Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

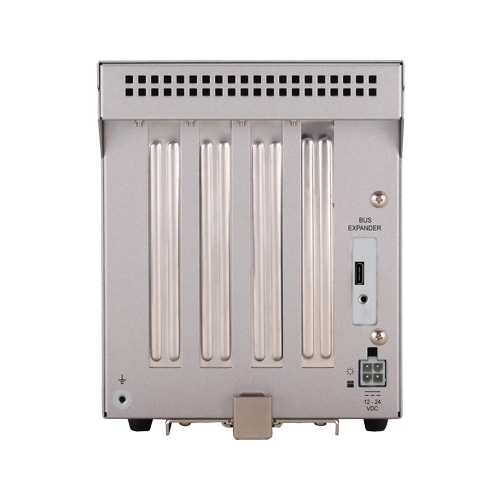

    This is an expansion chassis for adding 4 PCI bus slots to a computer. Connect to the computer with an expansion adapter (sold separately).

    • Adds PCI bus (5V/32bit 33MHz) slots to a computer
      • Four PCI bus (5V/32bit 33MHz) slots can be added. Connect the computer and this expansion chassis with an expansion adapter (sold separately).
    • Supports short size PCI bus cards
      • Four short size [176.5(L)x107(H)mm] PCI cards can be mounted.
    • The product can install within the panel or the device

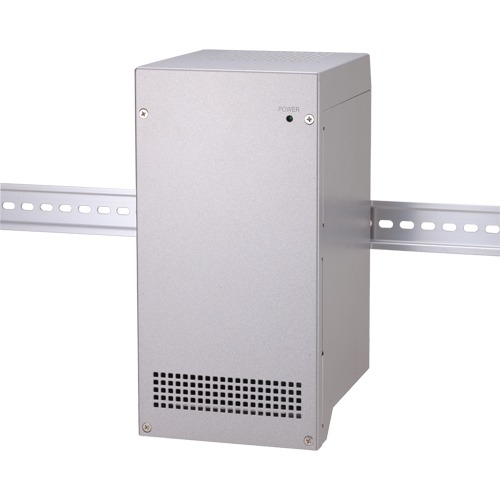

      • DIN rail mounting mechanism is equipped as standard with the product, making it easy to install the product within the panel or the device.

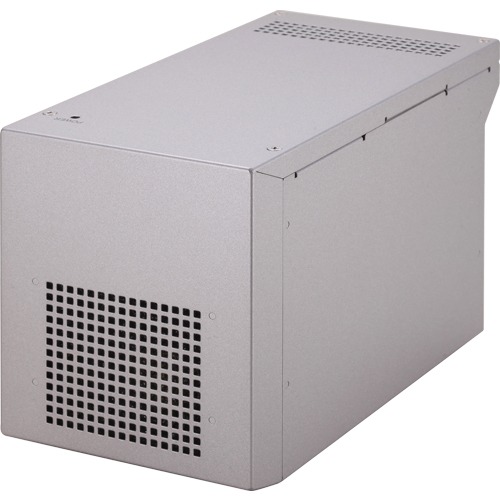

    • Steel chassis with cooling fan
      • Steel chassis with cooling fan suitable for use in fields
    • A wide range of power supplies (10.8 to 31.2VDC) supported
      • As the product supports a wide range of power (10.8 to 31.2VDC), it can be used in a variety of power environments.

    Specifications

    Specifications
    Bus Expansion Chassis
    Method PCI Express Cable (Type DE)
    Number of User Slots 4-slots
    Board Size Short Size
    Input Power 12 to 24VDC

    Ordering Informations

    Ordering Information
    Model Description Certification
    ECH-PCI-DE-H4D Cable type PCI Express bus expansion chassis (short x 4)
    • FCC compliant
    • VCCI
    Options
    Bus adapter
    Item Item Name
    EAD-DE-LPE Expansion Adapter for PCI Express Slot
    Extended Warranty Service
    Item Item Name
    ESP-F5 Extended warranty service package (5 years service course) (Japan only)
    ESP-S1 Extended warranty service package (Extension one year) (Japan only)
