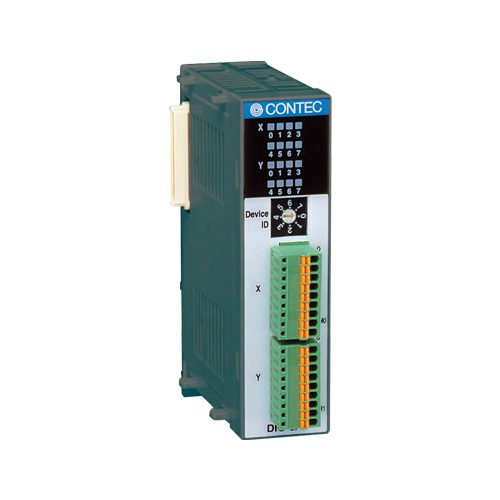

DIO-88(FIT)GY_img1DIO-88(FIT)GY_img1

DIO-8/8(FIT)GY

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DIO-8/8(FIT)GY Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This module perfoms to input/output digital signals to and from external devices, can be used by connecting it to F&eIT series controller modules . DIO-8/8(FIT)GY can be connected to DIO-8/8(USB)GY respectively, to increase the number of I/O channels. Opto isolation prevents electrical influence from external devices to the host PC. DIO-8/8(FIT)GY has 8 channels input and 8 channels output per module.

      • DIO-8/8(FIT)GY has 8 channel digital signal input and 8 channel digital output, treating 8 channels as a group.
      • Isolated I/O operations using an opto-coupler improves noise immunity.
      • A rotary switch allows you to set device IDs to help you keep track of device numbers.
      • Screwless connector plug allows you to easily attach and detach wires without using any special tools.
      • Like other F&eIT series products, the module has a 35mm DIN rail mounting mechanism as standard. A connection to a controller module can be effected on a lateral, stack basis in a unique configuration, which permits a simple, smart system configuration without the need for a backplane board.

    Specifications

    Specifications
    Add-on Module
    Series F&eIT
    Bus Specification F&eIT stack bus
    Size F&eIT 1U
    Used Connector –
    Digital I/O
    Input Channels 8-ch
    Output Channels 8-ch
    Bi-directional I/O Channels –
    Response Time (Input) 1msec (max.)
    Response Time (Output) 1msec (max.)
    Operating Voltage (Input) 12 to 24VDC
    Operating Voltage (Output) 12 to 24VDC
    Input Circuit Opto-isolated input (for both current sink and source output)
    Output Circuit Opto-isolated open-collector output (current sink type)
    Built-in Power Supply –
    Supported OS
    Supported OS –
    • *The supported OS depends on connected controllers (CPU-CA20, BX-320 etc.).

    Ordering Informations

    Replacement Product
    Model Definition
    Digital input CONPROSYS nano Series I/O module 8ch (isolated 12 to 24VDC)
    CPSN-DI-08L
    Digital output CONPROSYS nano Series I/O module 8ch (isolated 12 to 24VDC)
    CPSN-DO-08L
    		 For details, please see datasheets and manuals.
    Ordering Information
    Model Description Certification
    DIO-8/8(FIT)GY [Limited Stock] [End of Repair Service : December 15, 2031] Digital I/O F&eIT I/O module 8ch/8ch (isolated 12 – 24VDC)
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Coupler module
    Item Item Name
    CPU-CA20(FIT)GY F&eIT Remote I/O – Communication Coupler / 1x LAN
    Embedded Computer
    Item Item Name
    BX-320 Box Computer BX-300 – Fanless Embedded PC / DIN Rail Mountable / F&eIT Bus / PCIe Bus / Atom E3845 (BayTrail SoC) / DC Power Supply
    Extended Warranty Service
    Item Item Name
    ESP-F5 Extended warranty service package (5 years service course) (Japan only)
    ESP-S1 Extended warranty service package (Extension one year) (Japan only)
