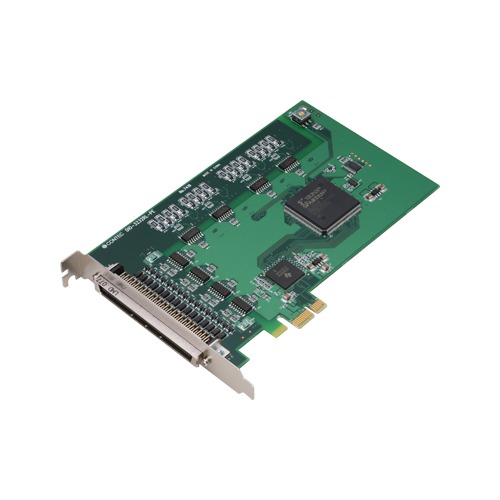

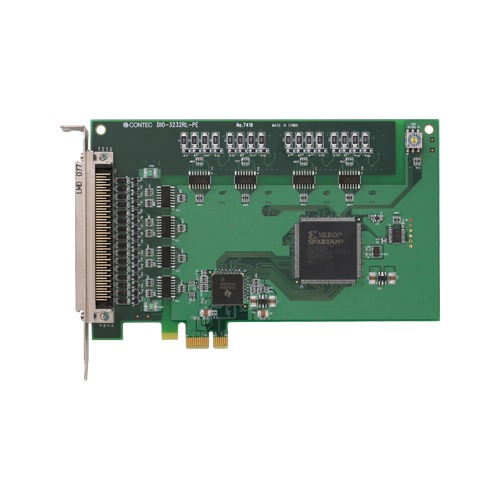

DIO-3232RL-PE

  • Opto-coupler isolated input (compatible with current source output signals) and opto-coupler isolated output (current source type)
  • Opto-coupler bus isolation
  • Opto-coupler bus isolation
  • Windows/Linux support device driver
  • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: DIO-3232RL-PE Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a PCI Express bus-compliant interface board for input/output of digital signals. This product is a negative-common type isolated digital input/output board and supports input/output of 12 – 24VDC digital signals. DIO-3232RL-PE features 32 opto-coupler isolated inputs (compatible with current source output signals) and 32 opto-coupler isolated outputs (current source type). You can use all input signals as interrupt inputs. In addition, the digital filter function to prevent wrong recognition of input signals is provided and output transistor protection circuit (surge voltage protection and overcurrent protection).Windows/Linux device driver is supported with this product.

    • Opto-coupler isolated input (compatible with current source output signals) and opto-coupler isolated output (current source type)
      • It has the opto-coupler isolated input 32channels (compatible with current source output signals) whose response speed is 200µsec and opto-coupler isolated output 32channels (current source type). Common terminal provided per 16channels, capable of supporting a different external power supply. Supporting driver voltages of 12 – 24 VDC for I/O
    • Opto-coupler bus isolation
      • As the PC is isolated from the input and output interfaces by opto-couplers, this product has excellent noise performance.
    • Opto-coupler bus isolation
      • You can use all of the input signals as interrupt request signals and also disable or enable the interrupt in bit units and select the edge of the input signals, at which to generate an interrupt.
    • Windows/Linux support device driver
      • Using the device driver API-TOOL makes it possible to create applications of Windows/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
    • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
      • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.

    Specifications

    Specifications
    Add-on Module
    Series
    Bus Specification PCI Express
    Size Short Size
    Used Connector 1.27mm-pitch 96-pin (Male)
    Digital I/O
    Input Channels 32-ch
    Output Channels 32-ch
    Bi-directional I/O Channels –
    Response Time (Input) 200μsec (max.)
    Response Time (Output) 200μsec (max.)
    Operating Voltage (Input) 12 to 24VDC
    Operating Voltage (Output) 12 to 24VDC
    Input Circuit Opto-isolated input (for source current output)
    Output Circuit Opto-isolated output (source current type)
    Built-in Power Supply –
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    DIO-3232RL-PE Digital I/O PCI Express card 32ch/32ch (negative-common isolated 12 – 24VDC)
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-DIO(98/PC) Windows version Digital I/O Driver
    API-DIO(LNX) Linux version Digital I/O Driver
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    API-TIMER(W32) Timer Driver
    Development Support Tools
    Item Item Name
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    VI-DAQ VI Library of data acquisition for LabVIEW
    Cable
    Item Item Name
    PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
    PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
    PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
    PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)
    PCB96WS-P 96pin Half-Pitch to 2 x 37pin D-type(M), Shield Cable
    Terminal
    Item Item Name
    DTP-3C General Purpose Terminal
    DTP-4C Screw Terminal
    DTP-64A Screw Terminal (M3 x 96)
    EPD-37 Screw Terminal (M3.5 x 37)
    EPD-37A Screw Terminal (M3 x 37)
    EPD-96 Screw Terminal (M3.5 x 96)
    EPD-96A Screw Terminal (M3 x 96)
    Other Accessories
    Item Item Name
    CCB-96 Connector conversion card
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
