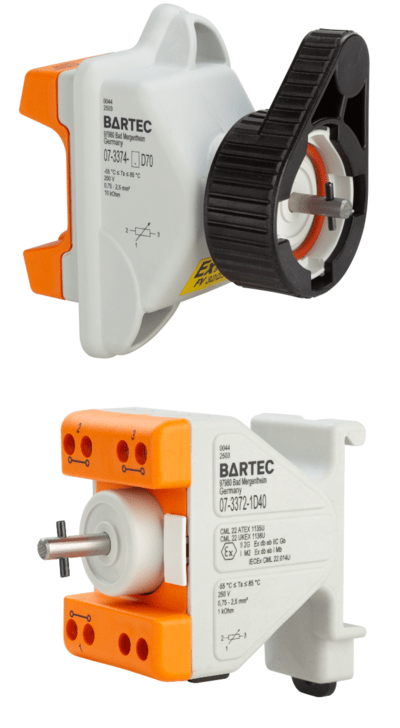

The ComEx potentiometer module is used in almost all hazardous (potentially explosive) areas where machine functions are controlled by means of adjustable voltage distributors. The module can be combined with a potentiometer actuator (scale graduation 0 to 10) and is available in versions with 1 kΩ and 10 kΩ.
ATEX/UKEX:Ex II 2G Ex db eb IIC GbEx I M2 Ex db eb I Mb
IECEx:Ex db eb IIC GbEx db eb I Mb
CEC (UL mark):Ex db eb IIC GbClass I, Division 2, Groups A, B, C, D
NEC (UL mark):Class I, Zone 1, AEx db eb IIC GbClass I, Division 2, Groups A, B, C, D
Service temperature (Ts):-55 °C to +85 °C(-67 °F to +185 °F)
| Degree of protection | IP20 acc. to EN 60529 |
|---|---|
| Rated insulation voltage |
250 V |
| Rated voltage | 250 V |
| Material | thermoplastic |
| Contact material | carbon film on ceramics |
| Mounting | Panelmounted (locked with potentiometer actuator 07-3400-D100 by bayonet lock) Railmounted |
| Mechanical life | > 25000 sinusoidal cycles |
| Weight | Panelmounted: approx. 110 g Railmounted: approx. 71 g |
| Connection | 0.75 mm² – 2.5 mm²/18 AWG – 12 AWG |
