COM-2PD(PCI)H_img1COM-2PD(PCI)H_img1

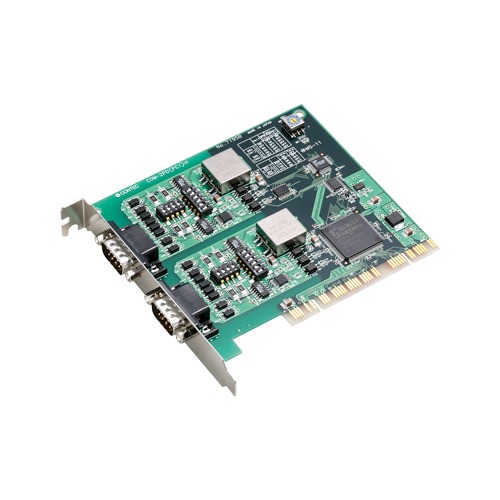

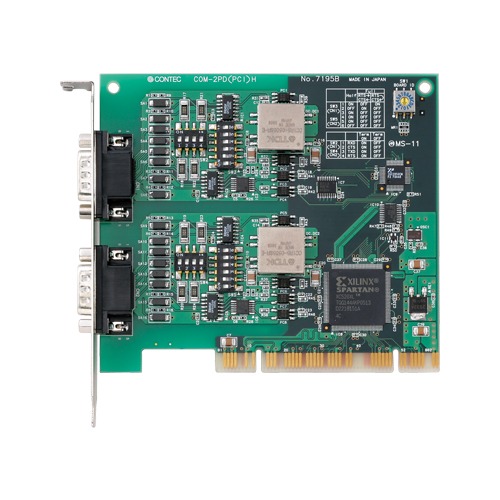

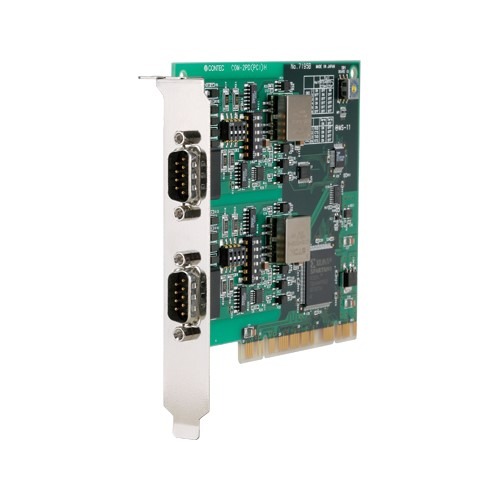

COM-2PD(PCI)H

  • Max. 921,600bps RS-422A/485 Serial Communication.
  • Possibly used as Windows, Linux-standard COM ports
  • Isolation between channels and between PCs, surge protection for all signal lines
  • Up to 16 boards can be installed
  • Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive.
  • The control line for RS-422A/485 can be controlled and monitored by software

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: COM-2PD(PCI)H Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an isolated PCI bus-supported board designed for extending RS-422A/485 compatible serial communication functionality on your PC.COM-2PD(PCI)H has two RS-422A/485 communication ports. With a 128byte built-in FIFO buffer for transmission and reception of each channel, the product supports a baud rate of up to 921,600bps. Windows/Linux device driver is supported with this product. The COM-2PD(PCI)H boards are backward compatible with the CONTEC COM-2PD(PCI) boars. The COM-xPD(PCI)H can therefore replace the COM-xPD(PCI) in an existing system.

    • Max. 921,600bps RS-422A/485 Serial Communication.
      • The COM ports of this product support up to 921,600 bps. COM-2PD(PCI)H has two RS-422A/485-standard serial ports.
    • Possibly used as Windows, Linux-standard COM ports
      • Combining the product with our device driver COM-DRV makes it possible to use the product in the same manner as the COM ports of a PC.This product supports communication using DCB structures in the Win32 API and Linux-standard system calls.
    • Isolation between channels and between PCs, surge protection for all signal lines
      • The channels are electrically isolated from each other and from the PC. As isolation is provided between channels as well as isolation of the bus, this prevents electrical noise between channels as well as between the PC and external circuits. As surge protection is provided on all signal lines, you can safely use the boards in environments where you are concerned about surges causing incorrect operation or damage to the PC.
    • Up to 16 boards can be installed
      • Up to 16 boards of the same model can be mounted on a single PC.
    • Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive.
      • Equipped with a buffer memory for transmitting 128 bytes and receiving 128 bytes for each channel. These are FIFO format, useful for high speed communications and to reduce the load to the CPU when transmitting/receiving.
    • The control line for RS-422A/485 can be controlled and monitored by software
      • The control lines for RTS+, RTS-, CTS+ and CTS- can be controlled and monitored using software.

    Specifications

    Specifications
    Add-on Module
    Series –
    Bus Specification PCI
    Size Short Size
    Used Connector 2x D-SUB 9-pin (Male)
    Serial Comm.
    Number of Channels 2x RS-422A/485 [ASYNC]
    Transmission Speed 30 ~ 921,600bps
    Isolation Property Isolated & Surge protection
    Transmission Method RS-422A/485 [Asynchronous]
    Supported OS
    Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
    • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

    Ordering Informations

    Ordering Information
    Model Description Certification
    COM-2PD(PCI)H Serial Communication PCI Card RS-422A/485 2ch / Isolation and Surge Protection
    • CE marking
    • VCCI
    Options
    Device Drivers
    Item Item Name
    API-SIO(98/PC) Serial Communication Driver
    Development Support Tools
    Item Item Name
    ACX-PAC(W32) ActiveX components sets for measurement system development
    Extended Warranty Service
    Item Item Name
    ESP-F6 Extended warranty service package (6 years service course) (Japan only)
