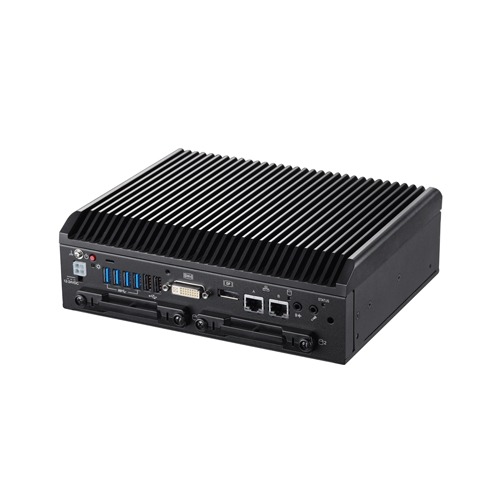

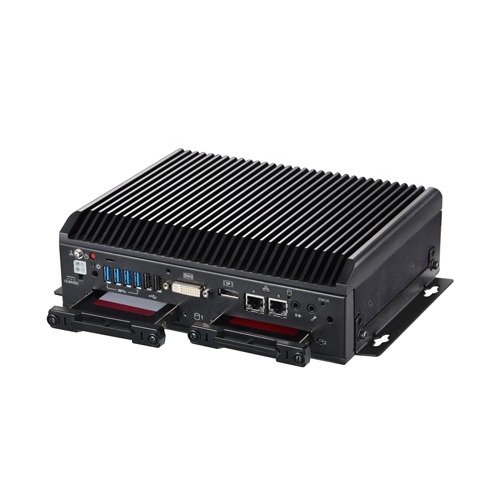

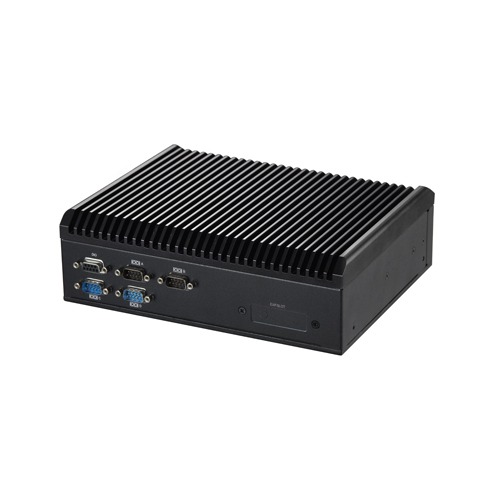

Embedded Fan-Less System with Intel 6th Skylake Platform
| Mounting | DIN Rail Mount; VESA 100 x 100; VESA 75 x 75; Desktop; Wall Mount |
|---|
| Supported OS | Windows 10 IoT Enterprise 2019 LTSC 64-bit; Windows 10 IoT Enterprise LTSB 2016 64-bit; Windows 8.1; Windows 7 |
|---|
| CPU Generation (Development code) | 6th Gen. (Skylake-S) |
|---|---|
| Processor | Core i7-6700TE; Core i5-6500TE; Celeron G3900TE |
| CPU socket | LGA1151 |
| Memory | 32GB; 16GB; 8GB |
| RAS | Hardware monitor (Temperature / Voltage); Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | – |
| Video | 1x DisplayPort; 1x DVI-I |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Mic-in |
| I/O | 4x USB3.2 Gen1 (USB3.0); 2x USB2.0; 3x RS-232C; 1x RS-232C/422A/485 |
| Memory card | – |
| Expansion bus | M.2 socket; 1x Mini PCI Express; – |
|---|---|
| Drive bay | 2x 2.5-inch bay (SATA) |
| Input voltage | 12 to 24VDC |
|---|
| Operating temperature | 0 to 50°C (32 to 122°F) (w/ 0.7m/s airflow w/ standard temp. SSD); 0 to 40°C (32 to 104°F) (w/ 0.7m/s airflow w/ standard temp. HDD) |
|---|---|
| Storage temperature | -10 to 60°C (14 to 140°F) |
| Standards & Certifications | CE; FCC Class A; VCCI Class A |
| Model | Definition |
|---|---|
| Box computer BX-M4600 -Fanless Embedded PC / Intel 13th Gen. i7-13700TE (Raptor Lake-S + R680E) / DC Power Supply BX-M4600-G Box Computer BX-S3300 – Fanless Embedded PC / Xeon E + C246 (Coffee Lake Refresh) / 2 x 2.5-inch drive bays / DC Power Supply BX-S3300 |
For details, please see datasheets and manuals. |
| Model | Description | Certification |
|---|---|---|
| BX-S3000-DC1800000 [Limited Stock] | [End of Repair Service : September 4, 2028] Base model with Intel® Celeron® G3900TE, DDR4 8GB Memory (w/o OS, w/o Storage) |
|
| BX-S3000-DC4800000 [Limited Stock] | [End of Repair Service : September 4, 2028] Base model with Intel® Core™ i5-6500TE, DDR4 8GB Memory (w/o OS, w/o Storage) |
|
| BX-S3000-DC5800000 [Limited Stock] | [End of Repair Service : September 4, 2028] Base model with Intel® Core™ i7-6700TE, DDR4 8GB Memory (w/o OS, w/o Storage) |
|
| CPU |
|
|---|---|
| Memory |
|
| Storage |
|
| OS |
|
| Adapter |
|
| Others |
|
* Software RAID function is configurable.
* There are combinations that can not be configured. Please inquire in detail.
