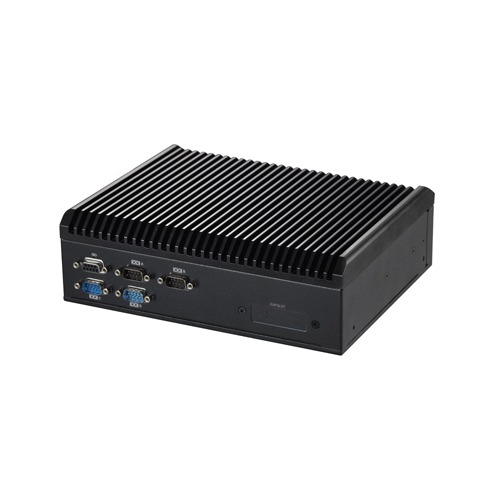

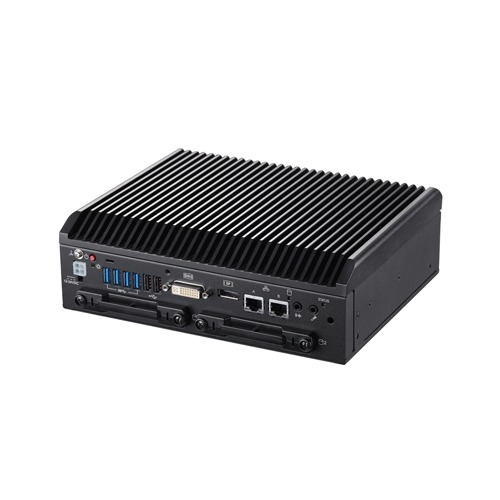

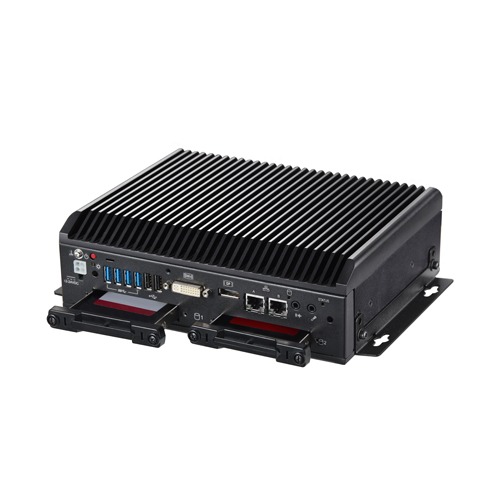

This product is a high-performance embedded-type personal computer equipped with the 9th-generation Intel® Xeon/ Core™ processor. Embedded-type chipset and CPU have been adopted. The use of readily available parts ensures the ease of the use of the product.
| Mounting | DIN Rail Mount; VESA 100 x 100; VESA 75 x 75; Desktop; Wall Mount |
|---|
| Supported OS | Windows 10 IoT Enterprise 2021 LTSC 64-bit; Windows 10 IoT Enterprise 2019 LTSC 64-bit; Windows Server 2019 |
|---|
| CPU Generation (Development code) | 9th Gen. (Coffee Lake R-S) |
|---|---|
| Processor | Xeon E-2278GEL; Core i7-9700TE; Core i5-9500TE; Core i3-9100TE; Celeron G4900T |
| CPU socket | LGA1151 |
| Memory | 32GB; 16GB; 8GB |
| RAS | – |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0 |
| Video | 1x DisplayPort; 1x DVI-I |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Mic-in |
| I/O | 4x USB3.2 Gen2; 2x USB2.0; 3x RS-232C; 1x RS-232C/422A/485 |
| Memory card | – |
| Expansion bus | M.2 socket; 1x Mini PCI Express; – |
|---|---|
| Drive bay | 2x 2.5-inch bay (SATA) |
| Input voltage | 12 to 24VDC |
|---|
| Operating temperature | 0 to 50°C (32 to 122°F) (w/ 0.7m/s airflow w/ standard temp. SSD); 0 to 40°C (32 to 104°F) (w/ 0.7m/s airflow w/ standard temp. HDD) |
|---|---|
| Storage temperature | -10 to 60°C (14 to 140°F) |
| Standards & Certifications | BIS; CE; FCC Class A |
| Model | Description | Certification |
|---|---|---|
| BX-S3300-DC8800000 | Base model with Intel Xeon E-2278GEL, DDR4 8GB ECC SODIMM |
|
| BX-S3300-DC9800000 | Base model with Intel Core i3-9100TE, DDR4 8GB ECC SODIMM |
|
| BX-S3300-DCA800000 | Base model with Intel Celeron G4900T, DDR4 8GB ECC SODIMM |
|
| BX-S3300-DCB800000 | Base model with Intel Core i5-9500TE, DDR4 8GB ECC SODIMM |
|
| BX-S3300-DCC800000 | Base model with Intel Core i7-9700TE, DDR4 8GB ECC SODIMM |
|
| Memory |
|
|---|---|
| Storage |
|
| OS |
|
| Adapter |
|
| Others |
|
* Software RAID function is configurable.
* There are combinations that can not be configured. Please inquire in detail.
