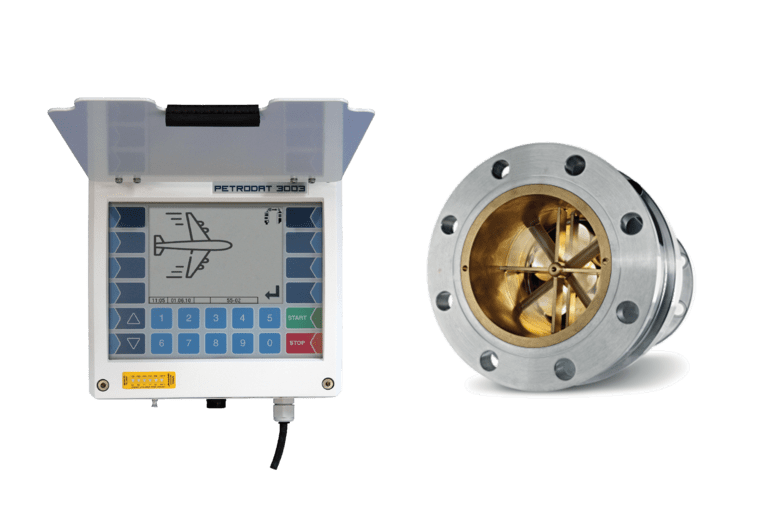

PETRO 3003 Aircraft Refueling is a combination of three features measurement, data transfer, and OnBoard computer into one coherent system. Together, they form a highly efficient OnTruck operation for aircraft refuelers and dispensers in hazardous areas.
MID approved all-in-one dispatch solution that will guarantee the ultimate on-site support.
ATEX certified
IECEx certified
W&M/MID certified
Operating Temperature: -20°C to +50°C (-4°F to 122°F)Storage Temperature: -20°C to +50°C (-4°F to 122°F)
| Operating System: | LINUX |
|---|---|
| Type of instrument: | Metrology-approved measuring turbine technology |
| Measurand: | Volume (l) |
| Measurement range: | Freely selectable in the flow range of the transducer. |
| Type of liquid: |
Liquids in the viscosity range < 20mPas at 20°C (Jet Fuel, Avgas, Jet B, Biokerosene, Sustainable Aviation Fuel, etc.) |
| Flow rate: |
100-1,000 l/min | 200-2,000 l/min | 400-4,000 l/min |
| Accuracy class: | Better than 0.5 |
| Total Weight: | Starting at 20 kg |
