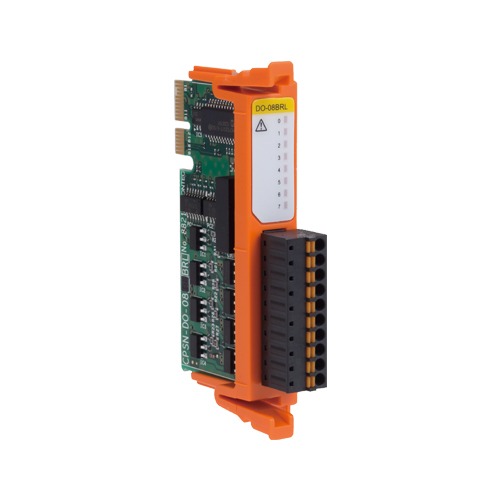

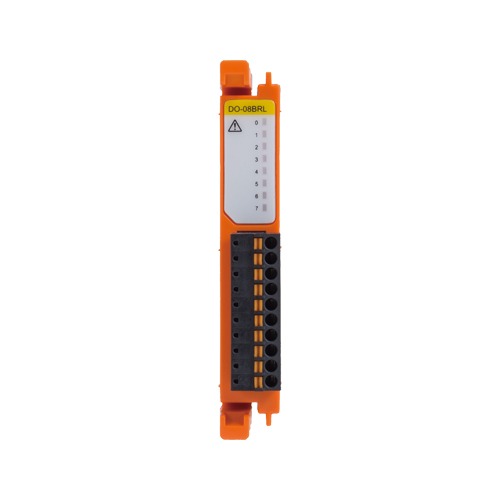

CPSN-DO-08BRL

  • Opto-coupler isolated Output
  • Internal circuit power supply
  • Output circuits include zener diodes for surge voltage protection.
  • Adaptable to a wide range of temperature between -20 and +60°C
  • Equipped with the LED for an operation check
  • No electrolytic capacitor

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: CPSN-DO-08BRL Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is an expansion I/O module that adds a digital output interface to the CPU unit of the CONPROSYS nano series.It contains 8 channels of opto-coupler isolated output (current source type) whose response speed is 200μsec or less.This products internal circuit also has a built-in power supply, so no external circuit power supply is necessary.

    • Opto-coupler isolated Output
      • This product contains 8 channels of opto-coupler isolated output (current source type) whose response speed is 200μsec or less.
    • Internal circuit power supply
      • The CPSN-DO-08BRL’s internal circuit has a built-in power supply, so no external circuit power supply is necessary.
    • Output circuits include zener diodes for surge voltage protection.
      • Zener diodes are connected to the output circuits to protect against surge voltages.The rated output is 12VDC, 56mA to the maximum (the total value of all output channels)
    • Adaptable to a wide range of temperature between -20 and +60°C
      • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
    • Equipped with the LED for an operation check
      • The product has the LED for an operation check, which helps you visually confirm the communication status of each interface.
    • No electrolytic capacitor
      • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.

    Specifications

    Specifications
    Add-on Module
    Series CONPROSYS nano(Modular remote I/O)
    Bus Specification CONPROSYS nano slot
    Size CONPROSYS nano 1U
    Used Connector 3.81mm-pitch 10-pin 2-piece terminal block
    Digital I/O
    Input Channels –
    Output Channels 8-ch
    Bi-directional I/O Channels –
    Response Time (Input) –
    Response Time (Output) 200μsec (max.)
    Operating Voltage (Input) –
    Operating Voltage (Output) 12VDC
    Input Circuit –
    Output Circuit Opto-isolated output (source current type)
    Built-in Power Supply 12VDC
    Supported OS
    Supported OS –
    • *The supported OS depends on connected coupler units (CPSN-MCB271, CPSN-PCB271 etc.).

    Ordering Informations

    Ordering Information
    Model Description Certification
    CPSN-DO-08BRL Digital output CONPROSYS nano Series I/O module 8ch (negative-common 12VDC on-board power supply isolated 12VDC)
    • CE marking
    • FCC compliant
    • VCCI
    Options
    Coupler module
    Item Item Name
    CC-USB271-CPSN4 Modular USB I/O unit (4 slots) / Type-C port / Supports CONPROSYS nano modules
    CPSN-MCB271-1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 2x LAN
    CPSN-MCB271-S1-041 CONPROSYS nano Series Remote I/O – Communication Coupler / Modbus Slave / 4x Slot / 1x LAN / 1x RS-232C
    Controller unit
    Item Item Name
    CPSN-PCB271-S1-041 CONPROSYS nano Series Programmable Remote I/O – Communication Coupler (IEC 61131-3 CODESYS) / Modbus Master / 4x Slot / 1x LAN / 1x RS-232C
    Device Drivers
    Item Item Name
    API-DIO(WDM) Windows Driver for Digital I/O Driver
    Development Support Tools
    Item Item Name
    DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
    DAQ-LV-WIN LabVIEW Data Acquisition Library
    Power Supply / AC Adapter
    Item Item Name
    CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
    CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
