Transcending Time: Raspberry Pi Measurement Control from Contec

Unique! Raspberry Pi Solutions from Contec

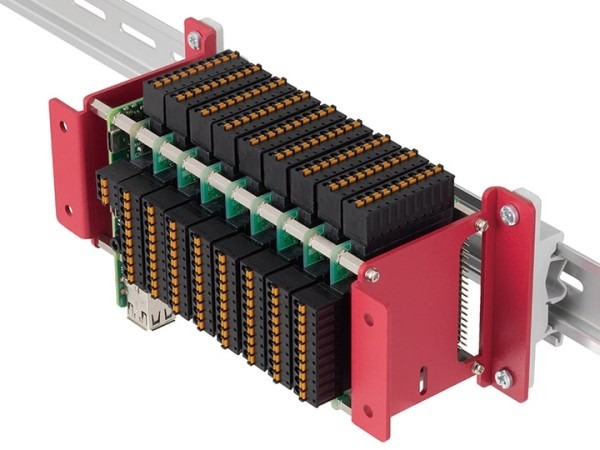

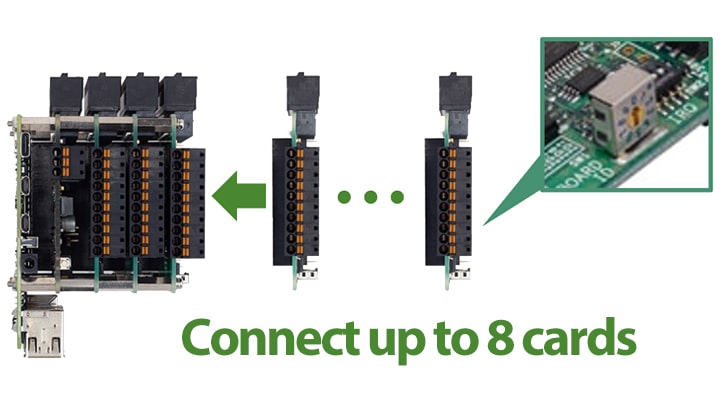

Expanded the original HAT specifications to allow stack connections of up to 8 cards

FA control and measurement control systems require large numbers of signal inputs and outputs. Where previously only a single card could be connected, Contec has expanded the HAT (Hardware Attached on Top) specifications to allow multilevel connections. Our original Board ID system allows a maximum of 8 cards to be connected in a stack for use with systems that require multiple signal inputs and outputs.

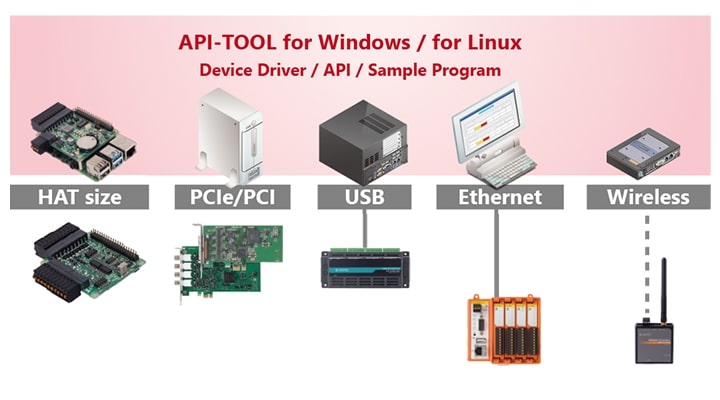

Utilize all valuable development assets with multi-platform support

Do you want to replace part of a PC-based system with Raspberry Pi? Do you want to scale-up a Raspberry Pi-based system to a PC-base? Contec makes these changes possible with a minimum of program changes. Integrated driver software minimizes the effects of hardware differences, ensuring high compatibility on the API level.

Contec has the solution for measurement control in every age

Supports the popular IoT languages Python and Linux standard gcc. Contains multiple sample programs.

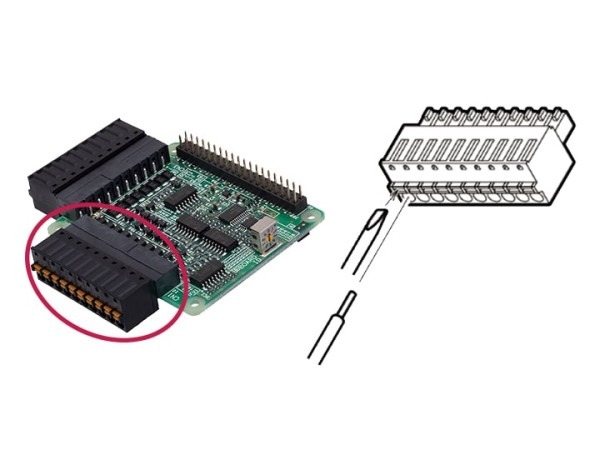

The CPI Series includes a convenient terminal block that allows connection and disconnection of wired HATs, as well as push-type terminals for tool-free wiring.

Even if it is Raspberry Pi, you want a sturdy assembly, right? Accessories for practical installation are available.

Continually Expanding! Product Lineup

Upgrade Raspberry Pi to industrial computers

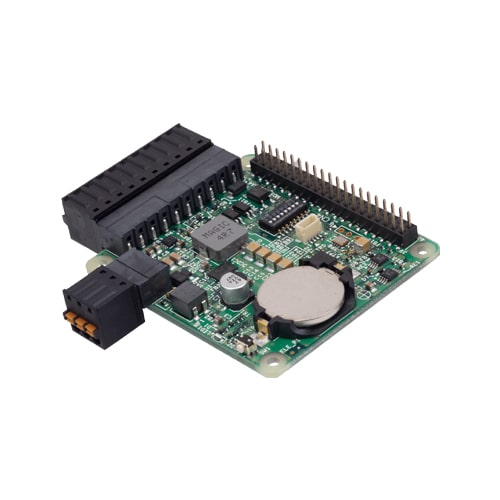

RAS function expansion card
CPI-RAS

  • Built-in clock (RTC) with backup battery, watchdog timer, hardware monitor
  • 8 to 28 VDC power supply input (power supply to Raspberry Pi)
  • Power switch, LED light control, GPIO control
See more detail

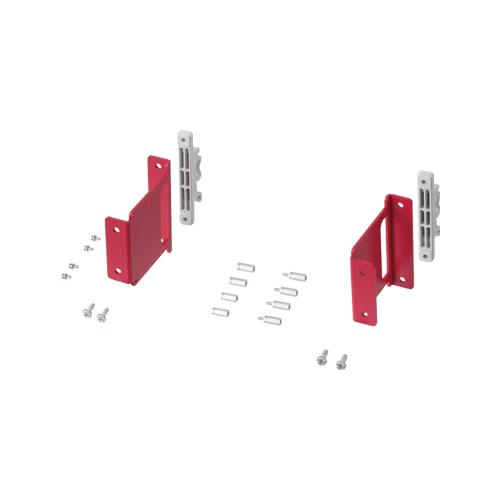

DIN rail mounting kit
CPI-DIN01

  • Simple mounting onto DIN rails. Wall mounting and desktop installation are also supported.
  • Color selected specially for Raspberry Pi
  • Matte coating that makes scratches less visible
See more detail

Digital I/O Cards / Relay Output Cards

LED/lamp control output, pulse output, ON/OFF signal input, parallel signal (binary/BCD) input/output

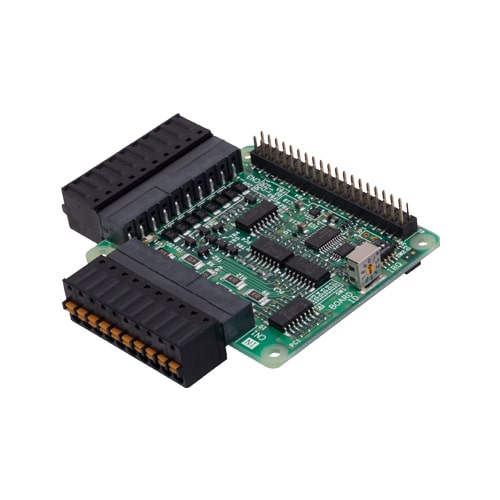

Opto-coupler isolated digital I/O
CPI-DIO-0808L

  • 8 NPN transistor outputs (open collector, current sink type)
  • 8 voltage inputs (Supports both current sink and current source types.)
See more detail

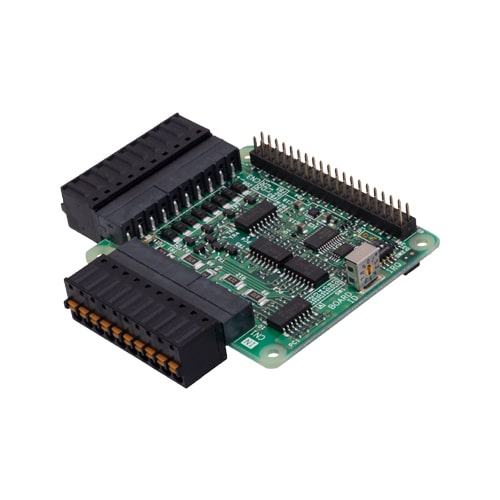

Opto-coupler isolated digital I/O (negative-common)
CPI-DIO-0808RL

  • 8 PNP transistor outputs (current source type)
  • 8 voltage inputs (Supports both current sink and current source types.)
See more detail

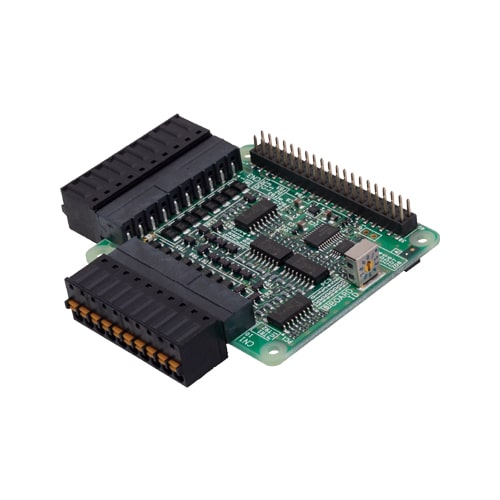

Opto-coupler isolated digital output
CPI-DO-16L

  • 16 NPN transistor outputs (open collector, current sink type
See more detail

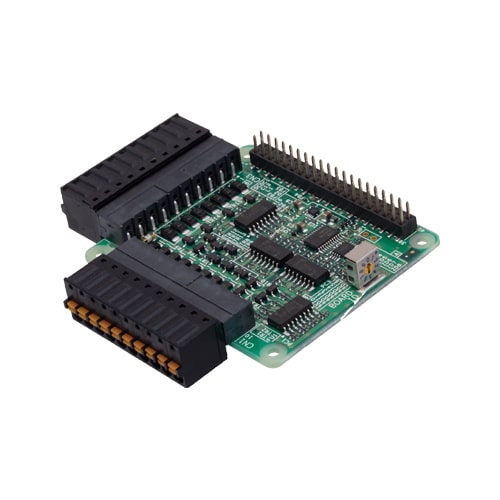

Opto-coupler isolated digital output (negative-common)
CPI-DO-16RL

  • 16 PNP transistor outputs (current source type)
See more detail

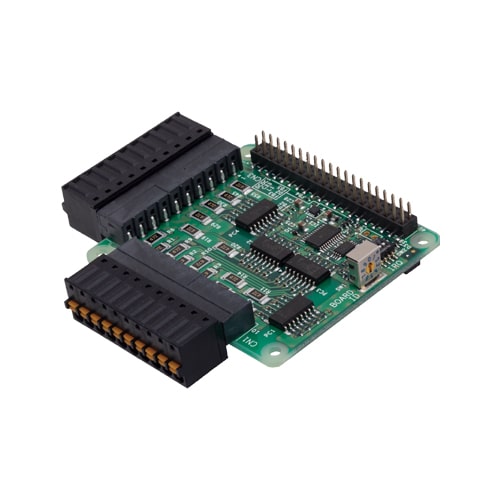

Opto-coupler isolated digital input
CPI-DI-16L

  • 16 voltage inputs (Supports both current sink and current source types.)
See more detail

Solid state relay contact output
CPI-RRY-16

  • 16 photo MOS relay outputs
See more detail

Analog I/O Cards

Voltage/current measurement, sensor connection. Analog voltage/current control output

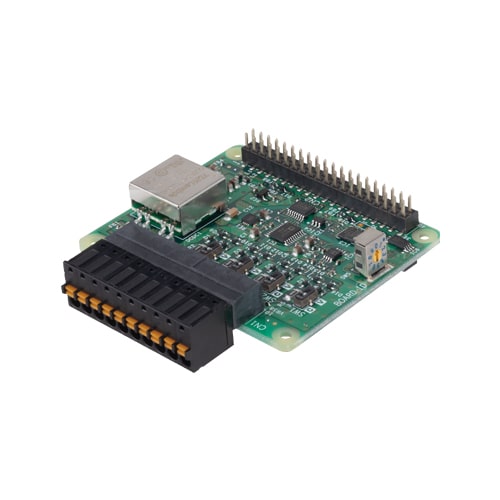

Isolated analog input
CPI-AI-1208LI

  • 12-bit analog input 8 ch (differential 4 ch)
  • Voltage input/Current input
See more detail

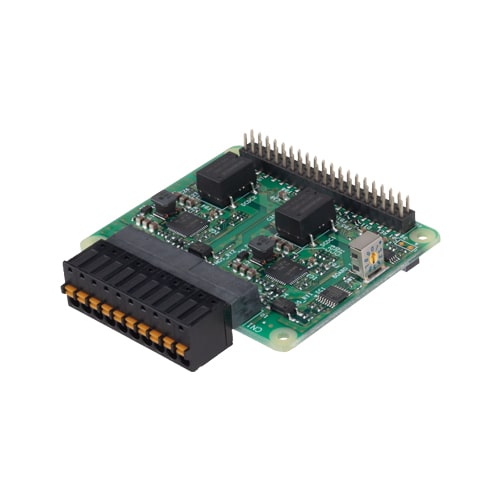

Isolated analog output
CPI-AO-1602LC

  • 16-bit analog output 2 ch
  • Voltage output/Current output
See more detail

Sensor Cards

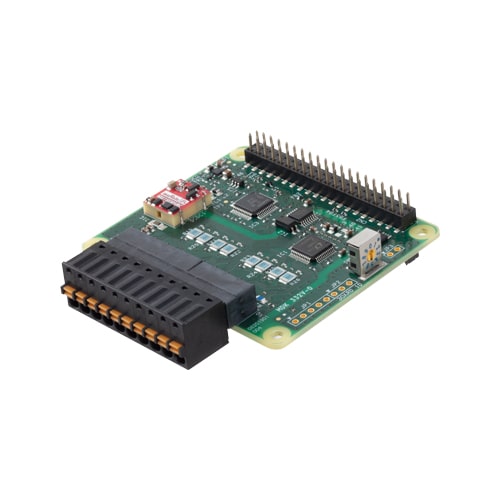

Thermocouple Input

Thermocouple Input
CPI-SSI-4C

  • thermocouple input types—J, K, E, N, R, S, and T.
  • Cold junction compensation function
See more detail

Counter Cards

Flow volume, power, and other pulse integration/Incremental encoder and linear scale position detection

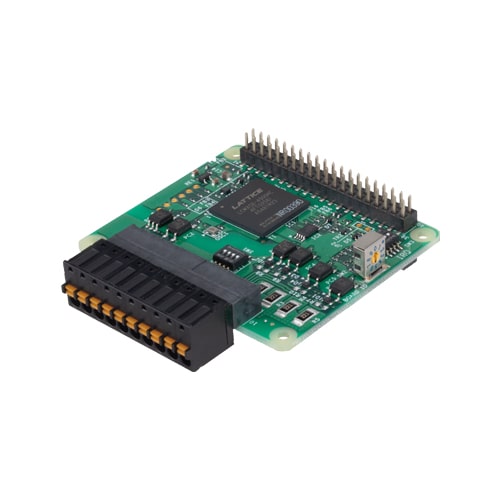

Isolated counter
CPI-CNT-3201I

  • 32-bit up/down counter 1 ch
  • Single phase input/Two-phase input (A/B/Z)
See more detail

Accessory

Accessories convenient for installation and installation

DIN rail mounting kit
CPI-DIN01

    • Simple mounting onto DIN rails. Wall mounting and desktop installation are also supported.
    • Color selected specially for Raspberry Pi
    • Matte coating that makes scratches less visible
See more detail

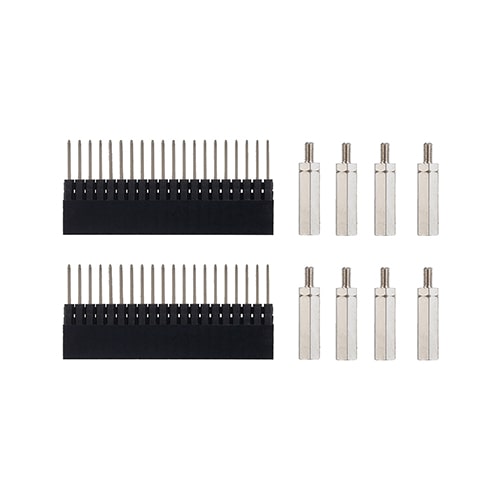

SPACER SET (x2) for Raspberry Pi 5
CPI-SPA01-2

  • This spacer and connector set is for mounting HAT size cards to the Raspberry Pi 5.
See more detail

Raspberry Pi Expansion Card introduction video
