M2M Controller Series – I/O Modules

Rich Variety of Interfaces and Excellent Lineup

M2M Controller Series

The M2M Controller Series consists of two types of controllers: a stand-alone integrated type and an I/O interface expandable configurable type. The system is adaptable to a wide variety of locations, wiring methods and number of I/O channels. You can build a custom control and monitoring system to meet your specific needs.

I/O Modules

I/O interface expansion modules of the configurable type controllers.
24VDC power is supplied by the controller to the attached I/O modules via the internal bus.

Analog Input and Output Modules

CTR M2M controller series GW M2m Gateway series PAC PAC series EG Edge series

Model Input Output Power Consumption Connectors Controller series
CPS-AI-1608LI 8-ch differential input,
16-bit resolution,
±10V Bus isolated
100mA (Max.) Screw terminal block
(3.81mm/0.15″ pitch)

CTR

GW

PAC

EG

CPS-AI-1608ALI 8-ch differential input,
16-bit resolution,
0 to 20mA
Bus isolated
100mA (Max.)

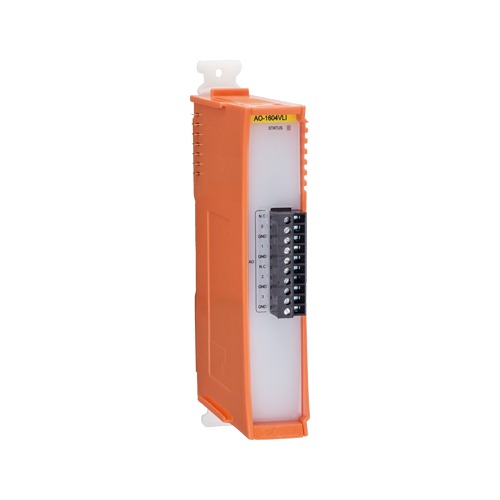

CPS-AO-1604VLI 4-ch voltage output,
16-bit resolution, ±10V
Bus isolated
200mA (Max.)

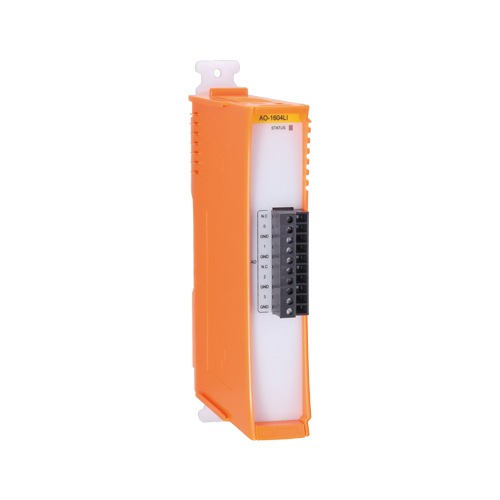

CPS-AO-1604LI 4-ch current output,
16-bit resolution,
0 to 20mA
Bus isolated
200mA (Max.)
Sensor Module
Model Supported sensor / wiring method No. of CH / Isolation Power Consumption Connectors Controller series

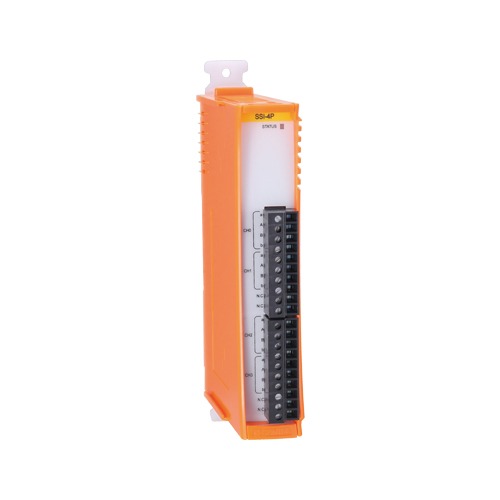

CPS-SSI-4P Pt100 / Three-wire or four-wire 4ch / Bus isolated 100mA (Max.) Screw terminal block
(3.81mm/0.15″ pitch)

CTR

GW

PAC

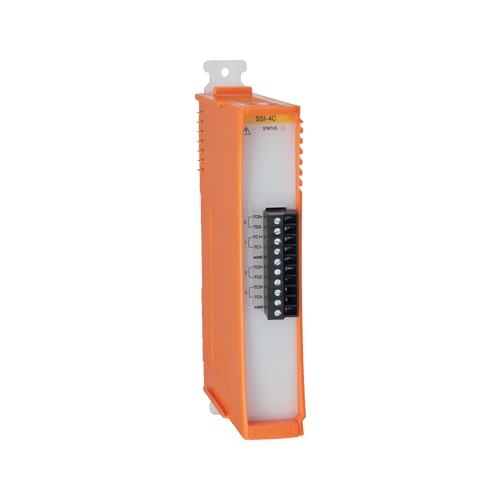

CPS-SSI-4C Thermocouple input /
Type : J,K,E,N,R,S,T
4ch / Bus isolated 100mA (Max.) Screw terminal block
(3.81mm/0.15″ pitch)

CTR

GW

Digital Input and Output Modules
Model Input Output Power Consumption Connectors Controller series

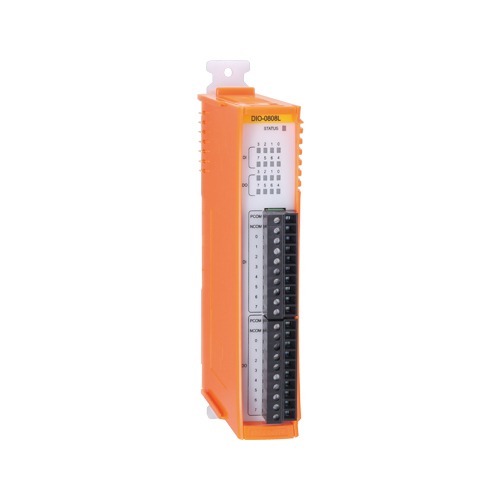

CPS-DIO-0808L
8-ch
Opto-isolated
(Compatible with current sink output)
8-ch
Opto-isolated
open-collector
(Current sink type)
100mA (Max.) Screw terminal block
(3.81mm/0.15″ pitch)

CTR

GW

PAC

EG

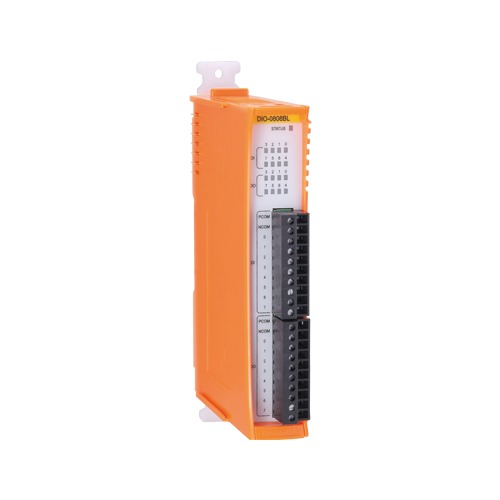

CPS-DIO-0808BL
(Built-in 12VDC power)
200mA (Max.)
CPS-DIO-0808RL 8-ch
Opto-isolated
(Compatible with current source output)
8-ch
Opto-isolated
(Current source type)
100mA (Max.)

CPS-DI-16L
16-ch
Opto-isolated
(Compatible with current sink output)
100mA (Max.)

CPS-DI-16RL
16-ch
Opto-isolated
(Compatible with current source output)
100mA (Max.)

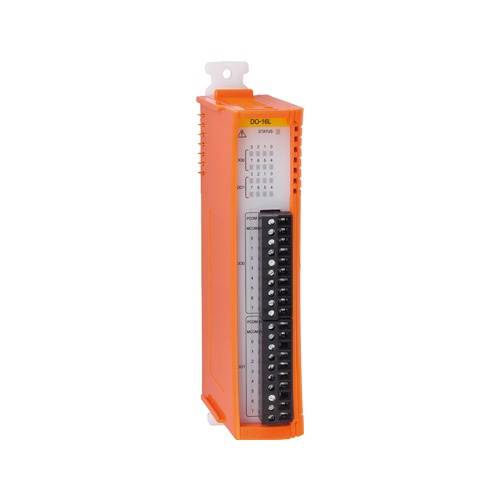

CPS-DO-16L 16-ch
Opto-isolated
open-collector
(Current sink type)
100mA (Max.)

CPS-DO-16RL
16-ch
Opto-isolated
(Current source type)
100mA (Max.)
Relay Module
Model Input Output Power Consumption Connectors Controller series

CPS-RRY-4PCC
4-ch
Relay contact output (1 pair of Form c contacts)
100mA (Max.) Screw terminal block
(50.8mm/0.2″ pitch)

CTR

GW

PAC

EG

Counter Module
Model Input Output Power Consumption Connectors Controller series

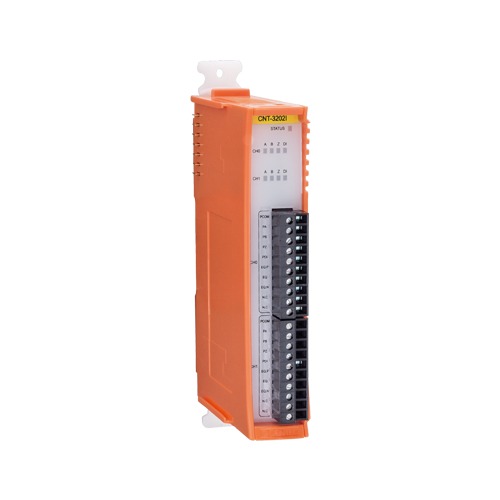

CPS-CNT-3202I Phase A/Up 1×2ch
Phase B/Down 1×2ch
Phase Z/CIR 1×2ch
General input 1×2ch
Optocoupler isolated between channels
Match signal output 1×2ch
(Opto-isolated open-collector output)
100mA (Max.) Screw terminal block
(3.81mm/0.15″ pitch)

CTR

GW

PAC

EG

Serial Communication Modules
Model Transmission Scheme No. of CH / Isolation Power Consumption Connectors Controller series

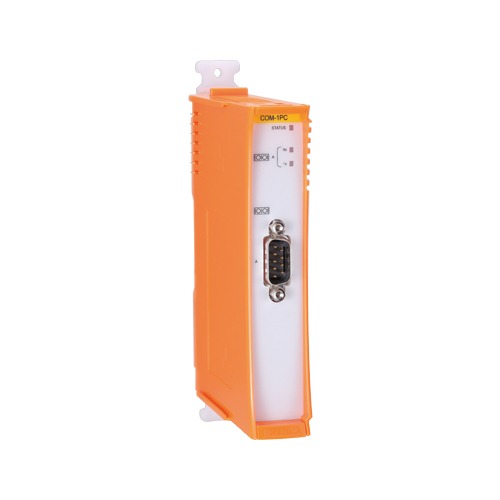

CPS-COM-1PC
RS-232C
Asynchronous serial transmission
1ch / Bus isolated 100mA (Max.) 9-pin
D-SUB connector(s)

CTR

GW

PAC

EG

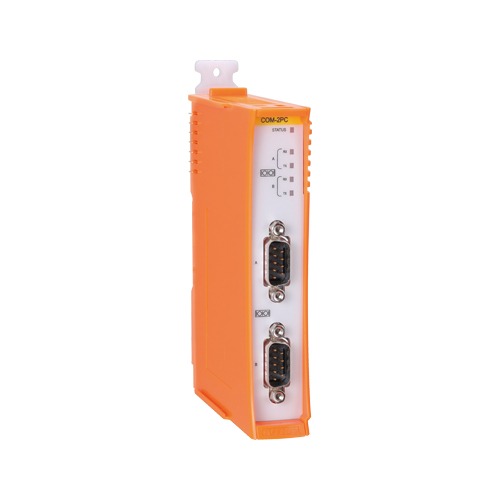

CPS-COM-2PC
2ch / Bus isolated
Isolated between channels
200mA (Max.)

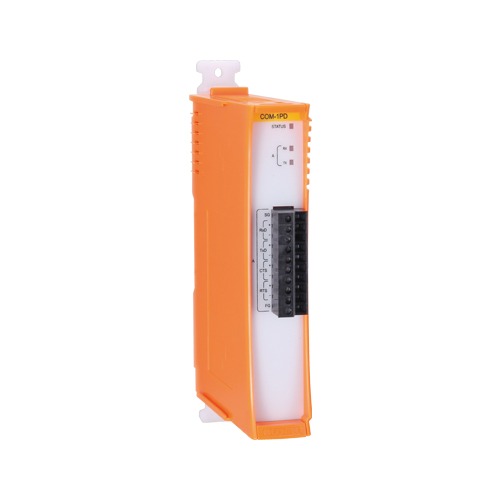

CPS-COM-1PD
RS-422A / RS-485
Asynchronous serial transmission
(Full duplex / Half duplex)
1ch / Bus isolated 200mA (Max.) Screw terminal block
(3.81mm/0.15″ pitch)

CPS-COM-2PD
2ch / Bus isolated
Isolated between channels
200mA (Max.)
LoRa Communication Modules
Model Wireless System Frequency band /
Modulation method
No. of Channels Power
Consumption
Connectors Controller
series

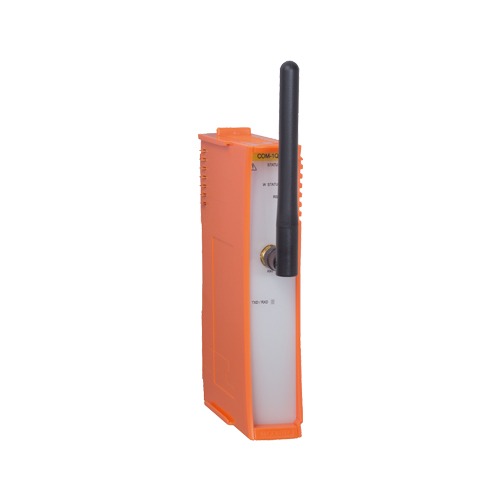

CPS-COM-1QL(Japan only)
ARIB STD-T108 920.6 to 923.4MHz
LoRa
(Spread Spectrum)
15ch (at 62.5 and 125kHz bandwidth)
7ch (at 250kHz bandwidth)
5ch (at 500kHz bandwidth)
100mA (Max.) SMA connector

CTR

GW

*24VDC power is supplied by the controller to the attached I/O modules via the internal bus.

Insulation Deterioration Monitoring Module for Three Phase Induction Motor + ZCT Sensor
Model The Measured Circuit No. of
measured
circuit
Inner
diameter
of ZCT
Measurement
voltage range
Measurement leakage current range
(Resolution: 0.001mA)
Measured
insulation
resistance range
Controller
series

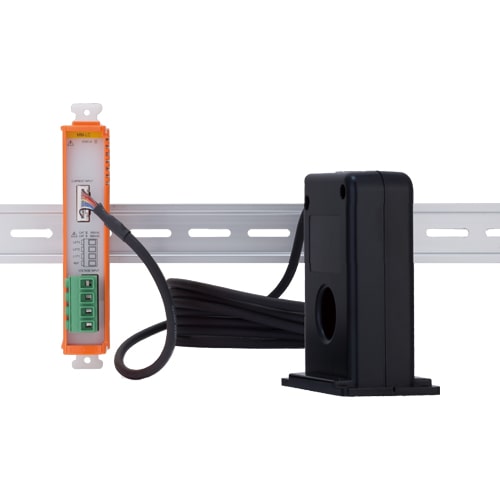

CPS-MM-LC Overall equipment measurement
(power supply mode) / Inverter output
section measurement (inverter mode)
1ch Φ25mm
(Φ0.98”)
Line voltage
10VAC or more,
600VAC or less
Overall equipment measurement:
0 to less than 1A
Inverter output section measurement:
0 to less than 100mA
Less than 1,000MΩ*

CTR

GW

*The guaranteed accuracy range is less than 10MΩ

Options
Power Supplies
Model Input Output Physical
Dimensions(mm)
Mount Method Support Products
CPS-PWD-15AW12-01 85 to 264VAC 12VDC、
1.3A (Max.)
39.0(W)×80.0(D)×79.0(H)
(1.54″x3.15″x3.11″)
(does not include protrusions)
Mountable to a 35mm DIN rail Integrated type controllers
CPS-PWD-30AW24-01 24VDC、
1.3A (Max.)
22.5(W)×75.0(D)×90.0(H)
(0.89″x2.95″x3.54″)
(does not include protrusions)
Configurable type controllers
CPS-PWD-90AW24-01 24VDC、
3.8A (Max.)
50.0(W)×90.0(D)×90.0(H)
(1.97″x3.54″x3.54″)
(does not include protrusions)

*A DC cable and a 3-pin I/O connector are included.
*AC power cable is not included. An optional AC power cable is available from Contec (IPC-ACC0DE3).

AC Power Cable
Model Rating Cable Length Terminals Support Product
IPC-ACCODE3 125VAC 7A 2m 3-pole round terminal Power supplies
IO-Link Master
Model Supported protocols No. of CH Specification

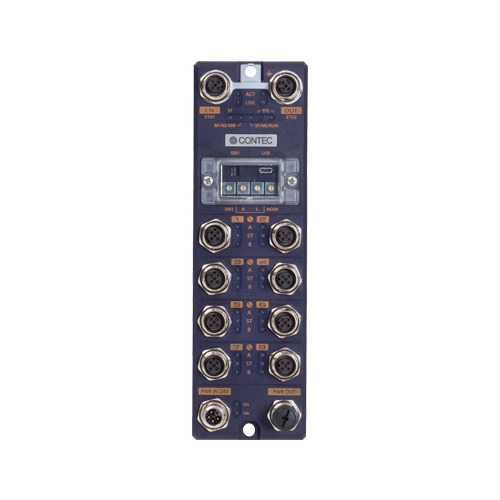

CPSL-08P1EN
CC-Link IE Field Basic
EtherNet/IP
Modbus TCP
PROFINET
EtherCAT
OPC UA server
8ch IP67 compliant
Roof Top Antenna
Model frequency band Cable Length Antenna Gain Physical
Dimensions(mm)
Support Products
CPS-ANT-R3-01 800MHz band
920MHz band
2.1GHz band
3m 800MHz band: 3.88dBi
920MHz band: 3.02dBi
2.1GHz band: 3.76dBi
(Don’t include cable loss)
42.0(W)×42.0(D)×93.0(H)
(1.65″x1.65″x3.66″)
(Not including protrusions and cable)
920MHz models
3G WAN models
4G LTE WAN models
Connection Cable for FANUC CNC
Model Cable Length Specification Support Products
CPS-CAB-S01-1 1m 20-pin to 9-pin conversion cable
(Software flow control, one touch lock type)
OPC UA server built-in models
CPS-CAB-S01-3 3m
CPS-CAB-S01-5 5m
Connection Cable for Mitsubishi Electric CNC
Model Cable Length Specification Support Products
CPS-CAB-S02-1 1m 20-pin to 9-pin x2 conversion cable
(Software flow control, one touch lock type)
OPC UA server built-in models
Magnet (for mounting)
Model Number Support Products
CPS-MAG01-4 Four Integrated type controllers
