M2M Controller Series

The M2M Controller Series consists of two types of controllers: a stand-alone integrated type and an I/O interface expandable configurable type. The system is adaptable to a wide variety of locations, wiring methods and number of I/O channels. You can build a custom control and monitoring system to meet your specific needs.

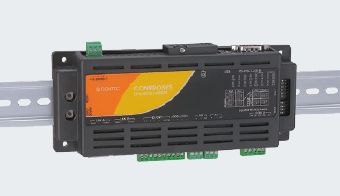

The integrated type offers a wide range of models with a variety of I/O interfaces and communication protocols.

Software Features

Hardware Features

• DIN rail or fixed mounting options available
• Embedded CPU
• Operating temperature range: -20 – 60°C (-4 – 140°F)
• Durable hardware reduces maintenance costs
• Daisy-chain connections do not required a HUB
• Physical dimensions: 188.0(W)×78.0(D)×30.5(H) mm (7.40″×3.07″×1.20″) (does not include protrusions and antenna)
• Power supply voltage: 12 – 24 VDC

OPC UA Server Built-In Model

CPS-MC341-ADSC1-931

OPC UA server is built-in the firmware.
It can directly communicates with an Information network without a bridge PC.

CNC Communication

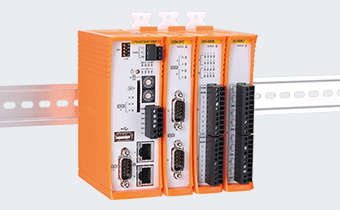

The configurable type allows users to add a variety of I/O modules to a CPU controller providing ultimate flexibility.

Software Features

Hardware Features

• Expandable design

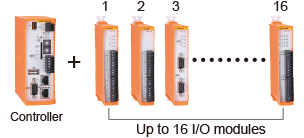

• Capable of supporting up to 16 I/O modules on a single controller
• DIN rail mountable
• Embedded CPU
• Operating temperature range: -20 to 60°C (-4 to 140°F)
• Durable hardware reduces maintenance costs
• Daisy-chain connections do not required a HUB
• Physical dimensions: 44.7(W)×94.7(D)×124.8(H) mm (1.76″×3.83″×4.91″) (does not include protrusions and antenna)
• Power supply voltage: 24 VDC

OPC UA Server Built-In Model

CNC Communication
