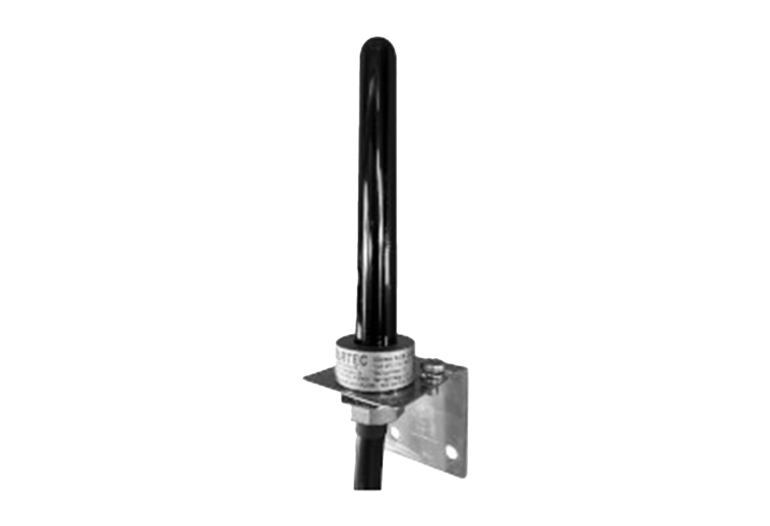

Xbeam™ A EX 2.4GHz & 5.0GHz

Antenna for 2.4GHz & 5.0GHz wireless networks in Zone 1
ANTD**
  • Wi-Fi
  • WLAN
  • ZIGBEE
  • Other 2.4 GHz and 5 GHz applications
Request Quote


    Email Verification Code (required)



    Category:
    Description
    Technical Data
    Manuals/Operating Instructions/Guides
    Declarations
    Data Sheets

    The Xbeam™ A EX is an ATEX and IECEx approved RF antenna for creating wireless networks (typically Wi-Fi) and wireless telemetry systems in hazardous area. The antenna is not limited to a specific network protocol and can be used for any 2.4GHz and 5.0GHz application. The antenna is optimized for use in steel and concrete structure environments where multipath effects and reflections are present.The Xbeam A EX is a preferred solution where the access point/radio can be placed in safe zone or safe area and where cable length does not exceed 30 meters. The antenna can also be used with Ex e, Ex d or Ex p solutions.

    Marking

    ATEX:II 2 G Ex eb IIC T6 GbII 2 D Ex tb IIIC T85°C Db

    IECEx:Ex eb IIC T6 GbEx tb IIIC T85°C Db

    Ambient Temperature

    -40°C ≤ Ta ≤ +60°C

    Certification

    Technical Data

    Compatibility 802.11a/b/g/n
    Frequency 2.4GHz and 5GHz or 2.4-5.8GHz
    Polarization Vertical
    Max input voltage 20 V (EX limitation)
    Max input power 2 Watts (EX limitation)
    Height 140 mm
    180 mm incl. bracket
    Width, diameter Ø 30 mm
    45 mm incl. bracket
    Mounting method Wall/mast bracket
    Weight, incl bracket 100 g
    Ingress protection IP66/IP67

    Manuals/Operating Instructions/Guides

      Installation instruction Xbeam A EX

    Declarations

      EU – Declaration of Conformity – Xbeam A EX
      UK-Declaration of Conformity – Xbeam A EX

    Data Sheets

      Data Sheet – Xbeam A EX
