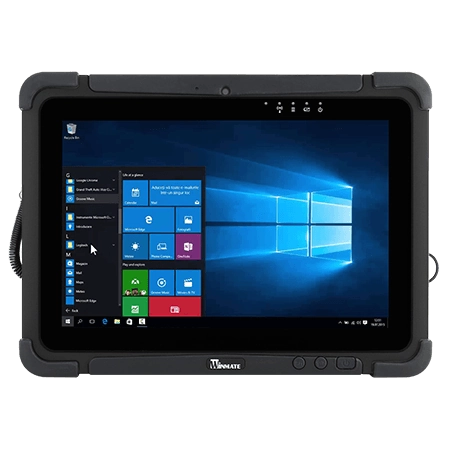

Product-M101S-EX-F-L4-O-202302151511030Product-M101S-EX-F-L4-O-202302151511030

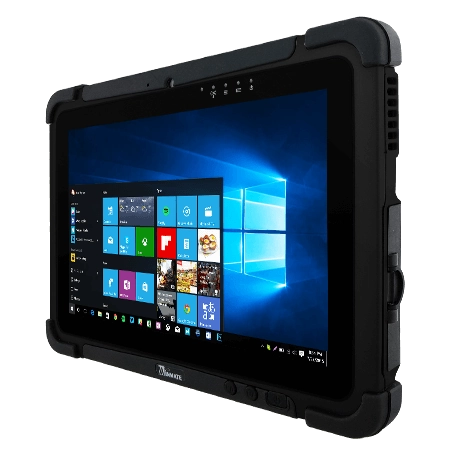

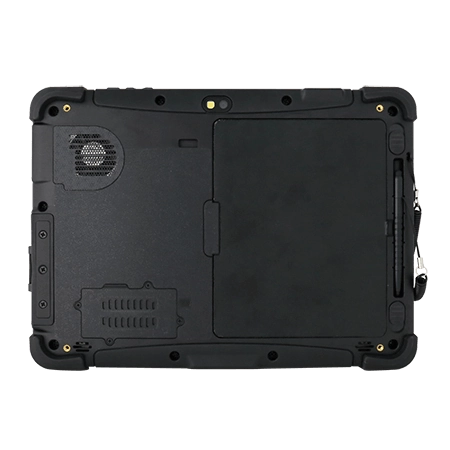

Winmate M101AD-EX ATEX Rugged Tablet

The M101 series is designed to be invincible, yet light enough to carry around. The M101AD-EX rugged tablet is the ATEX certified model in the series, with incredible performance, long battery life and durability in harshest conditions.

Data Sheet

Request Quote


    Email Verification Code (required)



    Category:
    Description
    Additional Features
    KEY FEATURES
    • Intel® Core™ i5-1235U Alder Lake processor
    • 10.1” 1920 x 1200 IPS LED Panel with direct optical bonding
    • Sunlight readable with antiglare solution
    • Allows cross-zone operations in hazardous and explosive environments
    • Ex Certificate: Class I Division 2 (CID2), ATEX/IECEx Zone 2
    • USB Type C port support PD 3.0 and ALT mode

    DISPLAY

    Size 10.1″
    Brightness 800
    Resolution 1920×1200
    Contrast Ratio 800:1
    Touch Mode Touch Mode
    Touch Projected Capacitive Multi Touch
    Bonding Optical Bonding for Sunlight Viewability
    Viewability Anti­Glare touch treatment

    SYSTEM



    Processor Intel Core i5-7200U Kaby Lake 2.5GHz (turbo 3.1GHz)
    Storage 256GB SSD
    Additional storage available with micro SDXC card slot
    512GB SSD (Optional)
    Memory 8GB DDR4 SDRAM
    Security Trusted Platform Module (TPM) 2.0
    Kensington Lock
    Operating System Windows 10 IoT Enterprise (64 bit)
    BT Bluetooth Support
    GNSS GPS, GLONASS
    WLAN 802.11 a/b/g/n/ac
    WWAN 4G LTE (Optional)
    Sensors Light sensor/ g­sensor / Gyro



    CAMERAS

    Front 2MP Camera
    Rear 8MP Rear Camera with auto­focus and LED light

    MECHANICAL

    Dimensions 271 x 197 x 21 mm
    Net Weight (kg) 1.25 Kg
    Cooling Fan

    IO PORTS

    USB Ports

    1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In and ALT mode)

    SD Card Slot 1 x Micro SDXC slot
    SIM Card Slot 1 x Nano SIM card slot
    LAN 1 x RJ45-10/100/1000 GigaLAN port
    Audio 1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out)
    Dual Mic Built­ in Microphone
    Single Speaker
    Docking Connector 1 x 19­pin docking connector
    Indicator 4x LED Indicator for Power, Battery, HDD, RF status

    ENVIRONMENT

    Operating Humidity 10% to 90% RH, non­condensing
    Operating Temperature 10°C to 50°C
    Storage Temperature ­30°C to 70°C (­22°F to 158°F)
    Shock MIL­STD­810G Method 516.8 Procedure I
    Vibration MIL­STD­810G Method 514.8 Procedure I
    Drop MIL­STD­810G Method 516.8, 4 ft
    IP rating IP65 certified, dustproof and waterproof
    Certification CE, FCC
    Hazardous Location Safety:
    IECEx Class I, Zone 2, Ex ic IIC T4 Gc
    ATEX Class I, Zone 2, II 3G Ex ic IIC T4 Gc
    Class I, Division 2, Groups A, B, C, D, T4

    CONTROL

    Button 1 x Power, 1 x Home
    2 x volume key
    2 x Programmable function Keys

    POWER

    Battery Hot-swappable 11.55V, typ. 4558 mAh Li-Polymer Battery (3S2P)
    Power Rating 12-19VDC
    Battery Operating Time Standard. Battery: 8 hours
    Adapter 100­-240V, 50­-60Hz / 19V DC

    ACCESSORIES

    Standard
    Optional
    Adapter and Power Cord
    Capacitive Stylus
    Standard Battery
    Desk Dock (Optional)
    Vehicle Dock (without VGA output) (Optional)
    Vehicle Cradle (Optional)
    Vehicle Charger (Optional)
    High Capacity Battery (Optional)
    Battery Charger (Optional)
    Hand Strap (Optional)
    Shoulder Strap (Optional)
    Carry Bag (Optional)

    Barcode Scanner

    Barcode Scanner

    1D/2D Barcode reader (optional)

    Hardware scan engine

    Or

    mobXscan software scanner using camera

    Additional Features

    Certified for Safe Operations in Hazardous Zones

    The M101AD-EX Rugged Tablet is designed to function safely in hazardous and explosive environments. It holds the Ex Certificate for Class I Division 2 (CID2) and ATEX/IECEx Zone 2.This certification ensures the tablet can be used confidently across different hazardous zones.

    Outstanding Sunlight Visibility with Anti-Glare Technology

    The M101AD-EX Rugged Tablet offers exceptional visibility both indoors and outdoors. Its 10.1″ IPS LED panel, paired with a 1920 x 1200 resolution, delivers sharp and clear images. With optical bonding and an anti-glare
    touch treatment, you get a superior viewing experience in any lighting condition.

    Enhance Efficiency with Real-Time Data Streaming
    The M101AD-EX Rugged Tablet delivers real-time data streaming for immediate feedback to your management system. Combined with an Intel processor, optional Barcode and RFID readers, and comprehensive connectivity
    options like BT, WIFI, LTE, 5G, and GigaLAN, it ensures your operations run smoothly and efficiently.

    Advanced Multi-Touch Experience

    The M101AD-EX Rugged Tablet delivers a smooth and responsive touch experience with its Projected Capacitive (P-CAP) Multi-Touch screen. It’s designed to support various touch modes, including rain, glove, and stylus
    modes. This versatility ensures reliable performance in different environments and conditions.

    Built Tough for Industrial Mobility

    The M101AD-EX Rugged Tablet is engineered to withstand extreme temperatures, drops, shocks, and vibrations. It’s designed for industrial use and meets the MIL-STD-810H standards, making it resilient in challenging environments.
