Convenient size for easy use by Clinical and Healthcare workers to aid data recording and guidance

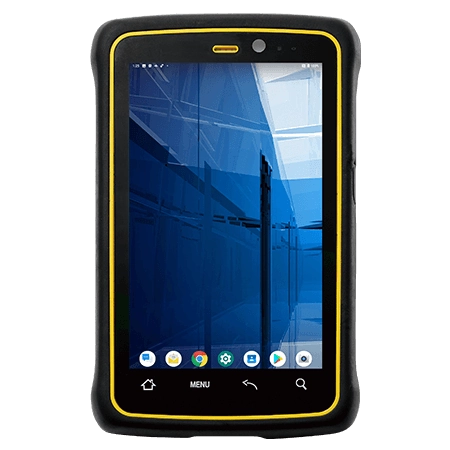

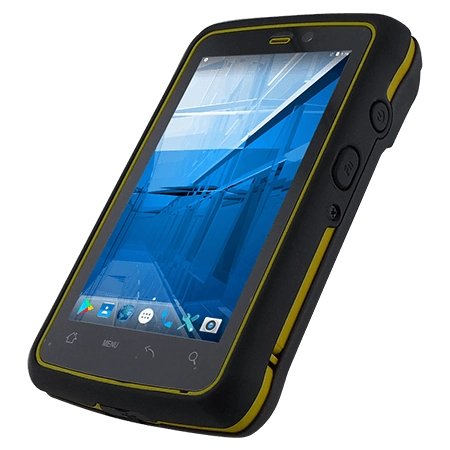

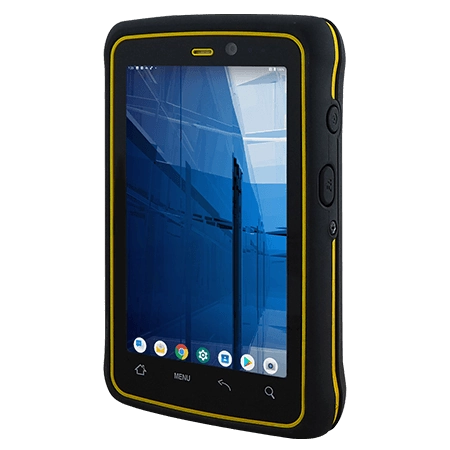

Winmate’s E430 Series Rugged Mobile Computer is an enterprise-class Rugged Mobile Computer with powerful mobile computing solution. The E430 Series Rugged Mobile Computer brings a new level of flexibility, functionality and rugged design to pocket-sized mobile devices, providing task workers and managers with the power to streamline business processes, increasing productivity and improving customer service.
The E430 packs WLAN, Bluetooth, GPS, and WWAN function – all into a single device. With great mutiple wireless communicate design, this product will be applicable to mobile worker, business application, and IT requirements.
| Size | 4.3″ |
| Brightness | 400 (typical) |
| Resolution | 480 x 800 |
| Contrast Ratio | 800:1 (typical) |
| Touch | Projected Capacitive Multi-touch |
| Processor | Qualcomm® Snapdragon™ 660 (OctaCore 2.2 GHz) |
| Memory | 3GB SDRAM |
| Storage | 32GB |
| Audio |
1 x Built-in Mic, 1 x Earphone, 1 x Speaker
|
| WLAN | Support 802.11 a/b/g/n/ac |
| Bluetooth | Support |
| GPS | Built-in GPS module |
| RFID | NFC (Read / Write, Peer to Peer mode) (Optional) |
| Control Button |
1 x Volume – + 1 x Power button 1 x Function button 4 x Capactive buttons:Home/ Menu/ ESC/ Search functions |
| LED indicator | 1 x LED indicator |
| Dimensions (W x L x H) | 132.57 x 81.87 x 27.4 mm |
| Operating Temperature | -10 deg.C to 50 deg.C (Battery Mode) |
| IP Proof | IP65 |
| Certifications | CE, FCC, CCC |
| Gross Weight(kg) | 260g |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6, 4 ft, Free to concrete |
| Battery | 3.7V 3900mAh Li-poly removable battery |
| Adapter | 5V/1A , USB Adapter |
| Battery Operating Time | 20 hrs ** |
| OS | Android 9.0 |
| Barcode | 1D/2D Barcode Reader (optional) |
Standard |
Optional |
| Universal Adapter USB Type-C Cable Battery Hand Strap |
Charging Dock 2 bay Charging Dock 6 bay Battery Charging Dock 2 bay Battery Charging Dock 6 bay Vehicle Charging Dock Battery Leather Holster Lanyard Micro SD Card |
Gain high efficiency and versatility with the E430RQ8 Rugged Tablet equipped with Qualcomm® Snapdragon™ 660 Octa-core processor that delivers stable performance at a higher power level efficiency.

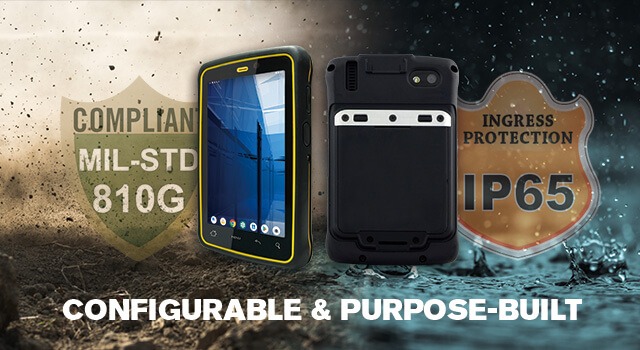

Sealed to IP65, the E430RQ8 rugged mobile computer is built to withstand harsh environments protect against water and dust. Compliant with MIL-STD-810G, it can operate in extreme temperatures ranging from -10°C to 50°C and endure shock, vibration, and five ft. drops.

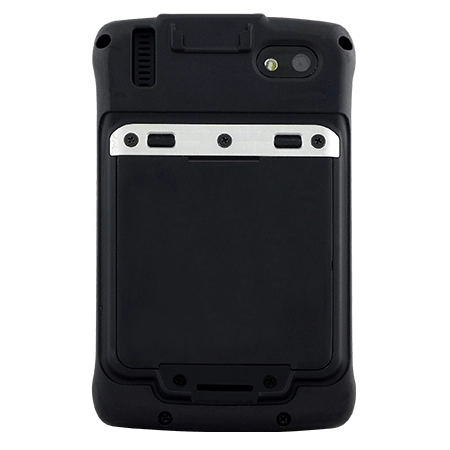

Real-time data access to the right information is crucial for mobile workers. The E430RQ8 offers WLAN and BT functions to enable robust communications anytime and anywhere. With a built-in 13 MP camera on the rear side, users can instantly capture photos, videos, and documents or utilize the front 8 MP camera for self-video recording or video communications applications.
With a built-in optional 1D/2D barcode reader, 13 MP rear, and 8MP front camera for data collection, the E430RQ8 with touch screen suits modern mobile workers and business applications and meets the IT requirements.
