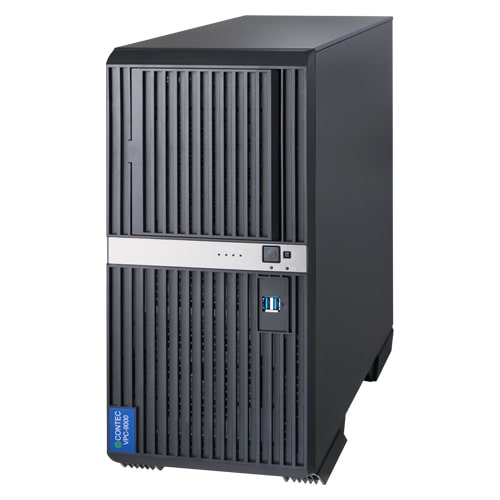

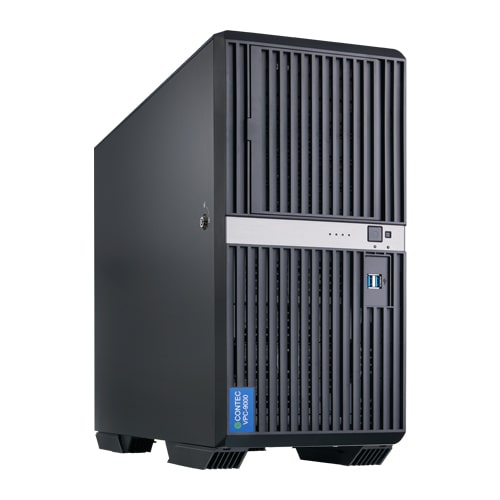

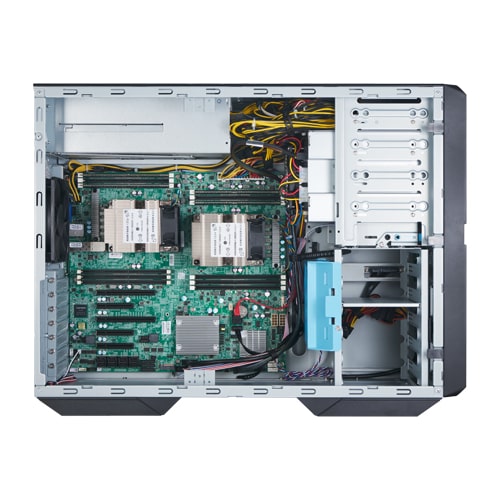

VPC-9000 is designed for server grade high performance industrial computer with dual Intel® 2nd generation Xeon® Processors. It is equipped with Dual CPU up to 20 cores, with 2 slots PCIe x 16, and 3 slots PCIe x8. It’s full tower type factory automation computer with high reliability, long life components, availability and maintainability based on 24-hours operation.
Intel® Xeon® processors with error-correcting code (ECC) memory help safeguard your important data by automatically finding and fixing soft memory errors. The reasons why ECC memory be widely used in serversystem is not because its performance but error-correction capability which keep server stable.
The product offers up to 4 hot-swappable hardware RAID configurations and a choice of 1600W Redundant power supply units (CRPS) for high-end GPU boards. Furthermore, the advanced edge computing environment for Image processing, Machine vision, AI / Deep Learning and more is provided.
Machine vision
Vision processing
AI / Deep Learning
Automatic Optical Inspection

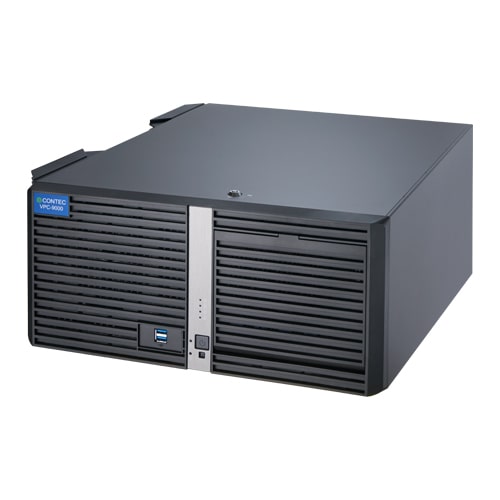

| Mounting | Desktop |
|---|
| Supported OS | Windows 10 IoT Enterprise 2019 LTSC 64-bit; Windows Server IoT 2019 Standard |
|---|
| CPU Generation (Development code) | |
|---|---|
| Processor | Xeon Gold 6230; Xeon Silver 4210 |
| CPU socket | LGA3647 |
| Memory | up to 256GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on; Remote reset; Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0 |
| Video | 1x Analog RGB |
|---|---|
| LAN | 2x 10GbE |
| Wireless | – |
| Audio | – |

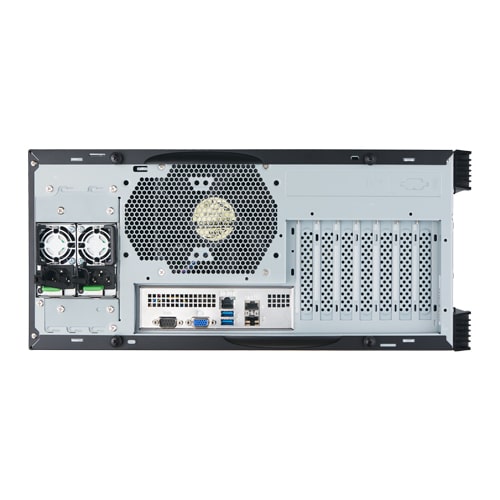

| I/O | 5x USB3.0 ; 1x RS-232C |
| Memory card | – |
| Expansion bus | 1x M.2 Key M (2242/2280); 2x PCI Express 3.0(x16); 3x PCI Express 3.0(x8) |
|---|---|

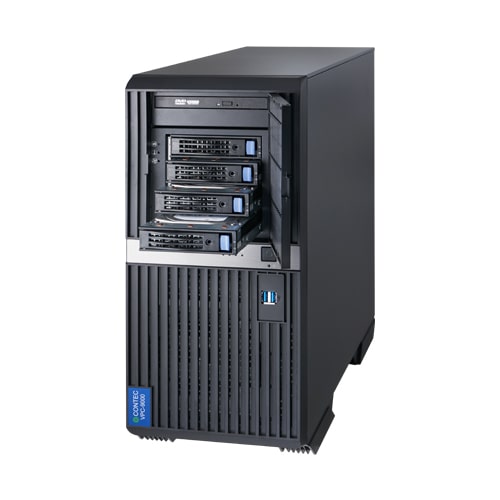

| Drive bay | 4x 3.5-inch bays (SATA) |
| Input voltage | 90 to 264VAC |
|---|
| Operating temperature | 5 to 40°C (41 to 104°F) |
|---|---|
| Storage temperature | -20 to 60°C (-4 to 140°F) |
| Standards & Certifications | CE; FCC Class A; VCCI Class A |
| Model | Description | Certification |
|---|---|---|
| VPC-9000-G | VPC-9000-G – Desktop/ Dual Intel® Xeon® Gold 6230, Silver 4210 (Cascade Lake-SP + C622) / 2x PCIe 3.0(x16), 3x PCIe 3.0(x8) / RAID |
|
This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation. *1
| Dual Xeon Processor |
|
|---|---|
| Memory |
|
| Storage 1(M.2) |
|
| Storage 2 ※2 |
|
| Storage 3 ※2※3 |
|
| Storage 4 ※2※3 |
|
| Storage 5 ※2※3 |
|
| Boot Drive |
|
| Optical drive |
|
| RAID |
|
| OS |
|
*1 There are combinations that can not be configured. Please inquire in detail.*2 Only the same model can be selected for the drives of storage 2-5.You cannot select a different model.*3 For RAID, storage 2-5, 3.5 inch HDD 4TB can be selected.
| Item | Item Name |
|---|---|
| HDD-4TS-3 | 3.5-inch 4TB SATA Hard Disk Drive |
| HDD-4TS-3R | 3.5-inch 4TB SATA Hard Disk Drive, RAID |
