VPC-5000-G_img1VPC-5000-G_img1

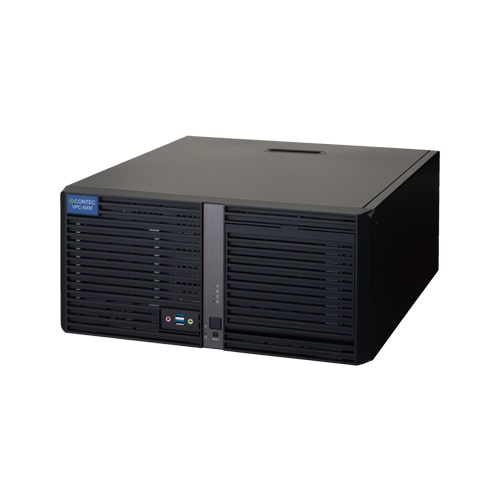

VPC-5000-G

  • High performance FA computer with Xeon processor compatible
  • Highly reliable and long life components based on 24-hour operation
  • Support Windows 10 IoT Enterprise LTSC and Windows Server IoT
  • Long-term product availability and maintenance

Data Sheet PDF

Request Quote


    Email Verification Code (required)



    SKU: VPC-5000-G Category: Tag: Brand:
    Description
    Specifications
    Ordering Informations
    Overview / Features

    This product is a BTO industrial computer that is equipped with Intel C246 chipset for server workstations. It can be equipped with an Intel Xeon E 2200-series or 9th generation Intel Core processor, up to 64 GB of ECC memory, up to 4 hot-swap hardware RAID configurations, and more.

    • High performance FA computer with Xeon processor compatible
      • Compatible with Intel® Xeon® E-2200 Processors or 9th generation Intel® Core® Processors. Up to 64GB of ECC memory can be installed. Applicable for transportation / social infrastructure / medical equipment / security / amusement and other fields requiring advanced multiple processing.
    • Highly reliable and long life components based on 24-hour operation

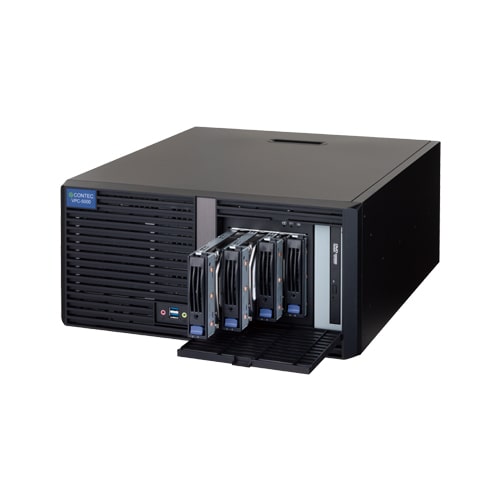

      • The product is designed for high reliability and longevity with the know-how of the Box computer®, which is synonymous with built-in PCs, in various places. Hot-swappable hardware RAID configurations enable a user to replace storage even when the system is running. It can be used with confidence in systems that require high availability.
    • Support Windows 10 IoT Enterprise LTSC and Windows Server IoT
      • The LTSC (Long Term Servicing Channel) version of Windows is installed to discourage unnecessary restarts or unwanted feature updates for operational applications. The product has a lockdown function that is useful for the developing secure dedicated terminals. A user can select a language from English, Chinese, Japanese, or Korean in Windows 10 IoT Enterprise 2019 LTSC, and can decide to use Windows Server IoT 2019, which is suitable for edge servers that require server-class multiple processing and network performance.
    • Long-term product availability and maintenance
      • In addition to longer-term product availability and maintenance services, a long-term on-site maintenance service is provided (for a fee). It reduces the life cycle costs for operation checks or device alterations/improvements each time PC model changes.

    Specifications

    Specifications
    Mechanical Design
    Mounting Desktop; Rack Mount
    Software Support
    Supported OS Windows 10 IoT Enterprise 2019 LTSC 64-bit; Windows Server 2016
    Core System
    CPU Generation (Development code) 9th Gen. (Coffee Lake R-S)
    Processor Xeon E-2278GE; Xeon E-2226GE; Core i3-9100E; Celeron G4900
    CPU socket LGA1151
    Memory up to 64GB
    RAS Hardware monitor (Fan speed / Temperature / Voltage); Remote power-on; Remote reset; Watchdog timer
    GPU –
    AI Performance –
    Security TCG TPM 2.0
    Interface
    Video 1x DisplayPort; 1x HDMI; 1x Analog RGB
    LAN 2x 1000BASE-T
    Wireless –
    Audio 1x Line out; 1x Line in; 1x Mic-in
    I/O 6x USB3.2 Gen1 (USB3.0); 2x USB2.0; 4x RS-232C; 1x RS-232C/422A/485
    Memory card –
    Expansion Slot
    Expansion bus 1x PCI Express(x16); 3x PCI Express(x4); 3x PCI
    Drive bay 4x 3.5-inch bays (SATA)
    Power
    Input voltage 100 to 240VAC
    Environment
    Operating temperature 5 to 40°C (41 to 104°F)
    Storage temperature -20 to 60°C (-4 to 140°F)
    Standards & Certifications FCC Class A; VCCI Class A

    Ordering Informations

    Ordering Information
    Model Description Certification
    VPC-5000-G Desktop PC / Rackmount PC / Intel 9th Gen. Xeon (Coffee Lake R + C246) / 1x PCIe(x16), 3x PCIe(x4), 3x PCI / RAID
    • FCC compliant
    • VCCI
    • *CE marking : Coming soon.
    BTO model

    This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation. *1

    CPU
    • Xeon E-2278GE
    • Xeon E-2226GE
    • Core i3-9100E
    • Celeron G4900
    Memory
    • 8GB
    • 16GB
    • 32GB
    • 64GB
    Storage 1
    • 3.5 inch HDD 2TB / Removable
    • 2.5 inch SSD 512GB / Removable
    • 2.5 inch SSD 256GB / Removable
    • None
    Storage 2 *2
    • 3.5 inch HDD 2TB / Removable
    • 2.5 inch SSD 512GB / Removable
    • 2.5 inch SSD 256GB / Removable
    • None
    Storage 3 *2
    • 3.5 inch HDD 2TB / Removable
    • 2.5 inch SSD 512GB / Removable
    • 2.5 inch SSD 256GB / Removable
    • None
    Storage 4 *2
    • 3.5 inch HDD 2TB / Removable
    • 2.5 inch SSD 512GB / Removable
    • 2.5 inch SSD 256GB / Removable
    • None
    Optical Drive
    • DVD super multi drive
    • None
    RAID
    • Software RAID (RAID1)
    • Hardware RAID (RAID1)
    • Hardware RAID (RAID5)*3
    • Hardware RAID (RAID10)*3
    • None
    OS
    • Windows 10 IoT Enterprise 2019 LTSC 64-bit (Chinese/English/Japanese/Korean)
    • Windows Server 2016 64-bit (English)
    • None

    *1 There are combinations that can not be configured. Please inquire in detail.*2 If needs to configure the RAID function, selects the same device for Storage 2, 3, and 4 as of Storage 1.

    Options
    Other Accessories
    Item Item Name
    VPC-5000-BKT Bracket for VPC-5000
